Semi-Auto Packing Machine

  • WF1000K Ton-Bag Packing Machine

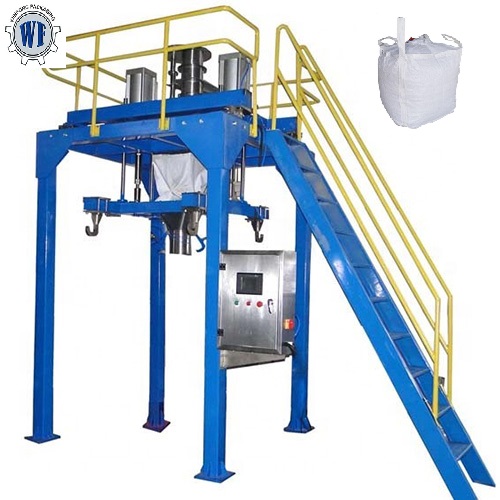

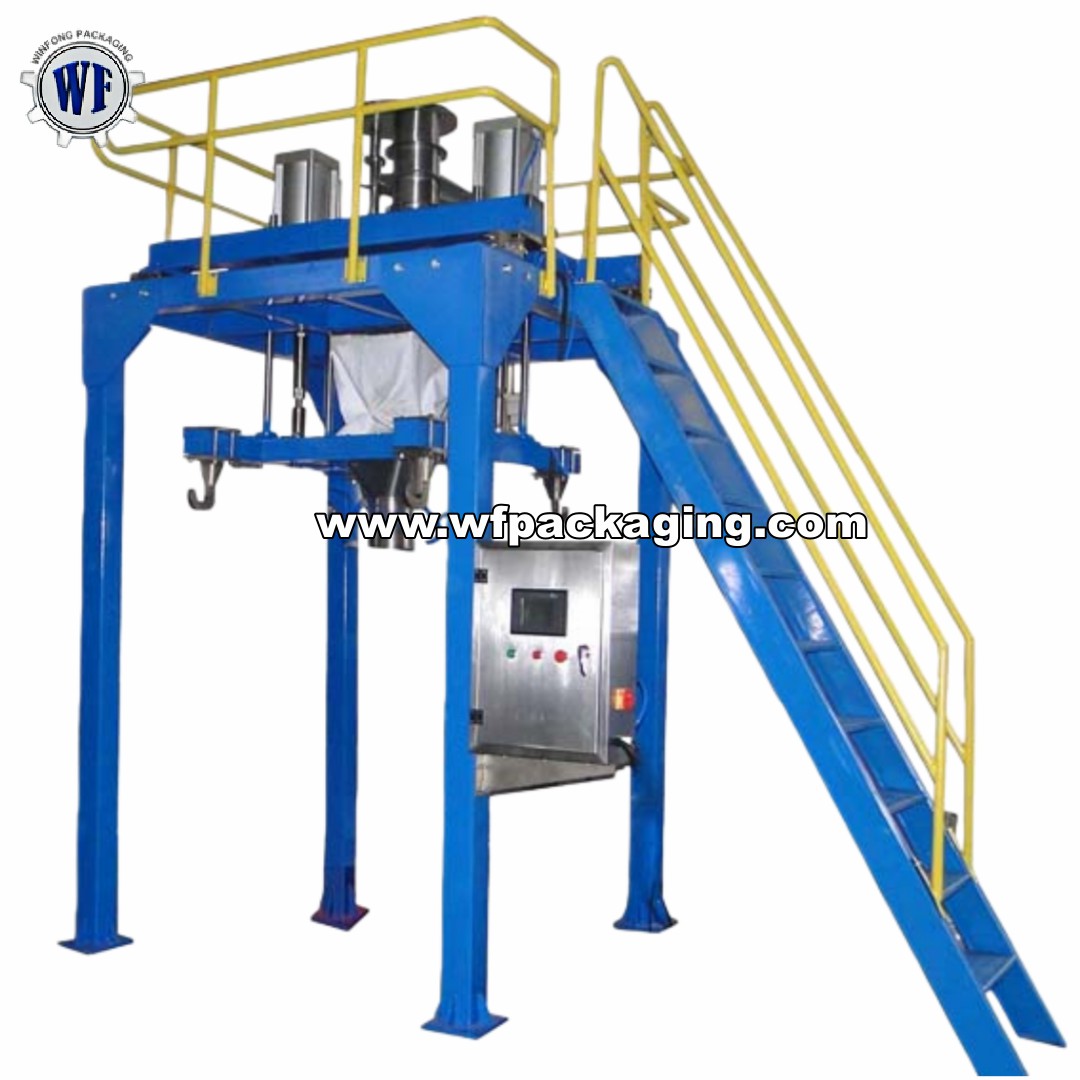

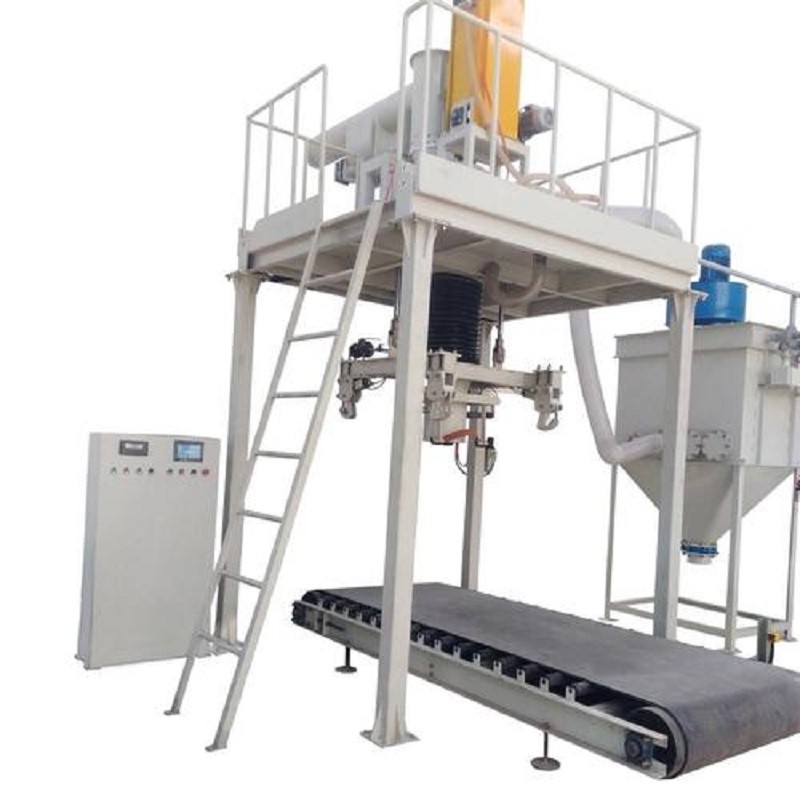

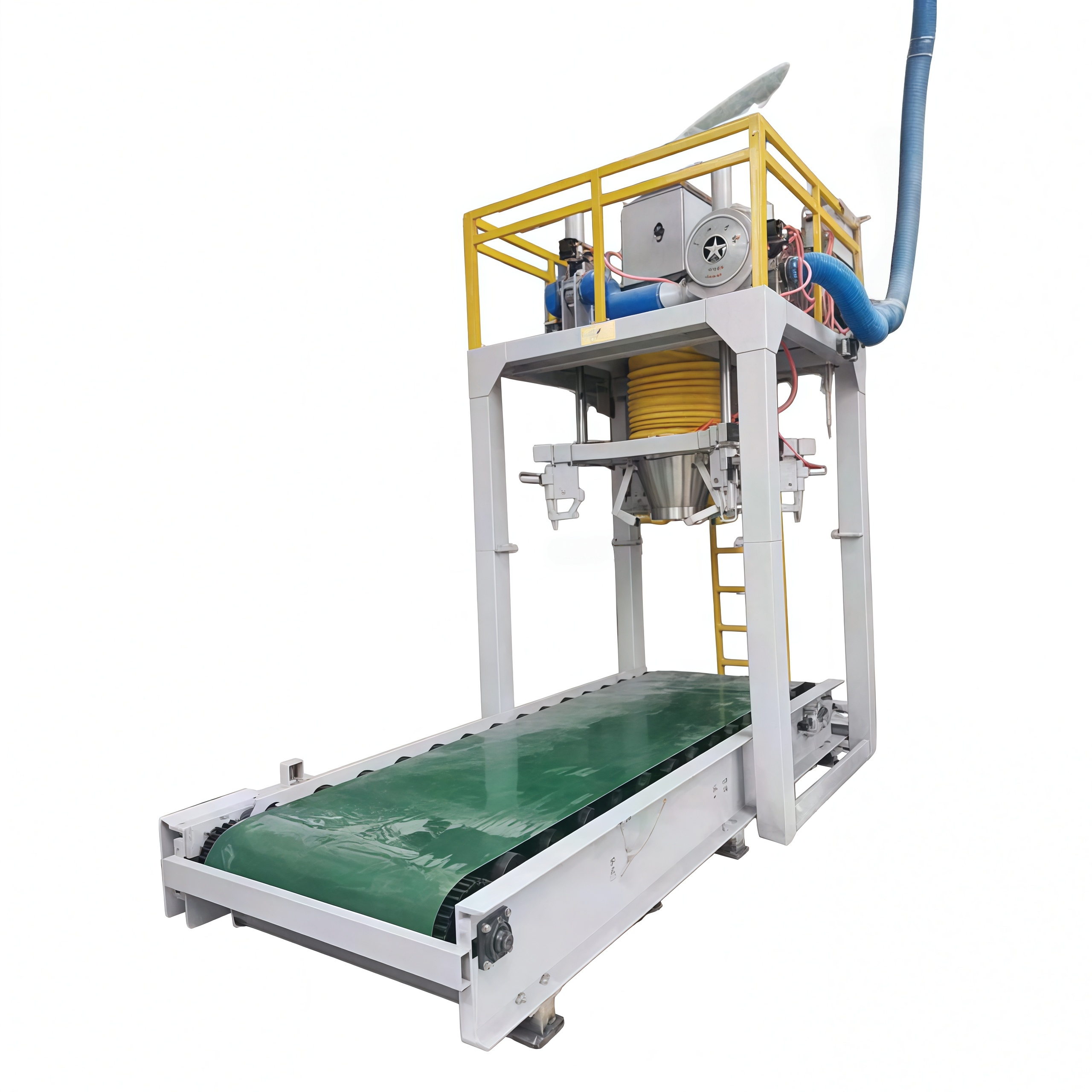

WF1000K Ton-Bag Packing Machine

WF1000K Ton-Bag Packing Machine

  • MOQ:1set
  • Original:China
  • Delivery time: 25 working days
  • Package:export standard wooden case
  • INQUIRY


  • Machine Introduction
  • The machine has a stable weighing controlling system which consists of high accuracy sensors(0.02%) and high resolution controlling meters. The feeding mechanism adopts two valves of different sizes to realize coarse feeding, slow feeding and accurate feeding. Weighing frame is connected to sensors and reflect weighing signal to electric box which controls the run of the whole machine. Electric trolly moves on the track back and forth and conveys packed products. The trolly's start and stop is controlled by operator and its final position is determined by two limit switches.


    Application:

    Solid

    candy, peanut, green bean, pistachio, brown sugar, cake, daily commodities, cooked food, pickles, puffed food etc.

    Granule

    grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts etc.

    Powder

    milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.

    Working Progress:

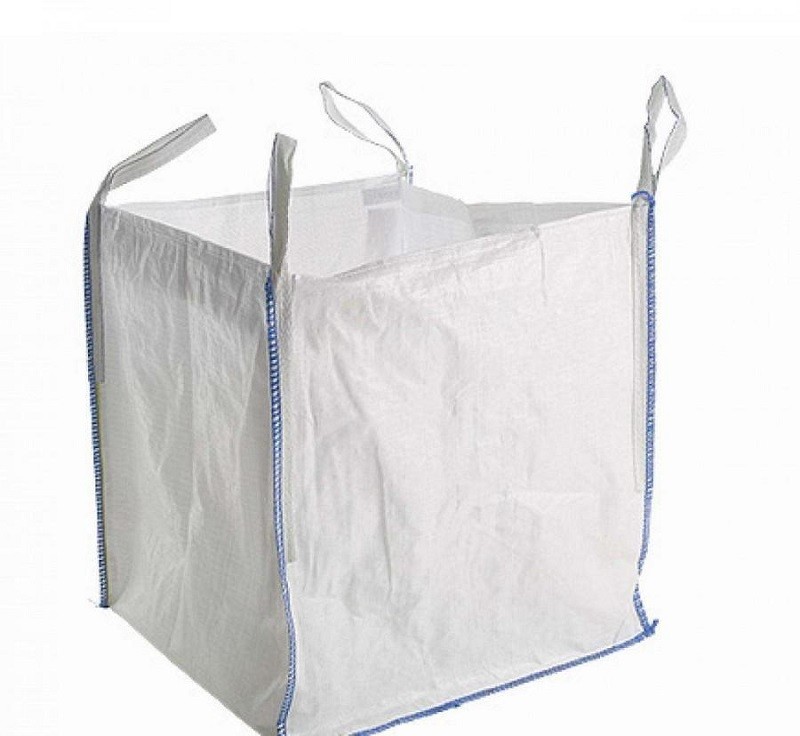

    a). Manual hang ton bag on the mounting ear;

    b). Manual press start button;

    c). The products will free fall in the ton bag and detected by the load cell, when reach target weight, filling stop;

    d). Manual take the bag down.

  • e). Electric trolly moves on the track back and forth and conveys packed products.

  • Technical Parameters

  • Contact parts

    SUS304

    Machine frame

    Carbon steel with paint

    Packing Form

    Bulk bag

    Packing weight

    500~1200kg

    Accuracy

    ±0.2%

    Air Supply

    0.4-0.6Mpa

    Air Consumption

    2m3/hour

    Powder supply

    AC380V,3P,50HZ,3KW

    External dimension

    L5200xW1800XH3500mm


    CONFIGURATION LIST

    NO

    PRODUCT

    BRAND

    QTY

    1

    Weighing control part

    (1) Stainless steel scale

    (2) Stainless steel sensor

    (3) Stainless steel junction box

    (4) Weighing operating instrument

    (5) Erecting by overhang

    (6) Hanging cylinder

    (7) Electric control cabinet


    GERMANY HBM

    WINFONG

    WINFONG

    WINFONG

    WINFONG

    SMC

    WINFONG


    1

    4

    1

    1

    1

    4

    1

    2

    Feeding control part

    (1) Feed solenoid pilot actuated valve

    (2) Feed cylinder

    (3) Stainless feed door

    (4) Bag-clamped solenoid pilot actuated valve

    (5) Bag-clamped cylinder

    (6) Bag-clamped part

    (7) PLC


    SMC

    SMC

    WINFONG

    WINFONG

    SMC

    WINFONG

    SIEMENS


    3

    1

    1

    2

    2

    1

    1

    3

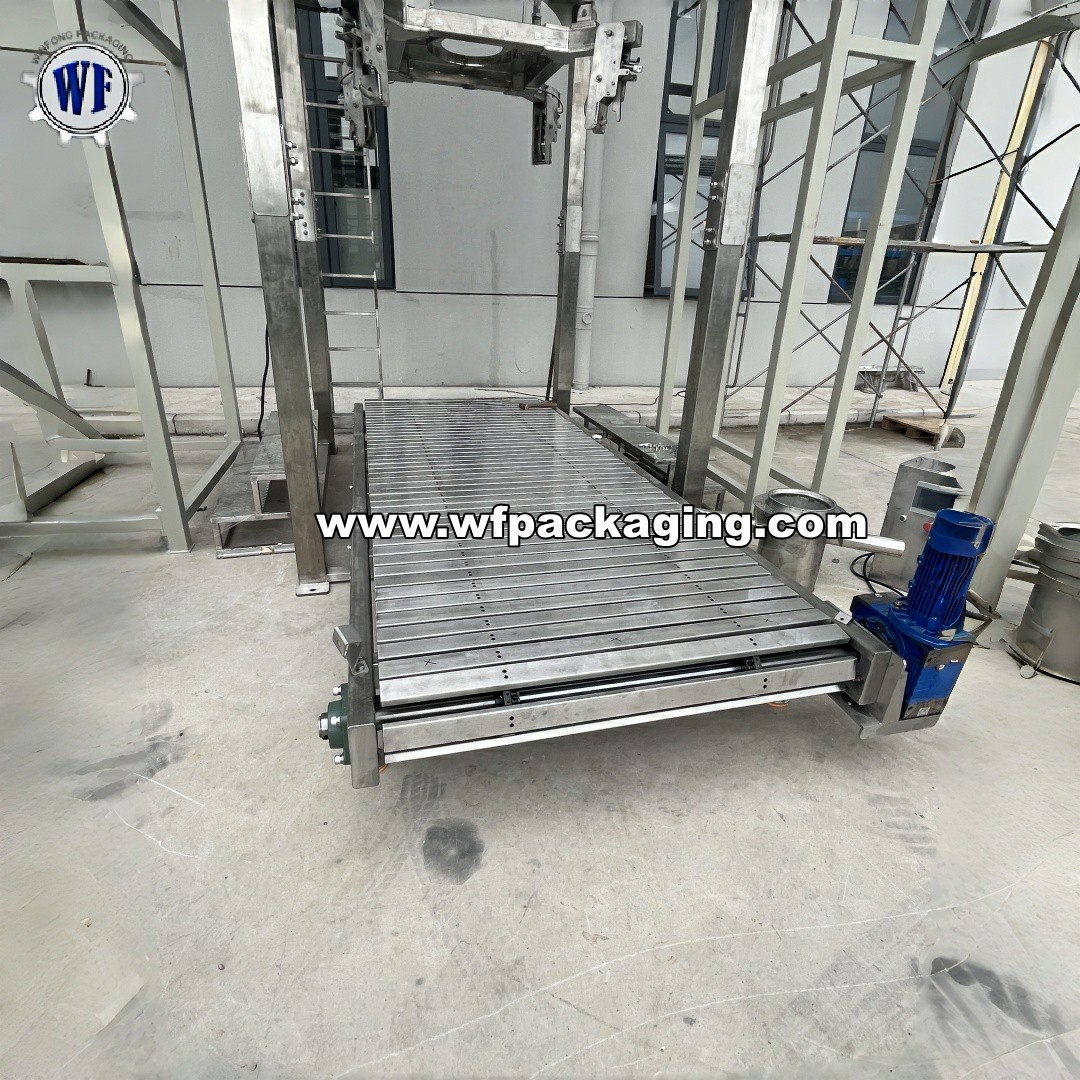

    Conveying control part

    (1) Stainless steel structural framing

    (2) Convey roller table

    (3) Reducing motor

    (4) Opto-electrical controlling system

    (5) Controlling cabinet


    WINFONG

    WINFONG

    CHINA

    OMRON

    WINFONG


    1

    1

    1

    1

    1
