Vacuum Packing Machine

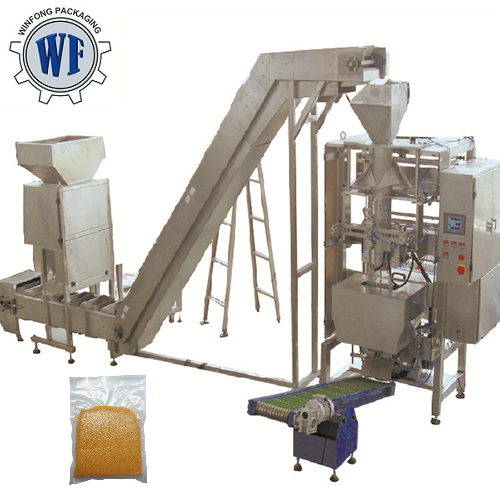

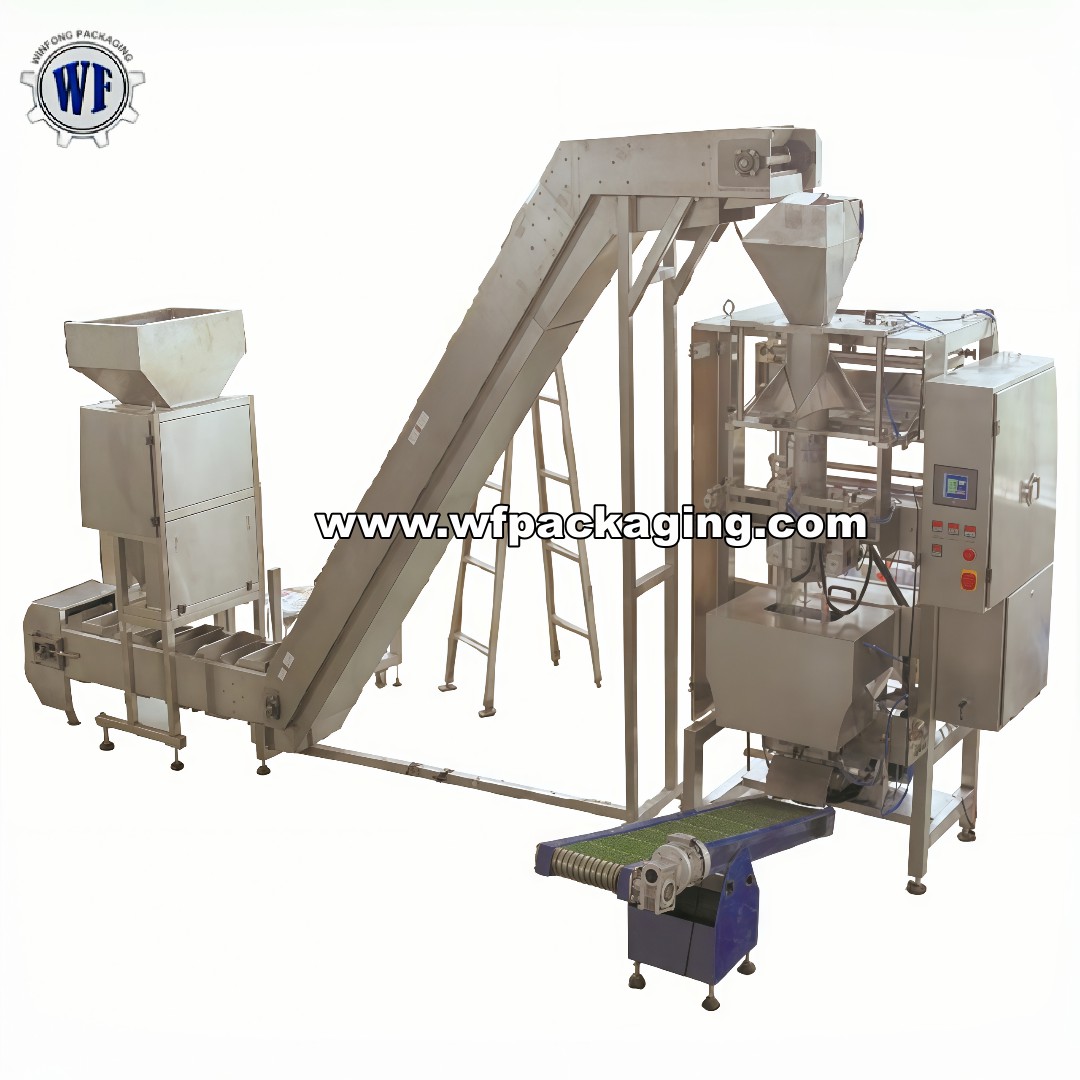

WF780 Automatic Pillow-bag Vacuum Packaging Machine
- MOQ:1set
- Original:China
- Delivery time: 25 working days
- Package:export standard wooden case
- Machine Introduction
-
Product Constitute：

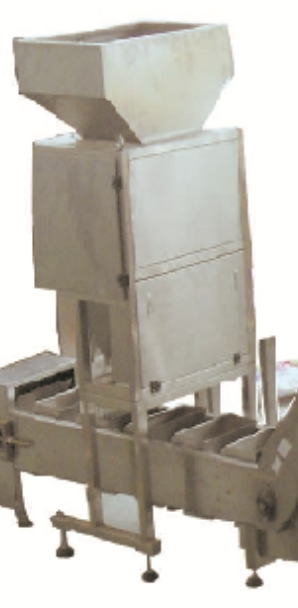

Linear weigher
Usage:auto weighing granule products
Application products: grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts, frozen food, detergent powder,etc.

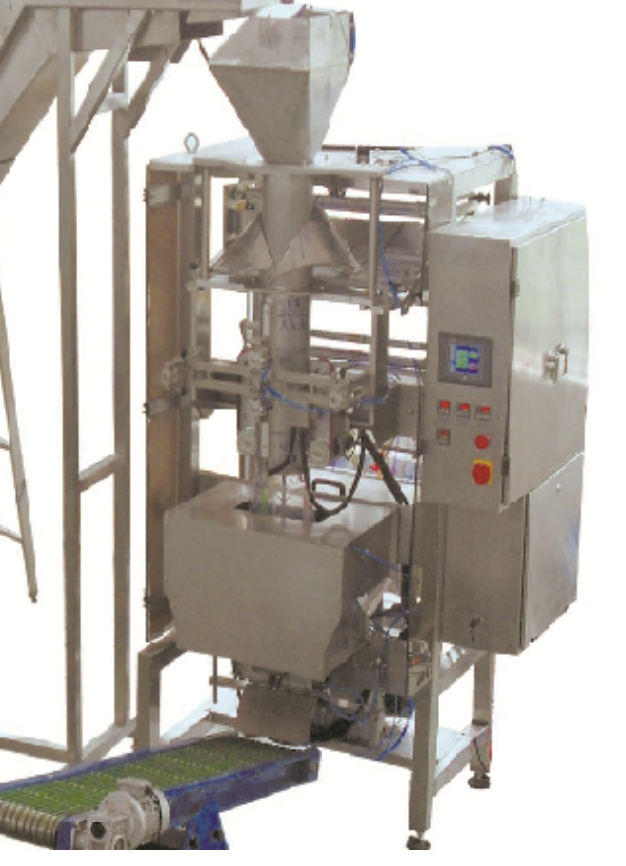

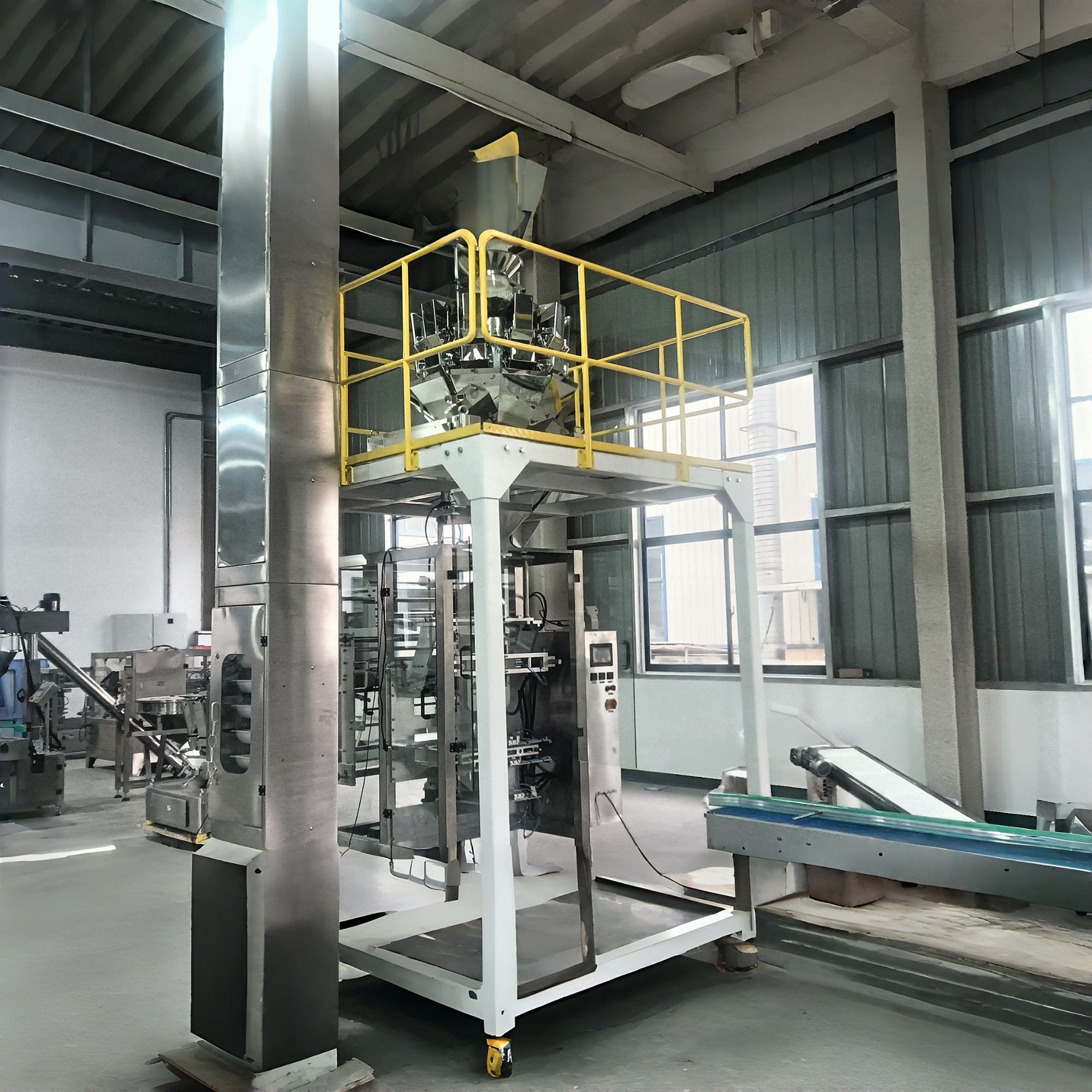

WF780 Automatic packaging machine
Machine fully controlled by Siemens or Omron PLC&Touch screen
Film transport system and horizontal jaw motion both be drived by Panasonic motor

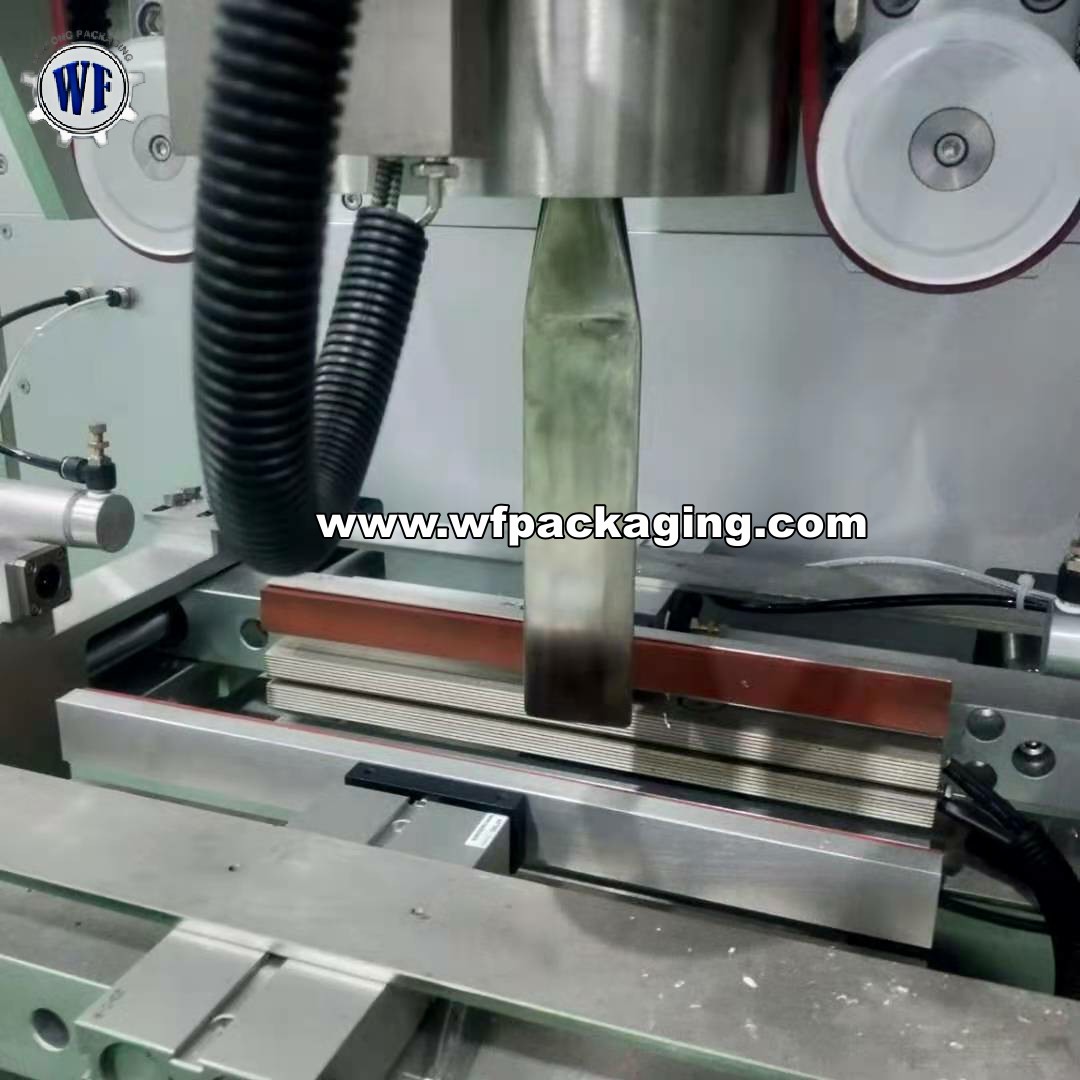

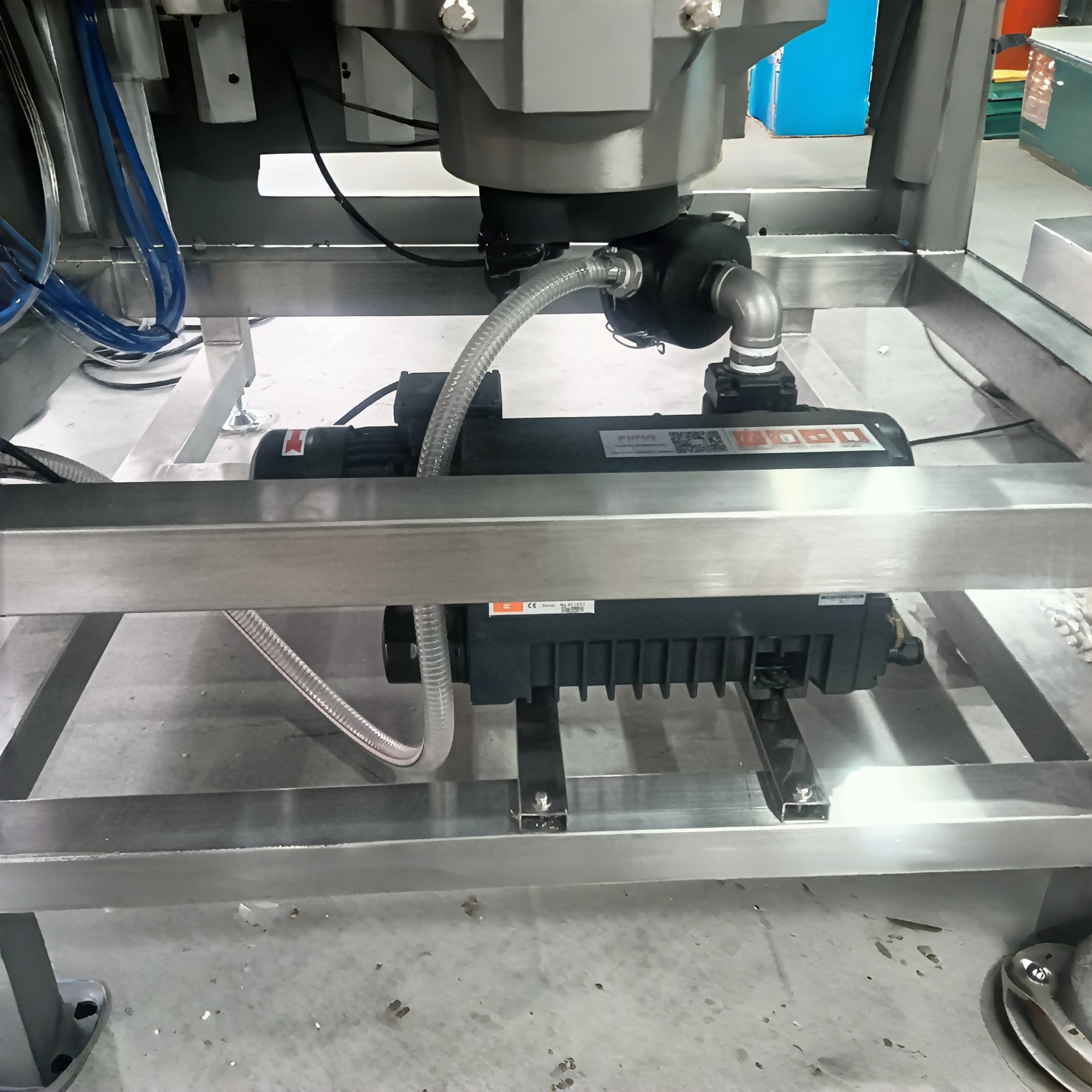

With vacuum pipe inside of the bags, controlled by vacuum pump for sucking the air out and then seal and cut the bag

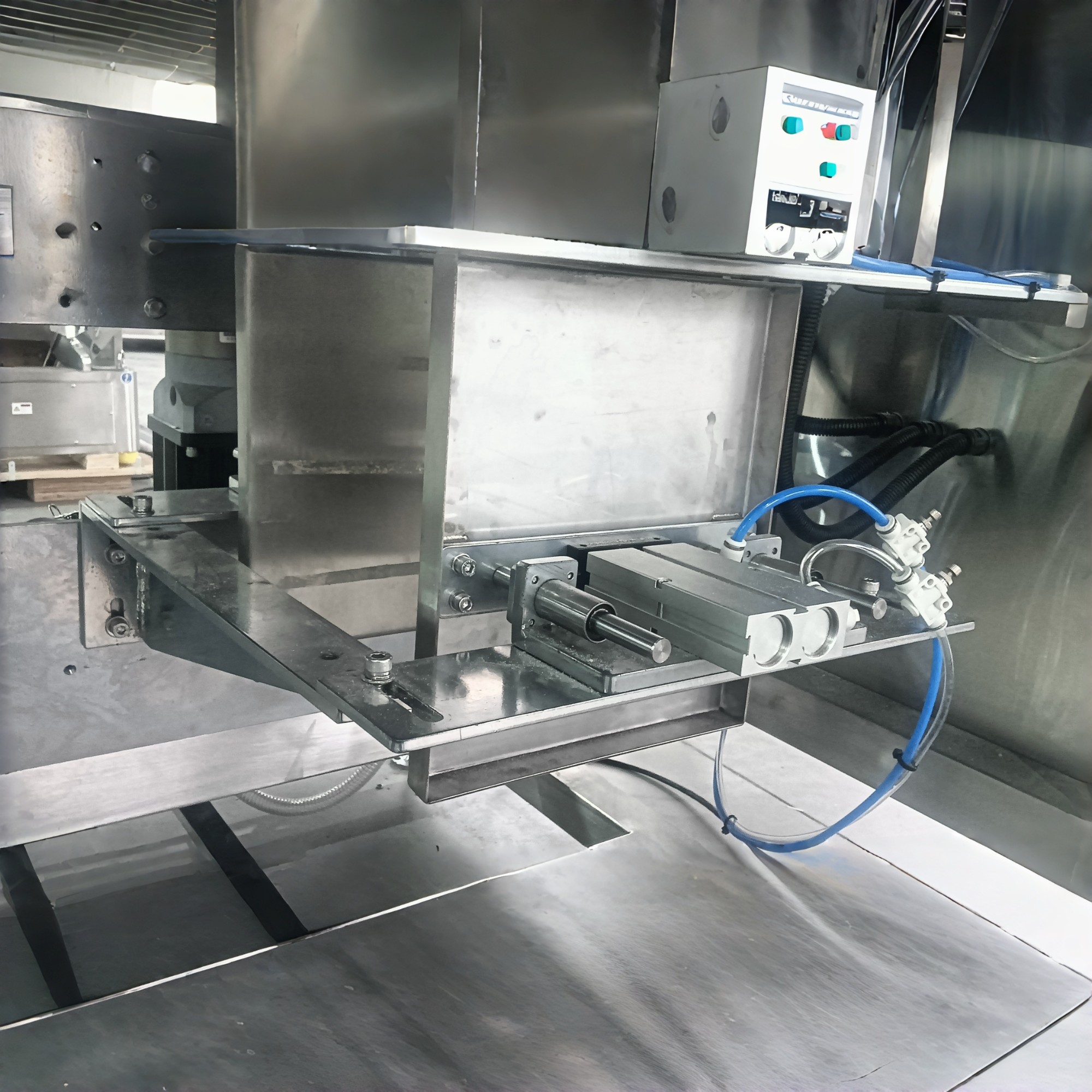

With bag compacting device for compress bag flat when vacuuming
Electric photo sensor inducting color code to control bag length
Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting
Independent temperature adjustment& code printing
Application:
Type
Material
Granule
grain, granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts, frozen food, detergent powder,etc.
-

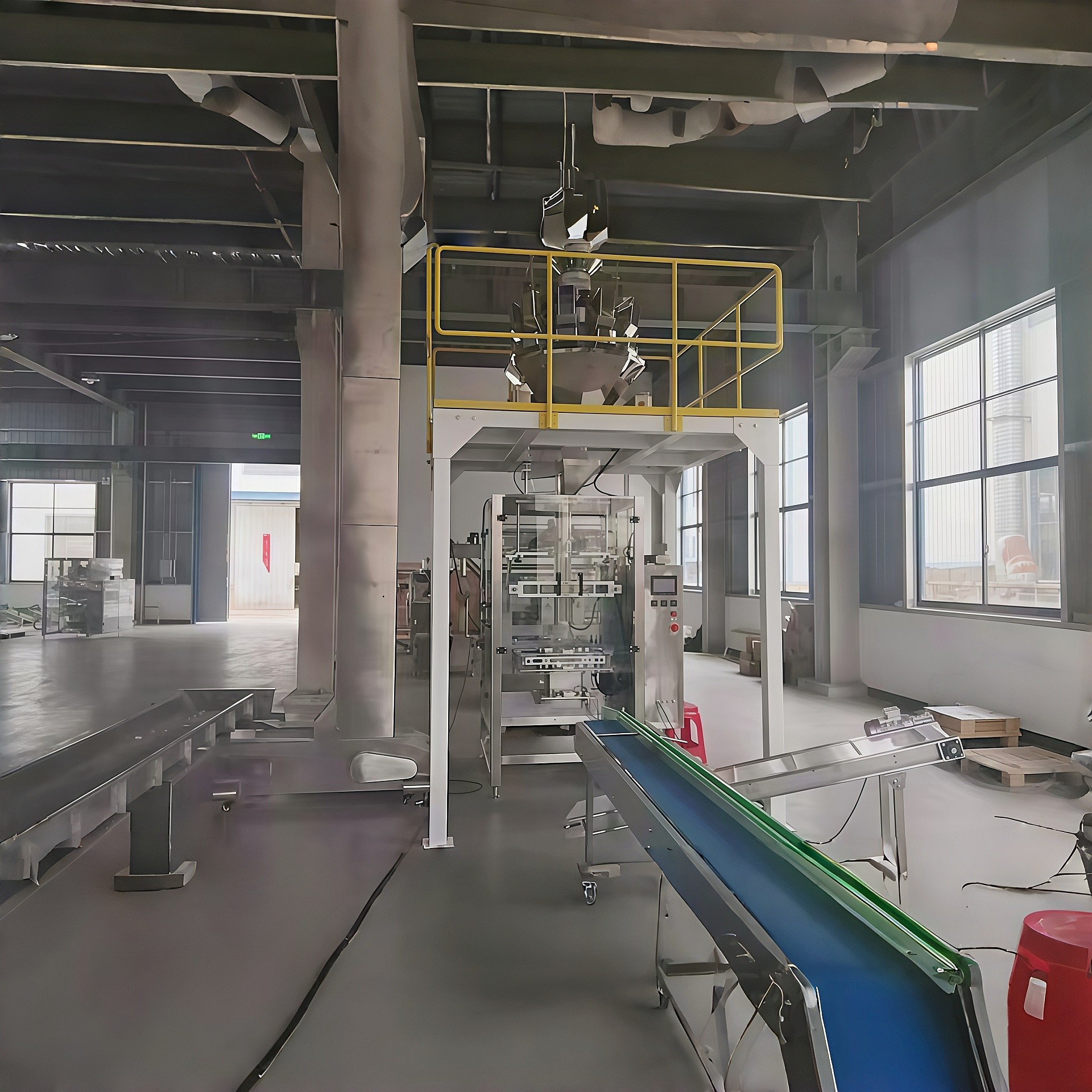

Working Progress:
a). Feeding elevator feeding products in hopper of weighing machine;
b). Weighing machine will weighing and filling products at target weight; - c). Vacuum packing machine automatically realize functions of bag making, filling, vacuuming, sealing, taking-out,etc.
-
-
Technical parameters:
-
Metering products
Granules/powder
Metering capacity
500g~10kg
Metering accuracy
±0.2% (according the packaging weight and the bag size )
Metering speed
6~10BPM
Bag size
(150mm-600mm)*(180mm-375mm)L*W
Bag shape

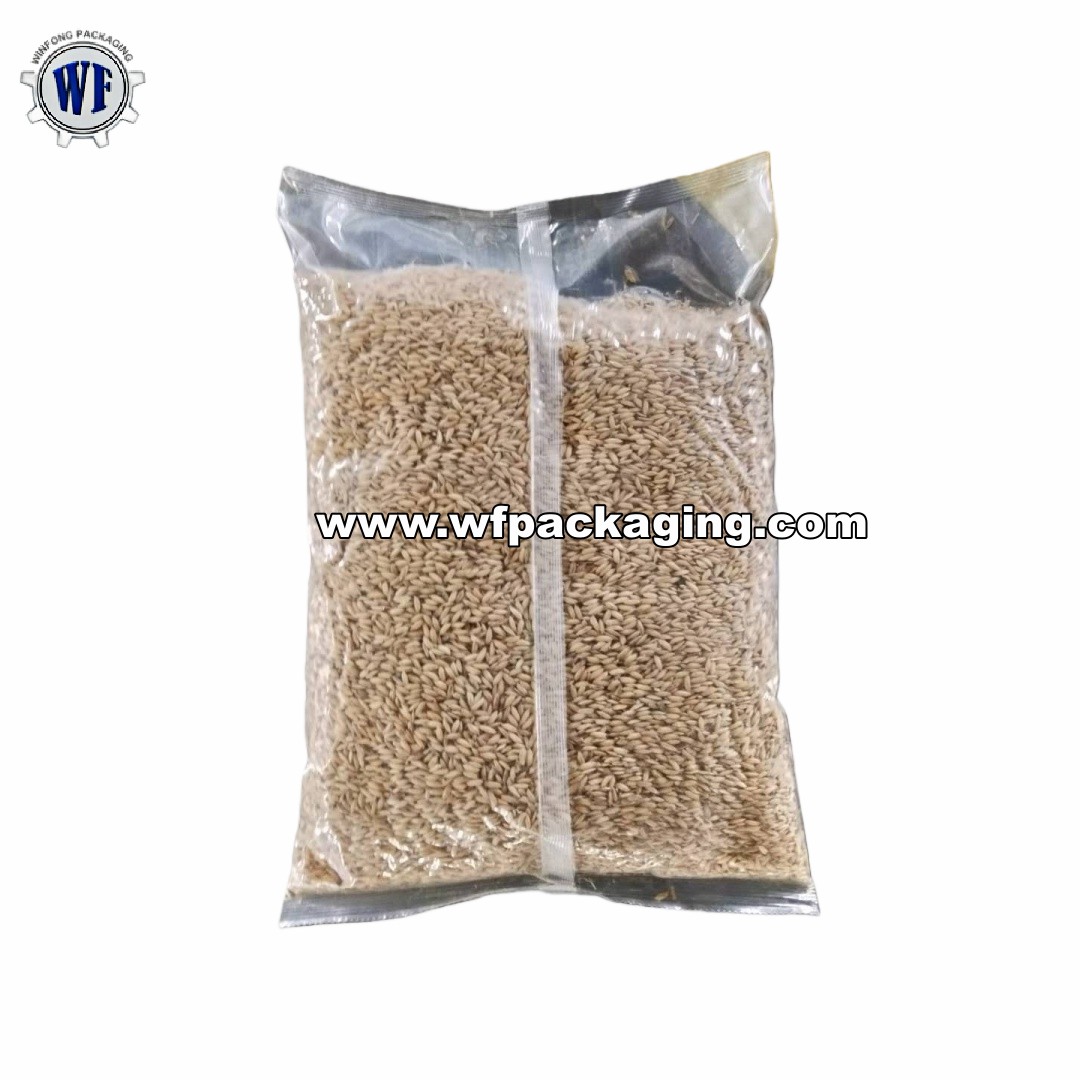

Pillow type bag(vacuumed)
Max.outer diameter of reel
Ф400 mm
ID of packaging paper core
Ф75 mm
Total power of power source
10Kw 380V±10% 50Hz
Air source consumption
0.6 MPa,0. 36m3/min
External dimensions
3100×1985×4800 mm
Total weight
1300 kg
-
- Our Company
-
- Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

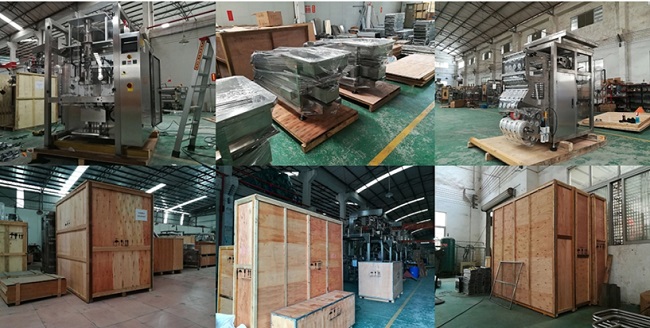

- Packaging & Shipment
-
-After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.
-We can ship machines from any sea port in China.
-We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
