Multi-lane Packing Machine
WF480K/WF720K/WF960K/1200K Multi Lane 4 Side Sealing Granule Packing Machine
- MOQ:1set
- Original:China
- Delivery time: 35 working days
- Package:export standard wooden case
Constitute：
|
The complete packing line includes: |
Quantity |
|

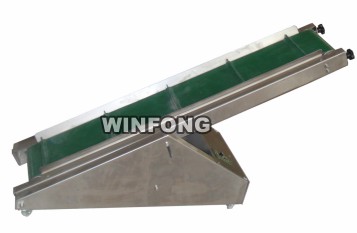

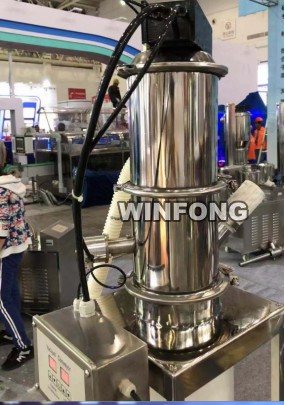

1.Vacuum feeder 2. Cup filler 3.Multi-lane 4 side sealing packing machine 4.Take off conveyor |
1set 1set 1set 1set |
Advantages:
|
1 |
The machine is suitable for Suitable to package granules ,such as sugar,salt,coffee, etc |
|
2 |
All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions. |
|
3 |
Double servo motors for film drawing down system; |
|
4 |
Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on. |
|
5 |
Automatic film rectifying deviation function; |
|
6 |
Famous brand PLC. Pneumatic system for vertical and horizontal sealing; |
|
7 |
It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment. |
Application:

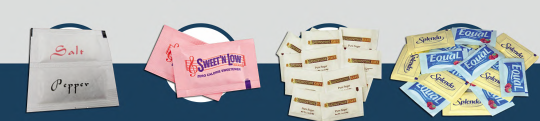

Sample bags:

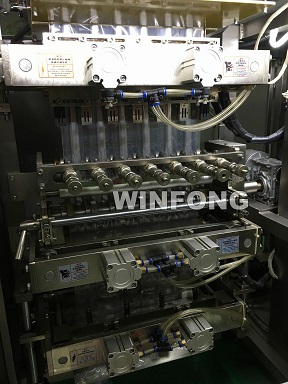

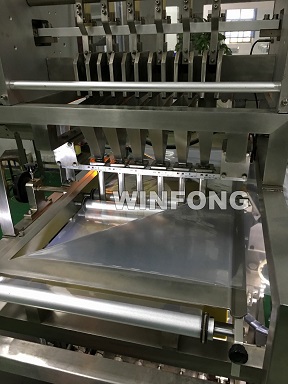

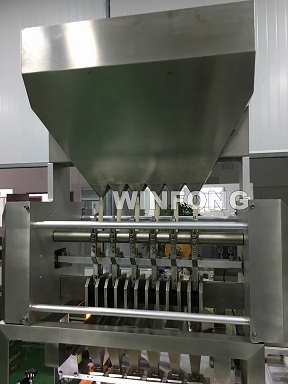

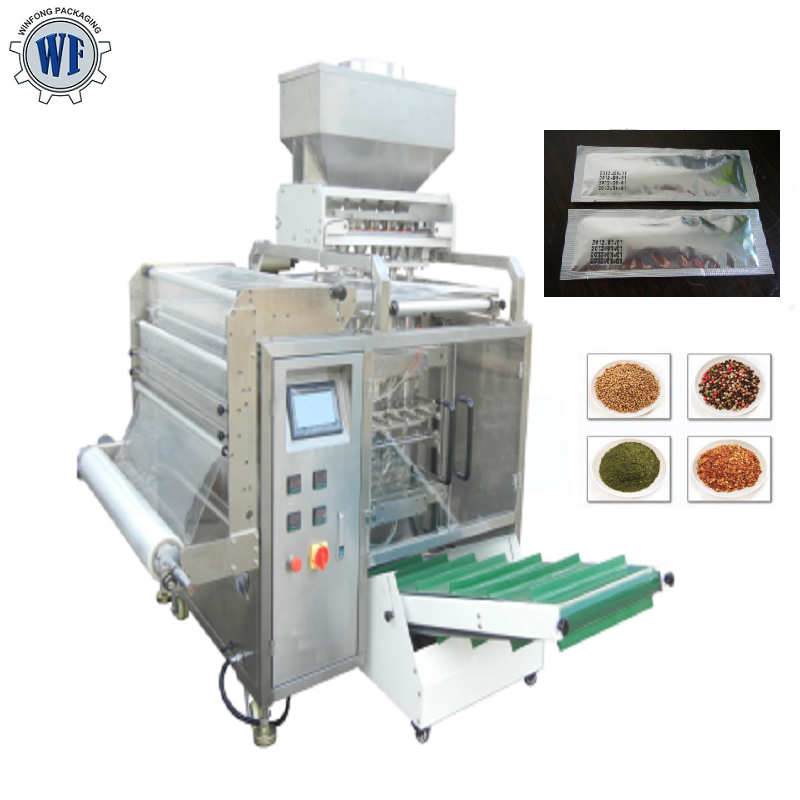

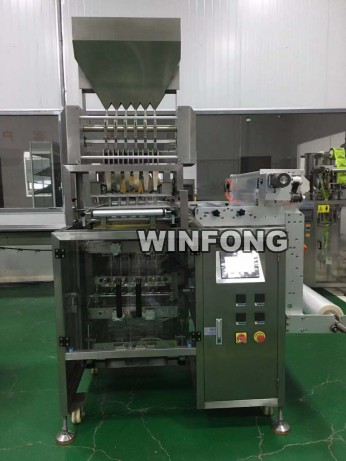

Machine photo:
Technical parameters:
Model
WF480k
WF720k
WF960k
WF1200k
Lane number
2-4lane
3-8lane
4-12lane
5-14lane
Filling way
Cup filler/linear weigher
Capacity speed
50 cutting/min
Sachet size
L:45-120mm,W40-120mm
L:45-120mm,W40-120mm
L:45-120mm,40-120mm
L:45-120mm,W40-120mm
Film width&thickness
Max.480,0.07-0.10mm
Max.720,0.07-0.10mm
Max.960,0.07-0.10mm
Max1200,0.07-0.10mm
Sealing type
4 sealing/stick bag
Cutting type
Straight cutting/sawtooth cutting/round cutting/continuous cutting
Air power
0.8Mpa,0.8M3,2.8Kw
0.8Mpa,0.8M3,4.1Kw
0.8Mpa,0.8M3,5.5Kw
0.8Mpa,0.8M3,5.5Kw
Dimension
950x1470x1750mm,300kg
1153x1654x1750mm,400kg
1415x1686x2130mm,500kg
2220x2210x2600mm,800kg
Configuration list:
Configuration list
No
Components
Standard configuration
1

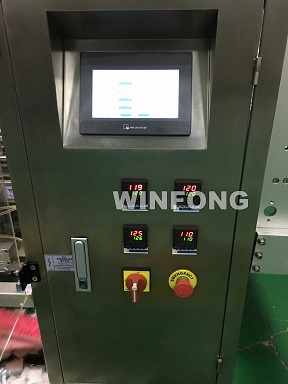

Control parts：
Brand name/Origin
1)
Touch screen
Wenview/Taiwan
2)
PLC
Mitsubishi/Japan
3)
Servo driver
Panasonic/Japan
4)
Transducer
Jintian/China
5)
Temperature controller
Nuohai/China
2

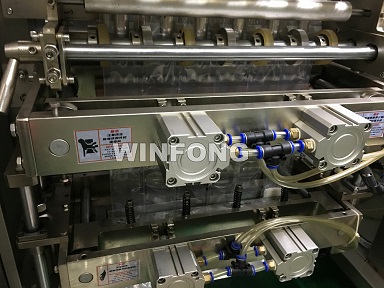

Pneumatic parts
1)
Horizontal sealer cylinder
Airtac/Taiwan/CHSFC
2)
Vertical sealer cylinder
Airtac/Taiwan/CHSFC
3)
Film-pulling cylinder
Airtac/TaiwanCHSFC
4)
Cutter cylinder
Airtac/Taiwan/CHSFC
5)
Solenoid valve
Airtac/Taiwan/CHSFC
6
Triplet
Airtac/Taiwan/CHSFC
3
Low-voltage parts
1)
DC power
Mingwei/China
2)
Solenoid valve
FOTEK/Taiwan
3）
Middle relay
Omron/Japan
4）
Voltage stabilizer
Donglin/China
4
Sensor
1)
Proximity switch
AUTONICS/Korea
2)
Optoelectronic switch
Shiwei/China
3)
Color code optical fiber
AUTONICS/Korea
4)
Counting optical fiber
RIKO/Taiwan
5
Drive part：
1)
Servo motor
Panasonic /Japan
2)
Stepping motor
Qili/China
3)
Reduce motor
VTV/China
4)
Asynchronous motor
Zhaoqing/China
6
Other parts：
1)
Power cable link
Aopulong/China
2)
Ribbon printer
Dingsheng/China
Note:Above components are pass the CE certification
Our company:
Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

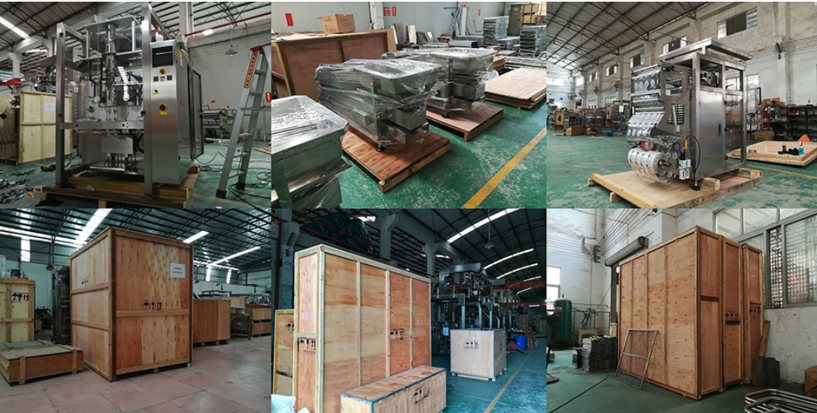

Shipment&packaging
