JPF-1 automatic spicy powder bottle/jar filling line

Machine video:

Introduction:

This line consists of bottle/jar feeding table,auger weighing filling machine for powder ,cap feeding machine,capping machine,labeling machine,etc.used for filling powder into bottle or jars.

Application:

Sample:

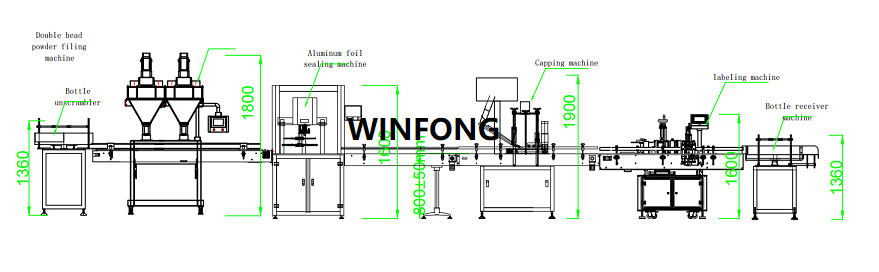

Drawing:

Working progress:

(tin can) 1 Bottle feeding → Z elevator → weighing and filling with double heads auger filler → material receiving with rotary table → can sealing → labeling → dust cover buckle → bottle receiving

Technical parameters for full lines:

The total unit includes:

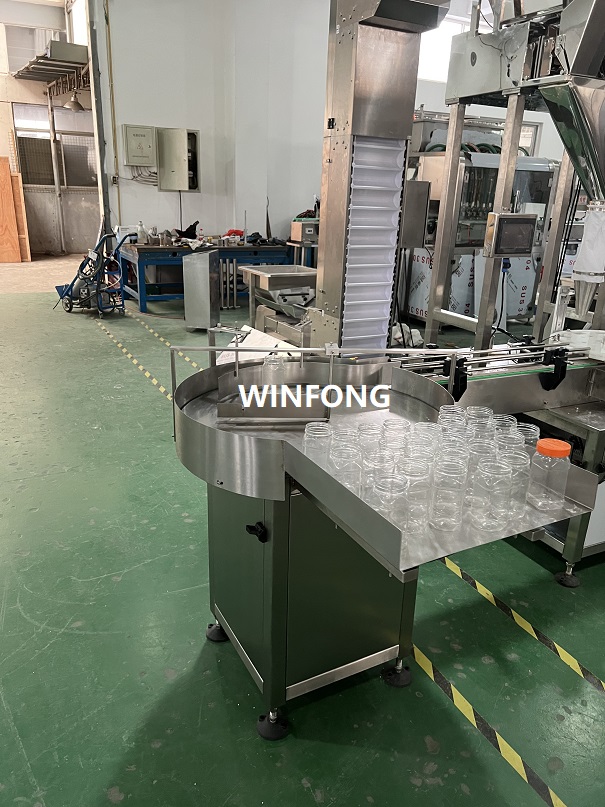

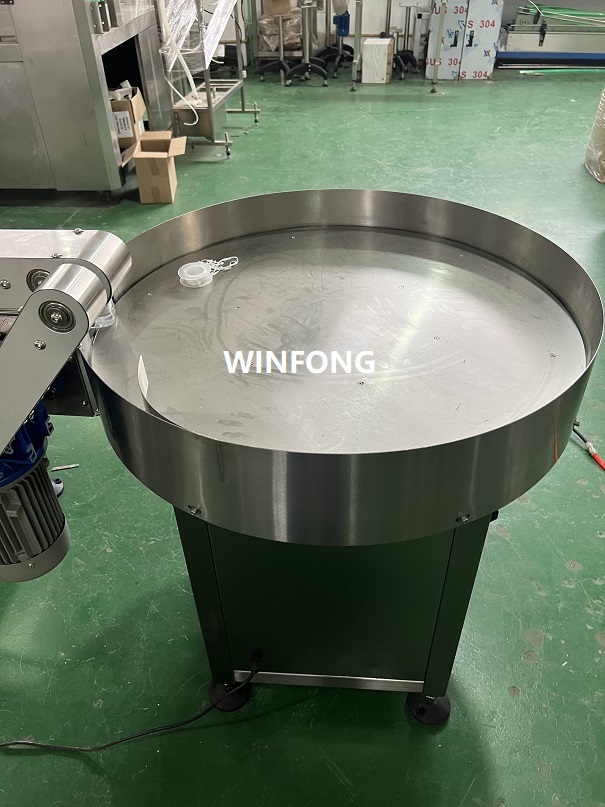

1.Automatic bottle feeding table

1.1The machine body is made of high-quality stainless steel, and other parts are also made of non-toxic and durable series materials. Some imported parts are selected for electrical and pneumatic systems

1.2 Low standby failure rate and high reliability.

1.3 The diameter of the turntable is 800mm, which is suitable for the bottle diameter of 40- 130mm and the

1.4 According to different bottle types, the fastest production efficiency can reach 60 bottles/ minute.

1.5Power supply: single phase 220V, 50Hz, 0. 12kw

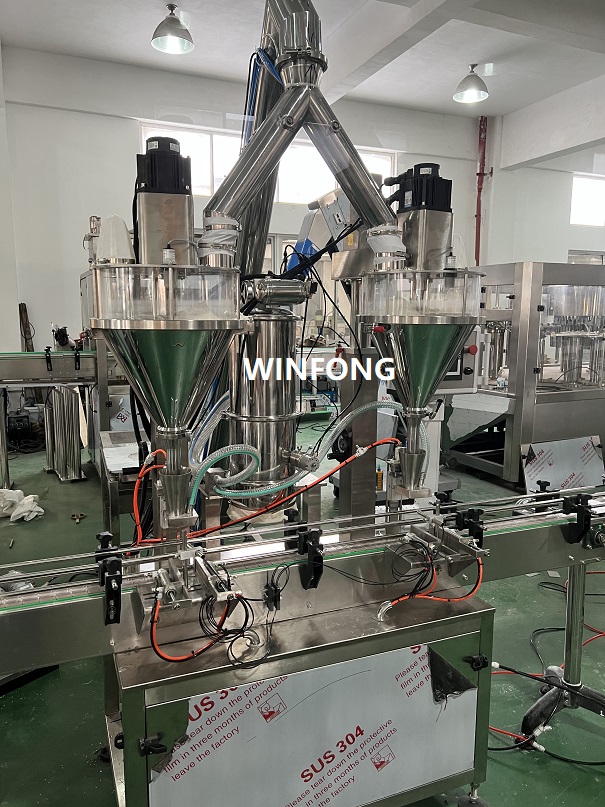

2. Double heads Filling Machine

2.1 Introduction:

The machine is suitable for simple powder bottling, with simple operation and convenient cleaning.

2.2Main Technical Parameters:

Filling heads: 2

Capacity:1000-1200Bottles/hour

Applicable Bottle Size: Square bottle Customized

Filling Precision: (150ml) ±1-2%(It depends on the uniformity of the material)

Filling Nozzle External Diameter: Customized

Filling Nozzle Height: Customized

Air Pressure: 0.5-0.6MPA

Power Source: 220V, 50HZ

Power: 4.5KW

Air Consumption: 30L/min

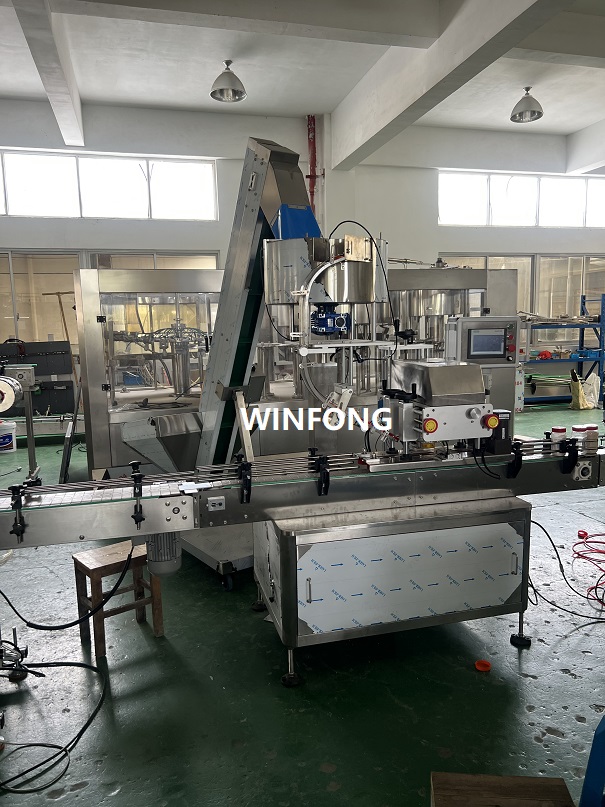

3.. KYG-4C automatic capping machine

The main feature of this model is that the range of tightness is large, and the appearance of the cap is not damaged during the capping process, which can ensure that the appearance of the cap and the bottle is relatively beautiful.

The main parameters

Production speed: ≤2000 bottles/hour

Applicable bottle type: 100-1000ml bottle type

Air source pressure: 0.5-0.6mpa

Power supply: AC220v, 50hz

Power: 2.0kw

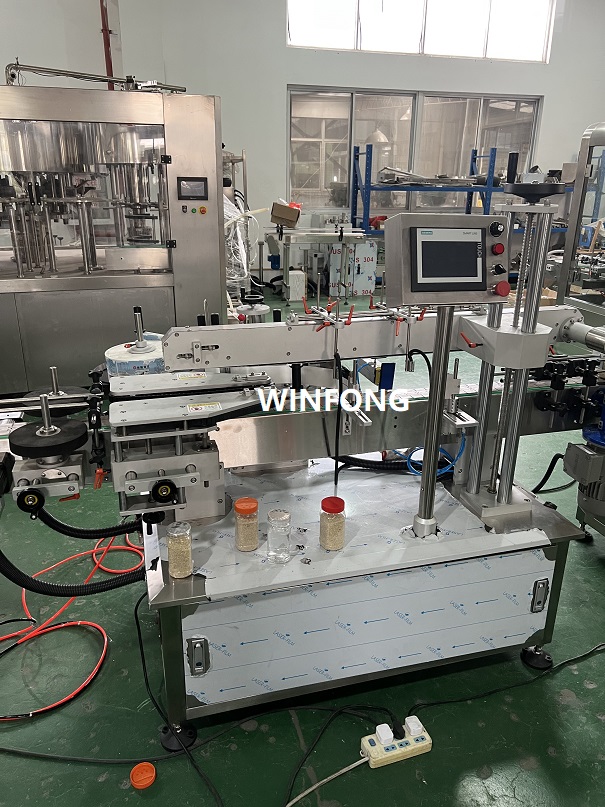

4.Automatic labeling machine:

Main Parameters

l Suitable diameter of bottles : Ф40mm~Ф110mm

l Production capacity : 1400-1500bottles/hour

l Power supply : AC 220V/50Hz

l Power : 2.5Kw

l Machine weight : about650 Kg

l Machine dimension (L×W×H) : 2800mm×850mm×1600mm

5.Finished bottles collect table
