Heavy Bag Packing Machine

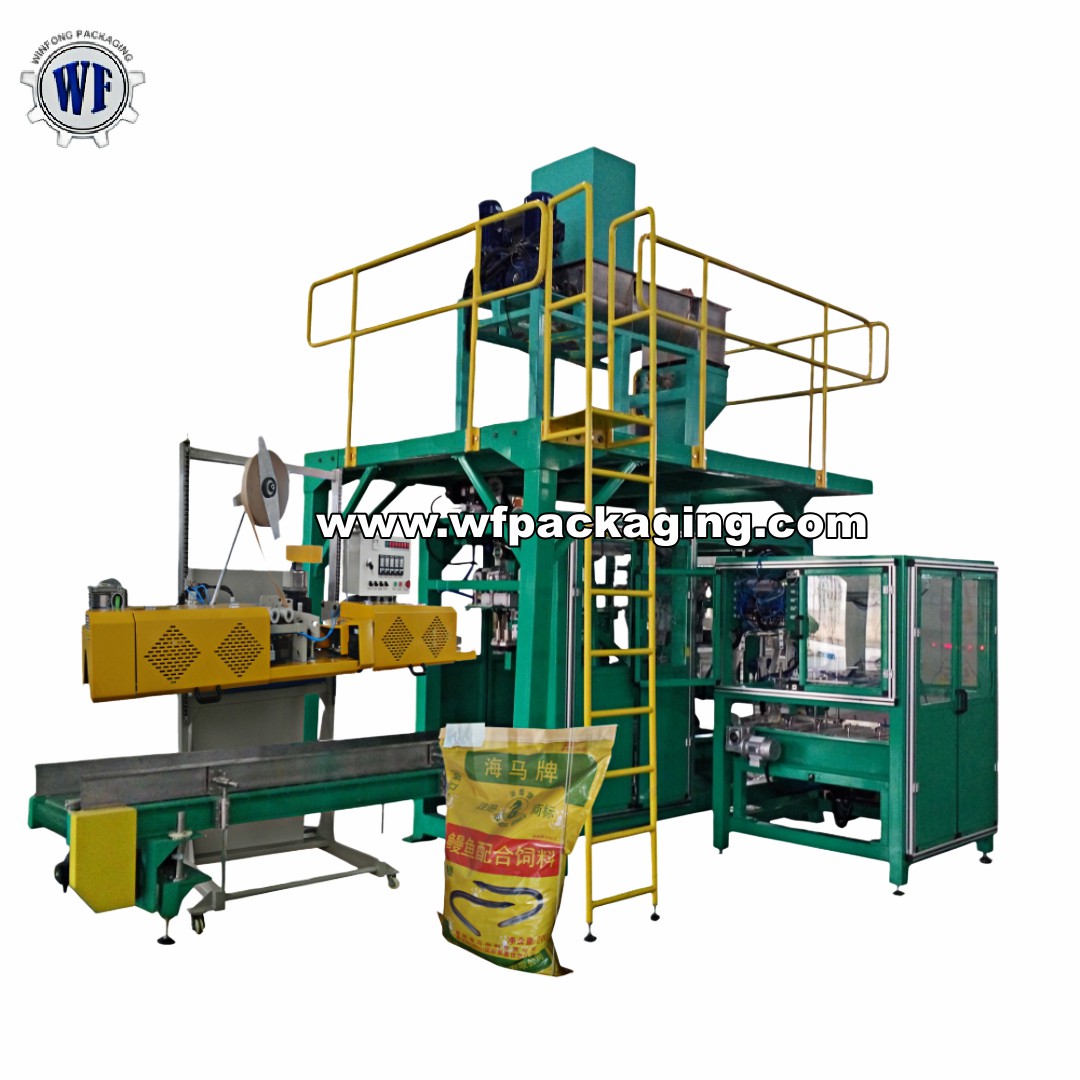

HBP System Fully Automatic Heavy Bag Powder Packaging Machine(10/25/50kg)
- MOQ:1set
- Original:China
- Delivery time: 25 working days
- Package:export standard wooden case
- Machine Introduction
-
Advantages:
No.
Features
1

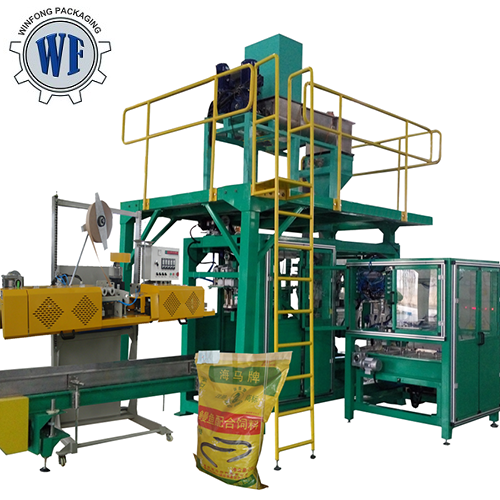

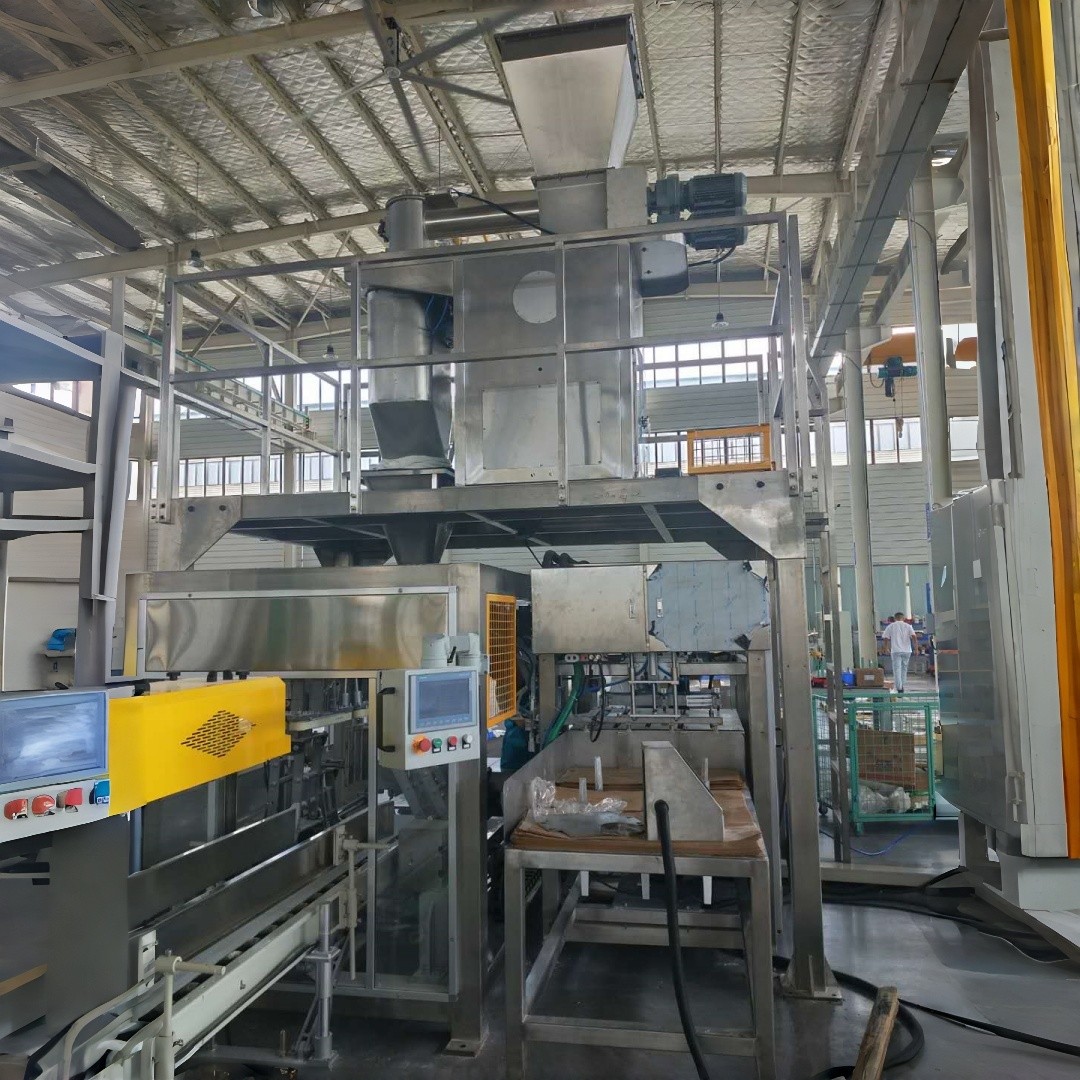

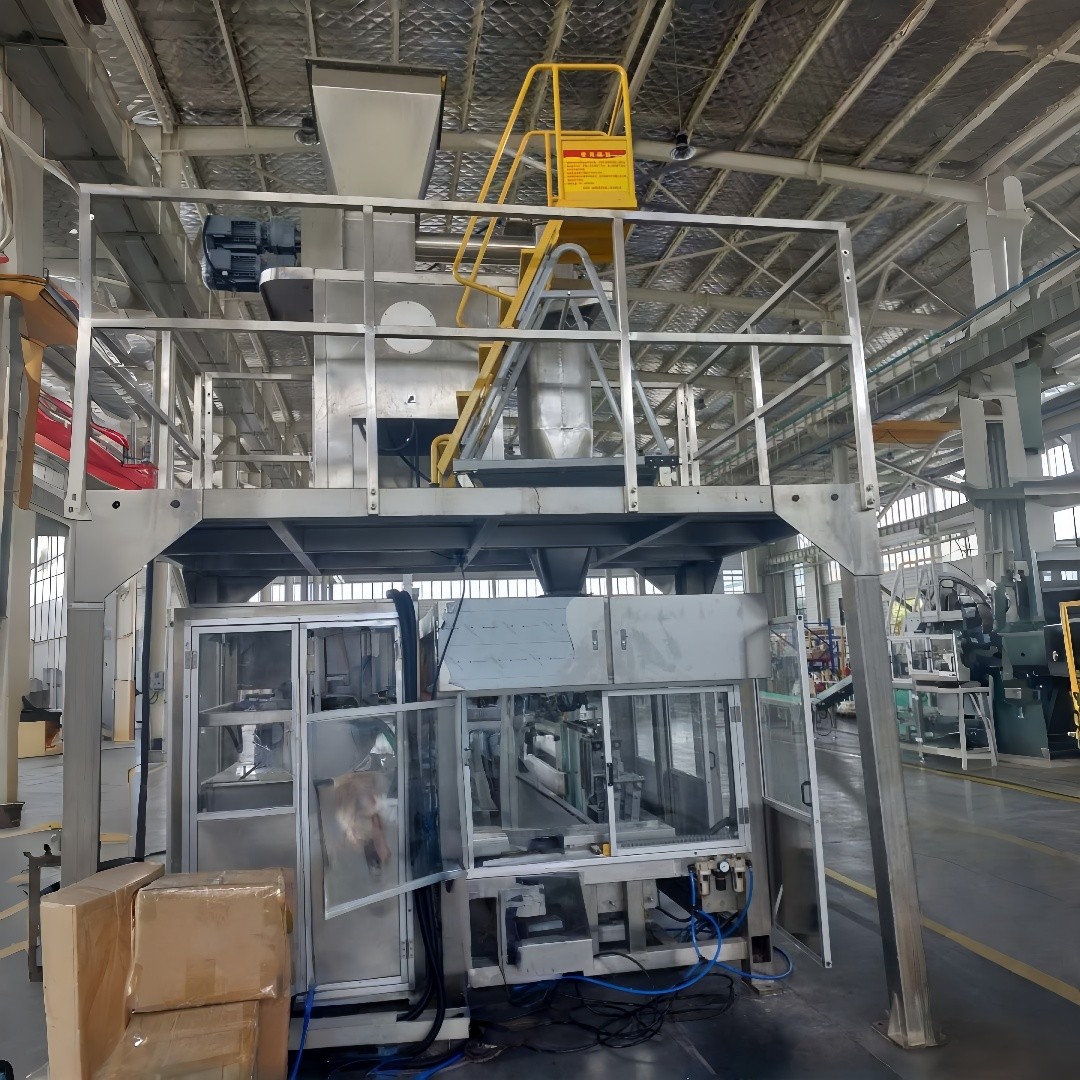

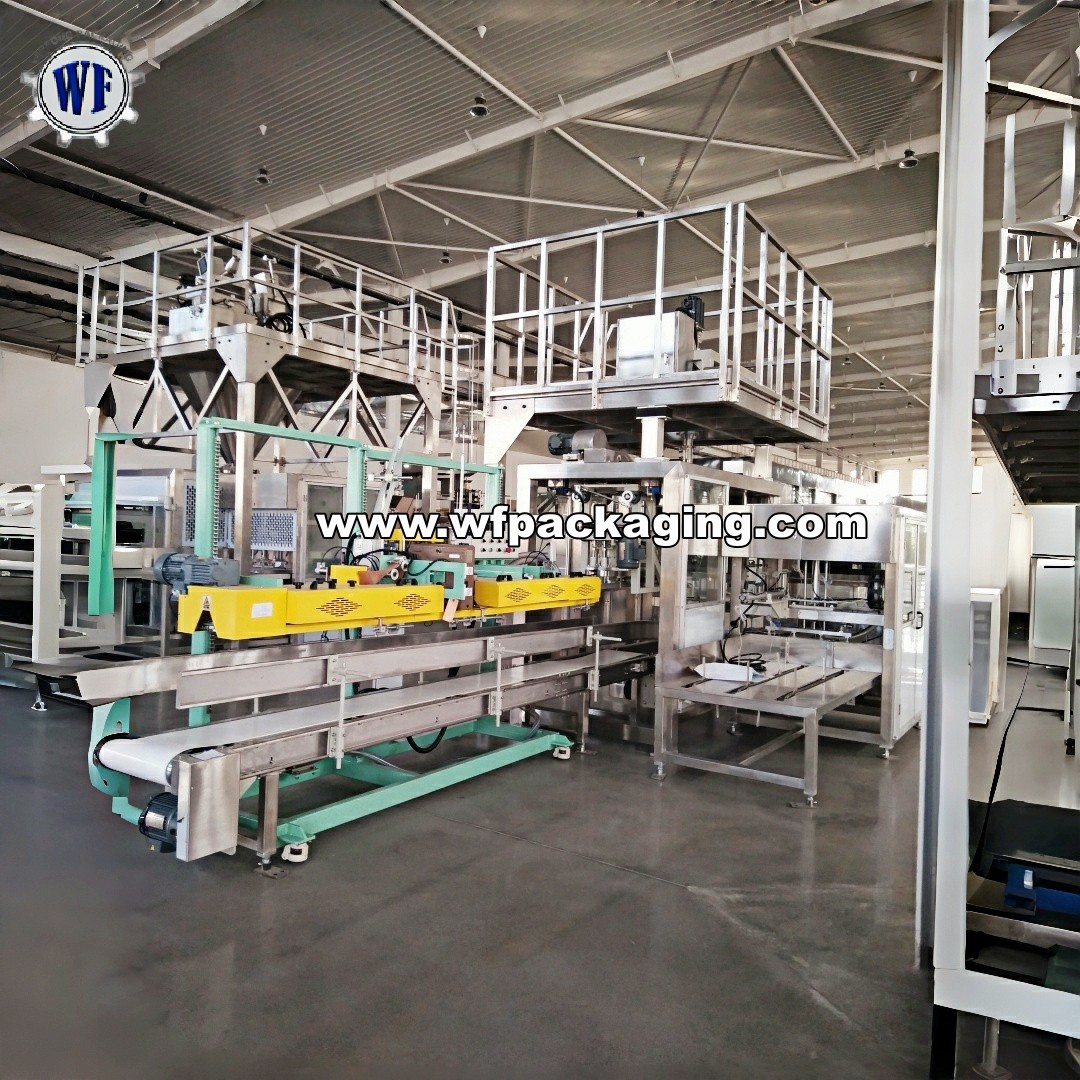

This packing unit includes one set of DT1 screw elevator, one set of screw weighing, one set of HBP-25 heavy bag packaging machine, one set of sewing/sealing machine.
2

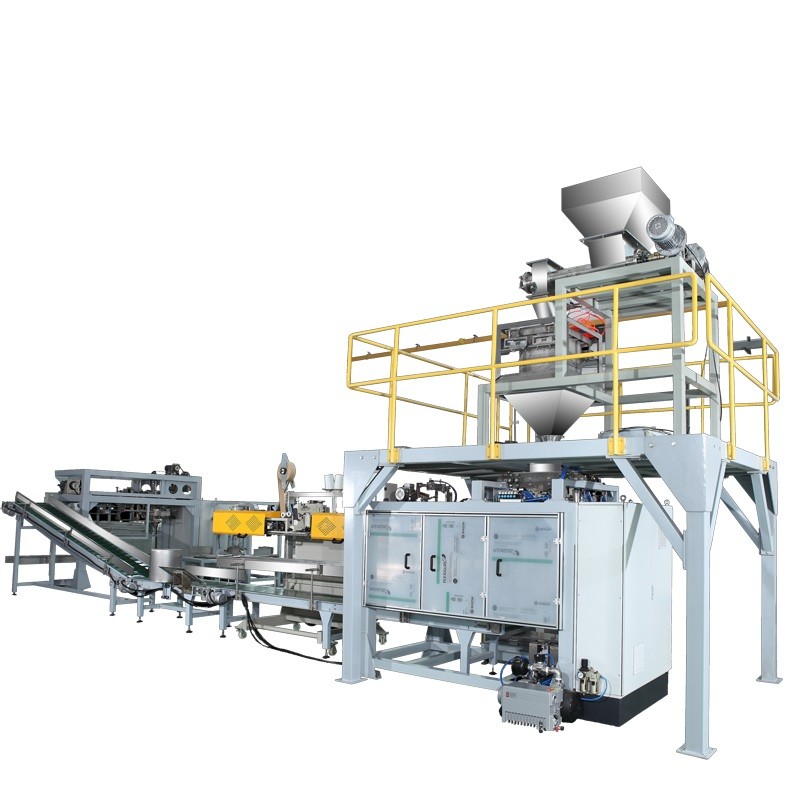

This machine integrates the functions of feeding, weighing, filling, bag-feeding, bag-opening, conveying, sealing/sewing, etc.
3
The machine has good sealing performance and can meet customer’s hygienic requirements.
4

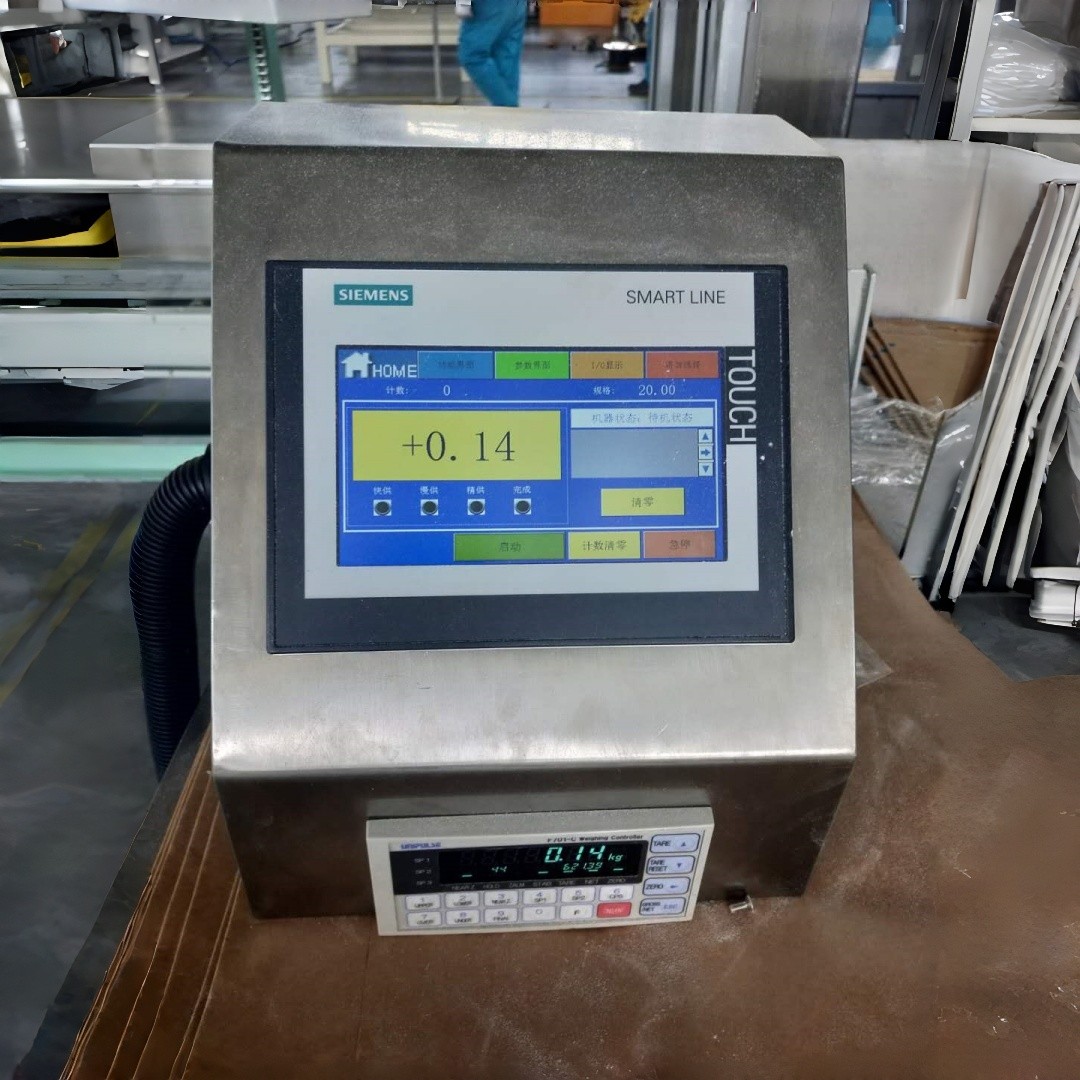

All the electrical components and control components adopt local and foreign well-known brands with reliable performance, such as Siemens PLC and touch screen, Delta converter and servo motor, Schneider and Omron electrical components, etc. Man-machine dialogue platform, both the operator and debugging personnel can set parameters through the touch screen.
5

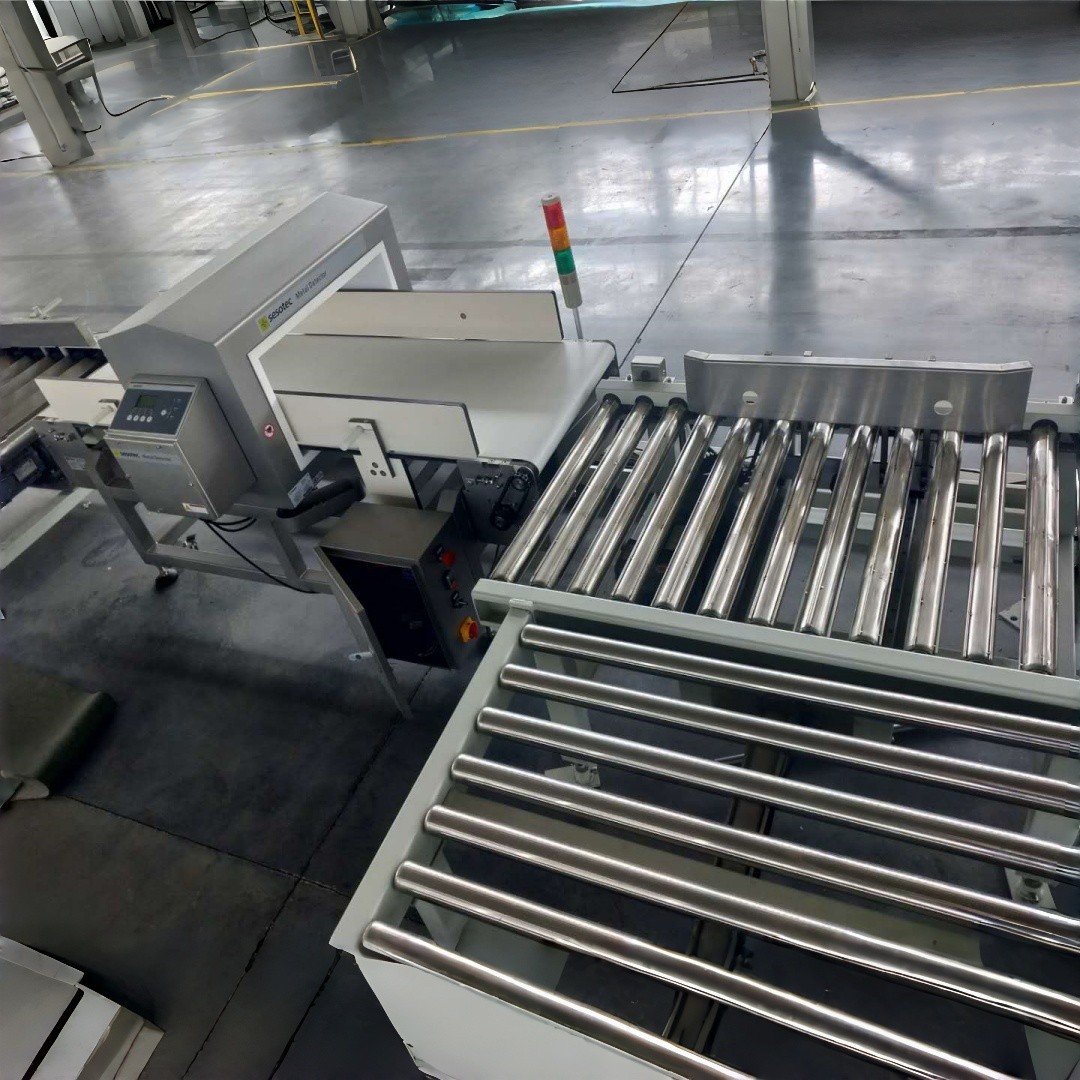

Can be equipped with check weigher and case packer for realize automatic weight checking and cartoning.
Application:
Powder
milk powder, coffee powder, food additives, condiments, tapioca powder, coconut powder, pesticide powder, fertilizer granules etc.
-
Working Progress:

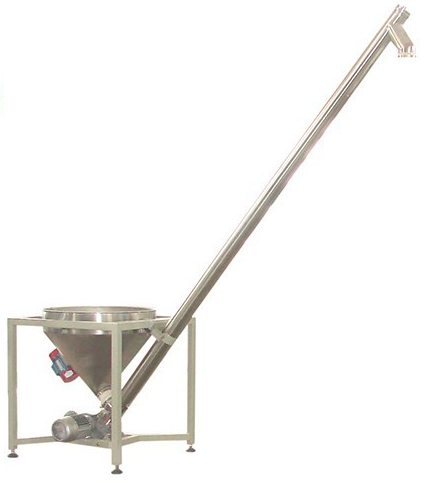

- 1). DT1 screw elevator for material lifting;
-

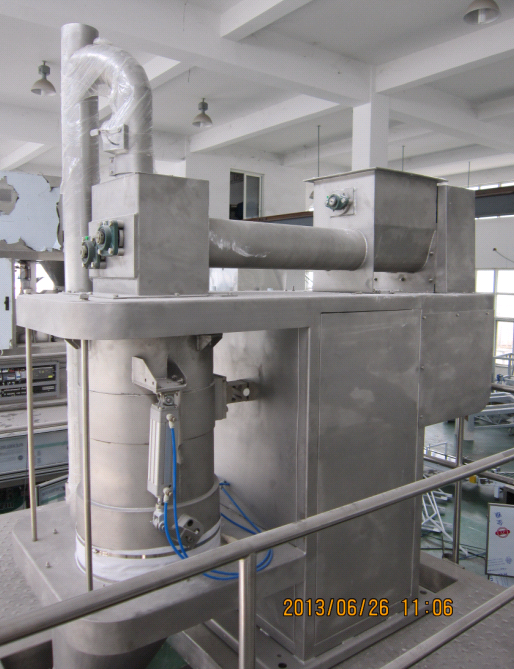

2). Screw filling and weighting machine;
-
3). Automatic bag feeding &material auto filling;
-

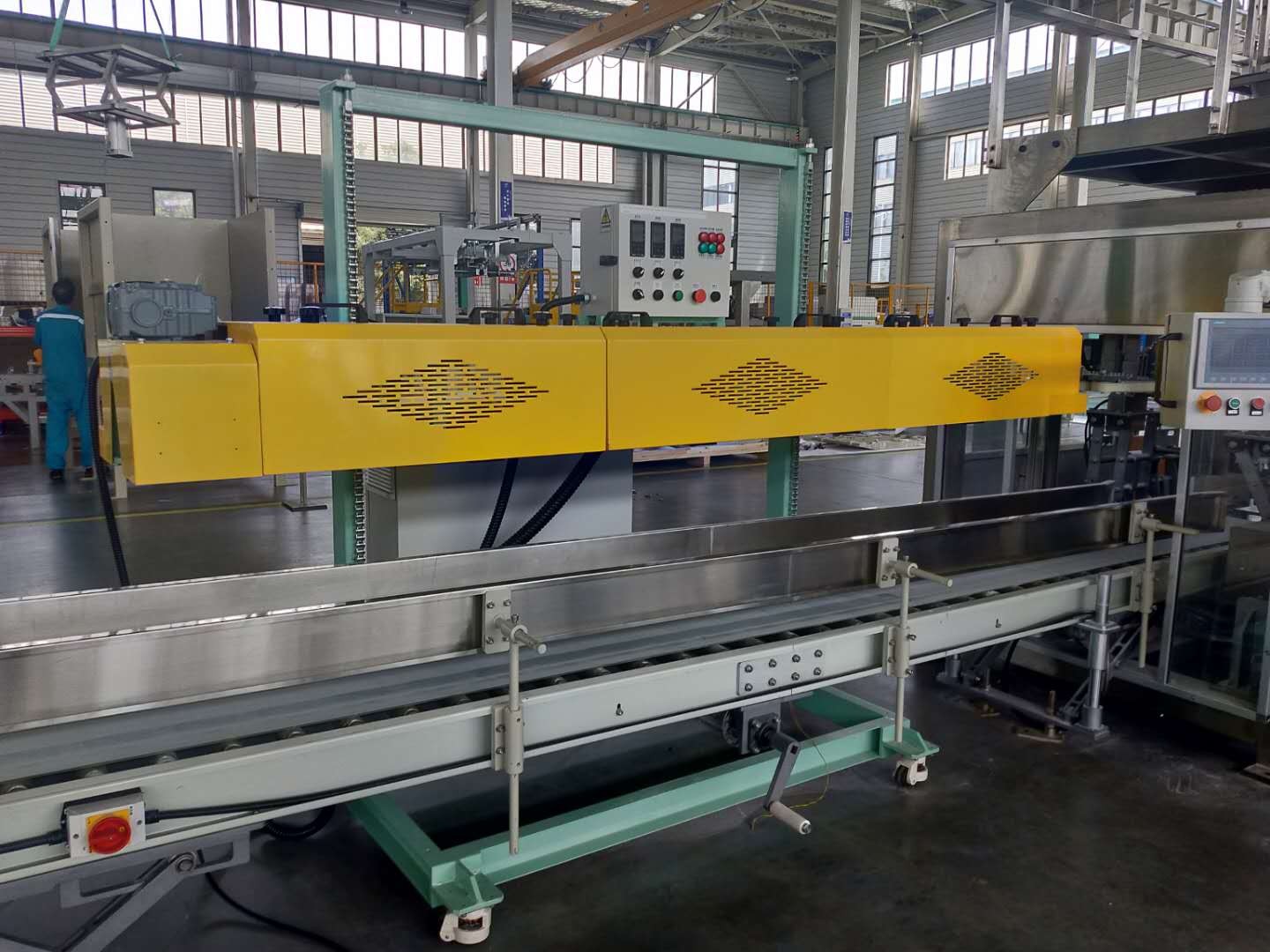

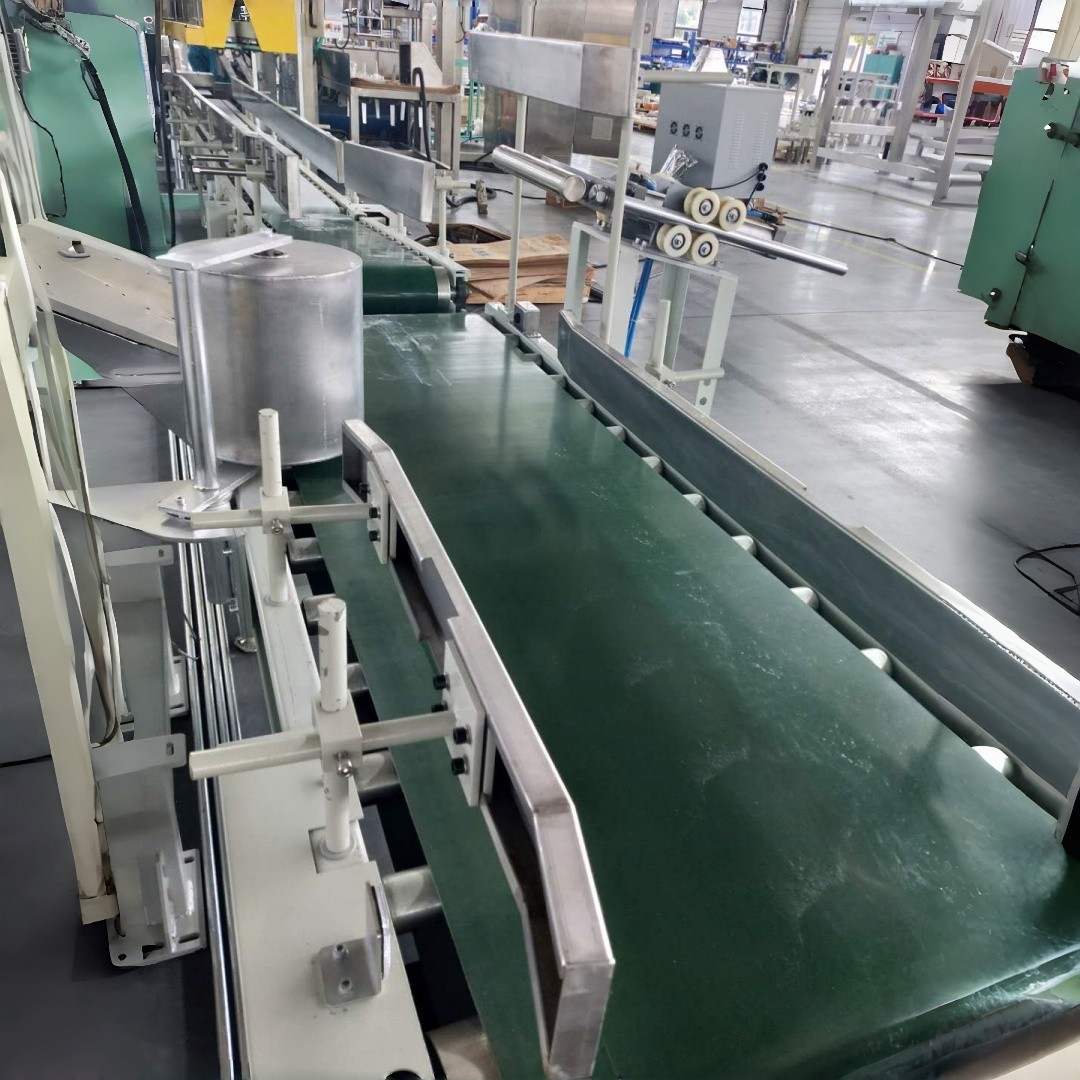

4). Bag automatic transferred by the conveyor;
- 5). Auto bag sewing;
-
6). Finished bag.
-
Technical parameters:
-
No.
Item
Parameter
1.
Metering products
Powder
2
Packing machine model
HBP-10
HBP-25
HBP-50
2
Metering weight
5~10kg
10~25kg
25~50kg
3
Material of premade bag
Compound plastics film ,paper bag etc. ( the bag material can be assimilated by our bag feeding machine )
4
Speed
4~6bpm
3~4bpm
1~2bpm
5
Weighing accuracy
0.2%;
6
Power supply
380V±10% 50Hz 5.5KW
7
Machine weight
2000kg
8
Machine size
4000*2500*4000mm
9
Air supply source
0.6MPa, 0.5m3/min
10
Seals
Woven bag:bag mouth side folding/seaming.
Kraft paper bags:sealing/seaming.
Composite film bag:sealing.
-

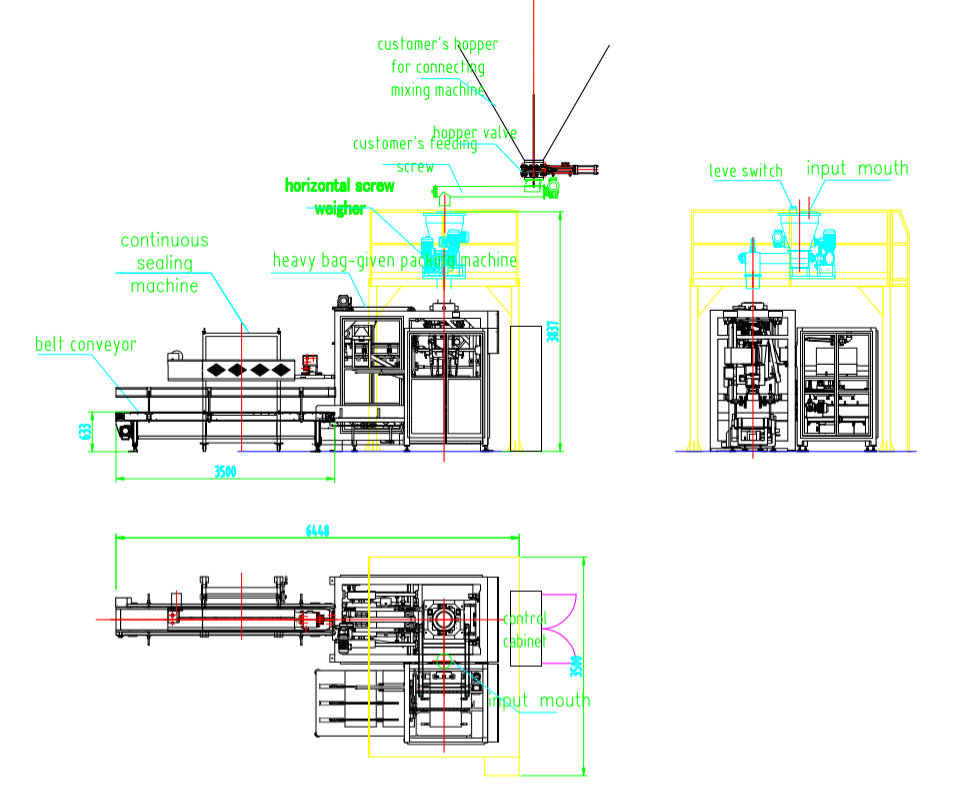

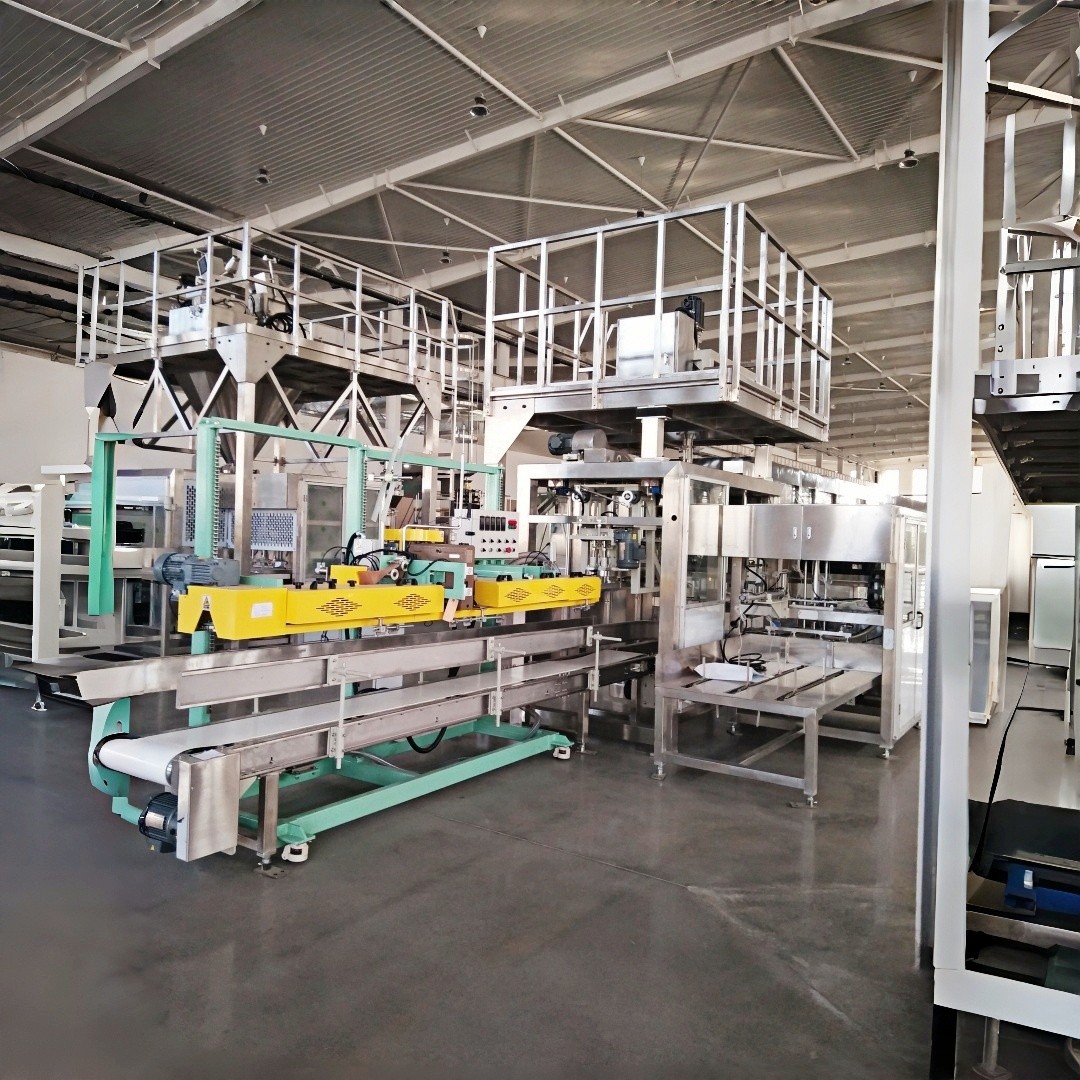

Layout for reference:
-
- Key Components
-
Model
DT1 bucket elevator
Material
Parts contact with material are made by s.s304, others are made by carbon steel with paint
Capacity
6-8tons/hour
Height
4~6m
Voltage
220 volt, 50hz, 1phase
Power
1.1KW
Features
1. Storage hopper
2. ABB food grade plastic buckets
3. easy to clean
Model
WLD25K Screw weighting machine
Way of filling
Screw
Packaging weight
Max.50kg
Weight accuracy
±2‰-5‰
Fill motor
Servo motor
Packaging speed
3-8time/min
Hopper Capacity
150L
Power supply
380V 50HZ(60HZ)
Total Power
1.4KW
Dimension(mm)
680(L)*500(W)*1500(H)
Model
GK35-2C Automatic Stitching /sewing machine
Sewing speed
2000r.p.m.
Maximum sewing thickness
8mm
Stitch adjustment range
6.5~11mm
Stitch pattern
Two-wire chain 401
Sew specifications
Cotton thread, polyester thread lifting height of presser foot 11~16mm
Needle model
80800x250#pulley diameter 114mm
Wire braid cutter device mechanical motor power
370w
Machine weight
30kg
Dimension(mm)
50(L)*50(W)*1500(H)
Main configuration of GFCK25 (HBP-25) packaging machine：
No.
Components
Brand
System
1
PLC
Siemens(Germany)
Electrical parts
2
Touch screen
Siemens(Germany)
3
Inverter
Delta(China)
4
Low-voltage
Schneider(France)
5
Limit switch
Schneider(France)
6
Photo sensor
Omron(Japan)
7
Proximity switch
Sick(Germany)
8
Vacuum pressure switch
SMC(Japan)
9
Safe relay
Phoenix(Germany)
10
Vacuum pump
China made
Mechanical part
11
cylinder
SMC(Japan)
12
Solenoid valve
SMC(Japan)
13
Normal motor
Wanxing(Taiwan)
14
Servo motor
Delta(Taiwan)
15
PE bag sealing machine
Zengran
- Our Company
-
- Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!
- Packaging & Shipment
-

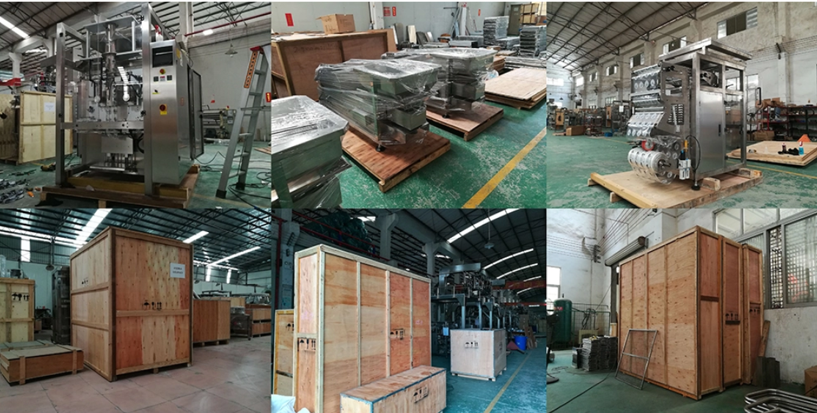

-After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.
