Premade Bag Packing Machine

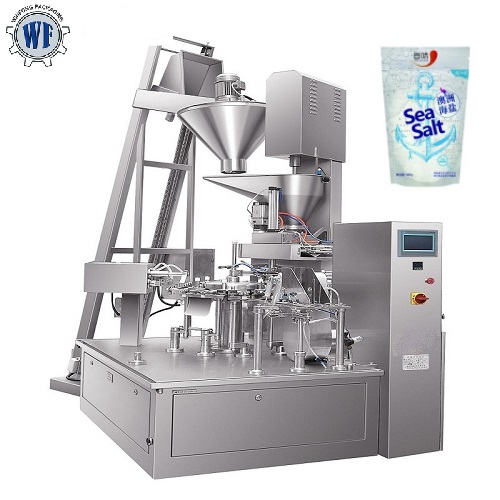

RB Automatic Salt Premade Bag Rotary Packing Machine

MOQ:1set
Original:China
Delivery time:30 working days
Package:export standard wooden case
INQUIRY

Machine Introduction

Constitute：

The complete packing line includes:

Quantity

1.cup filler

2.Platform

3.RB8-200A rotary premade bag packing machine

4.Take-off conveyor

1set

Main Features:

No.	Features
1	The cup filler is used for weighing filling granules, like rice,salt
2	The rotary premade bag packing machine integrates the functions of bag-feeding, bag opening,filling, sealing , date printing ,etc.
3	Easy to operate，adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
4	Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
5	Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
6	Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
7	Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.
8	The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time
9	With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper

Application:

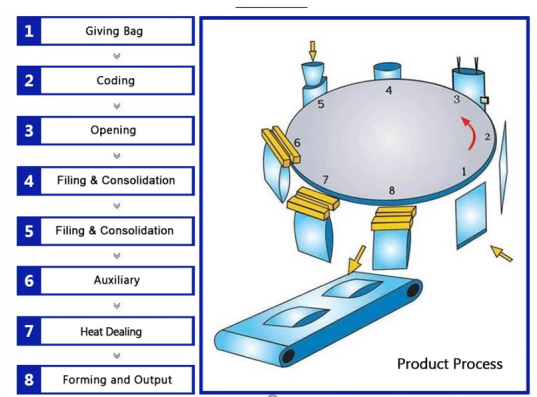

Working Progress:

Technical parameters:

1	Model	RB6-200	RB6-260	RB8-200	RB8-260	RB8-300	RB8-400
2	Bag size	W140-260 L150-400	W200-340 L200-450	W90-260 L150-350	W140-260 L150-400	W180-300 L150-450	W280-400 L230-550
3	Machine dimension	170013001400 （LWH）	190014501500 （LWH）	190014501500 （LWH）	170013001400 （LWH）	190014501500 （LWH）	210016001600 （LWH）
4	Bag type	Flat bag、doy bag	Flat bag、doy bag	Flat bag、doy bag	All kinds bags include zipper bags	All kinds bags include zipper bags	All kinds bags include zipper bags
5	Packing speed	20-40b/min	10-30b/min	10-45b/min	20-45b/min	15-35b/min	10-25b/min
6	Power	AC380V±10% 3P 50HZ	AC380V±10% 3P 50HZ	AC380V±10% 3P 50HZ	AC380V±10% 3P 50HZ	AC380V±10% 3P 50HZ	AC380V±10% 3P 50HZ

Configuration List:

NO	NAMES	COMPONENTS
1	CYLINDER	AIRTAC
2	SOLENOID VALVE	GERMANYT FESTO
3	VACUUM SOLENOID VALVE	GERMANY FESTO
4	FREQUENCY CONVERTER	SIEMENS
5	VACUUM PUMP	JAPAN ORION
6	TOUCH SCREEN	SIEMENS 7INCH
7	TEMPERATURE CONTROLLER	OMRON
8	PRESSURE SWITCH	OMRON
9	SWITCH POWER	SIEMENS
10	PROXIMITY SWITCH	KOREA AUTONICS
11	EMERGENCY STOP SWITCH	JAPAN YAMATAKE
12	DRIVE MOTOR	JAPAN YAMATO
13	AC CONTACTOR	FRANCE SCHNEIDER
14	PLC	SIEMENS
15	BALL BEARING	CHINA
16	CF BEARING	IKO
17	Articulated bearing	CHINA
