Auxiliary Machines

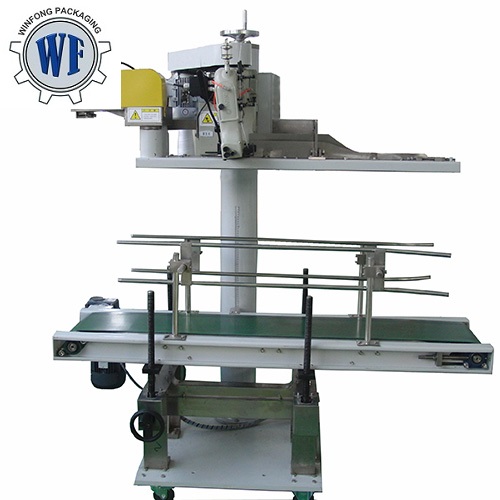

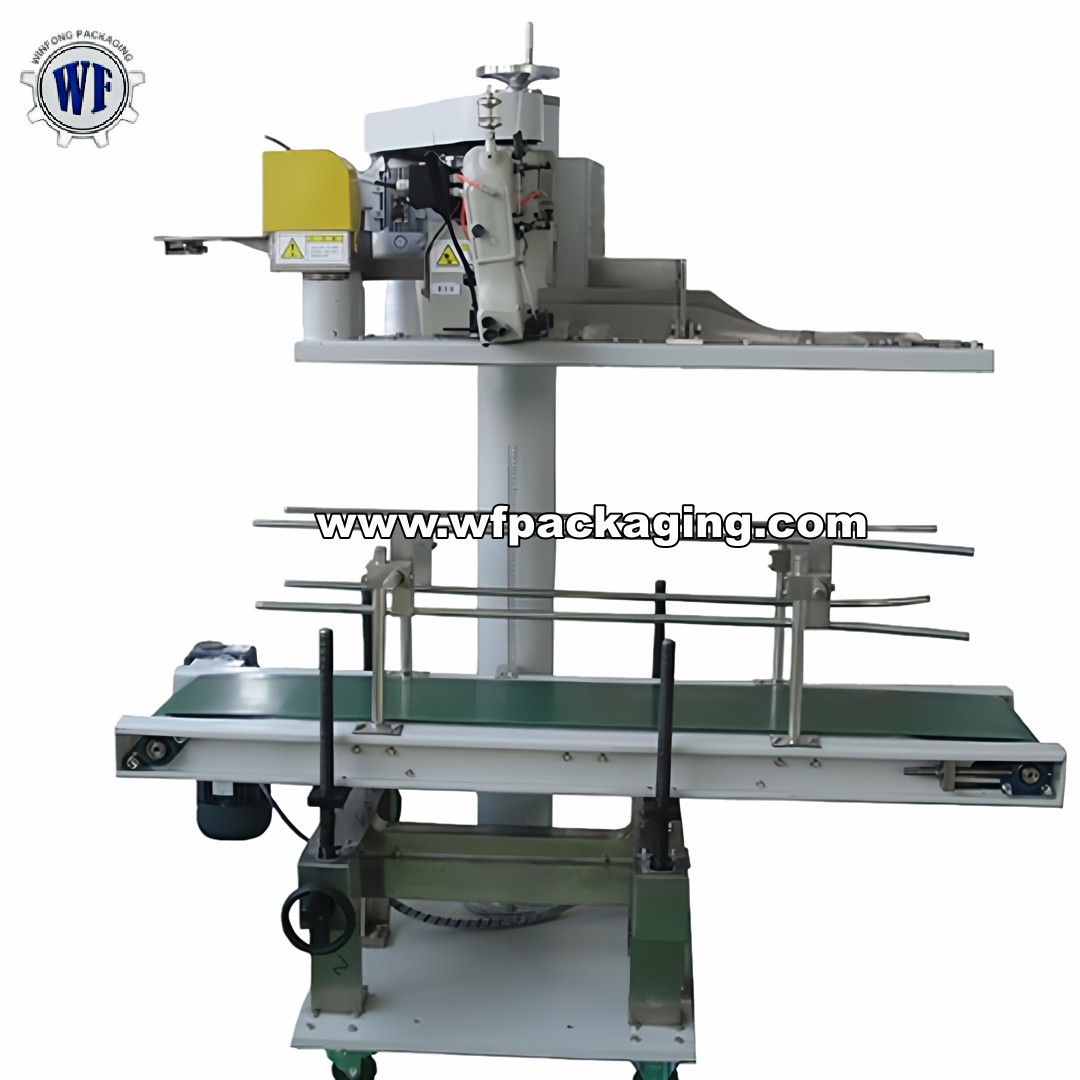

SMQ Automatic Sewing Machine
- MOQ:1set
- Original:China
- Delivery time: 25 working days
- Package:export standard wooden case
- Machine Introduction
-
Scope:
Rice diet, light chemical, chemical raw materials industry, a large bag sewing ,used after packaging machine /packaging machinery。
Features:
1. Using photoelectric sensor switch automatically locate Sewing
2. Automatically disconnected, no artificial tangent。
3. Sewing-oriented and product conveyor drive motor equipped with the drive, adjustable speed。
4. Finished conveyor can be adjusted up and down the table to meet the needs of the different length of the bag。
5. Sewing machine head is equipped with safety switch safety cover, remove the safety cover off automatically after the sewing machine head, good safety performance。
6. The frame is board connecting structure, elegant appearance packing machine
-
Technical Parameters
-
Model
SMQ-D
SMQ-S
Bag Size(mm)
(650~1000)x(350~550)(LxW）
(650~1000)x(350~550)(LxW）
Max packing speed
25bag/min
25bag/min
Sewing machine head
NP-7A type (japan NEWLONG)
GK35-6 type(Bafang)
Conveyor
type
Chain plate conveyor（L=2.5m)
Leather belt（L=1.6m)
Total power
0.82KW 380V±10% 50Hz
0.8KW 380V±10% 50Hz
Air pressure
0.5~0.7Mpa
0.3~0.5Mpa
- Our Company
-
- Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!
- Packaging & Shipment
-
-After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.
-We can ship machines from any sea port in China.
-We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
