Automatic 6 Lanes Filling Weighing Multilane Sugar Stick Bag Packing Machine

Date:9th July 2021

Introduction:

The complete packing line includes:

Quantity

1.Vacuum feeder

2. Cup filler

3.6-lanes 4 side sealing packing machine

1set

1set

1set

Advantages:

1

The machine is suitable for Suitable to package granules ,such as sugar,salt,coffee, etc

2

All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

3

Double servo motors for film drawing down system;

4

Packing materialBOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

5

Automatic film rectifying deviation function;

6

Famous brand PLC. Pneumatic system for vertical and horizontal sealing;

7

It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.

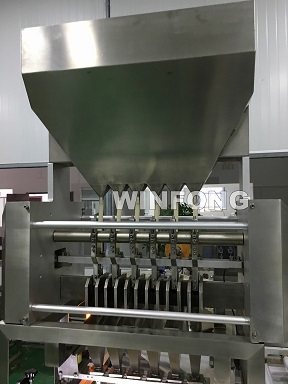

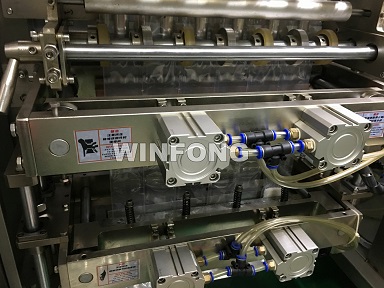

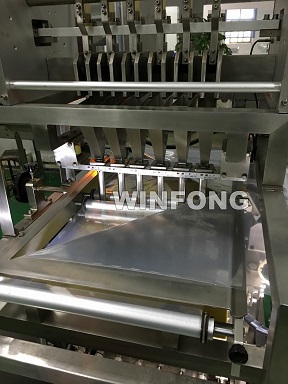

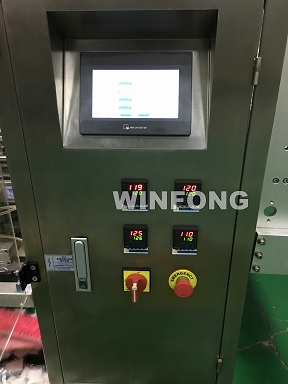

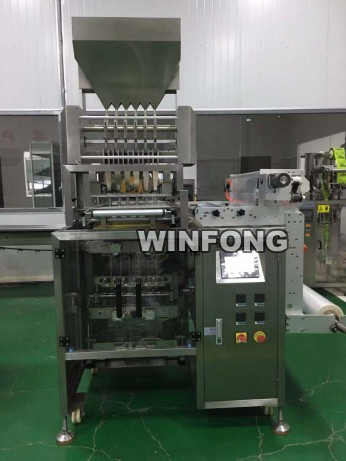

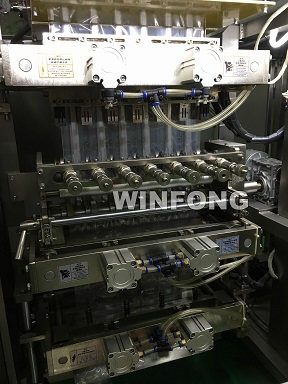

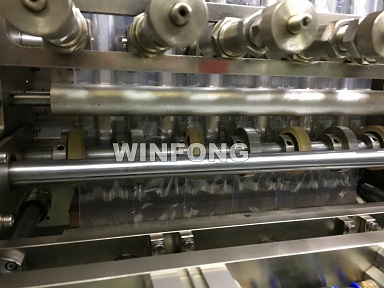

Machine detailed photo:

Technical parameters:

Model

WF720K-6

Capacity

Max.35bags/min

Bags size

Length: 45--120mm

Width: 35--120mm

Film width

Max.720 mm

Film thickness

0.05-0.10mm

Air consumption

0.8Mpa  0.8m3/min

Power source

1N+PE/50HZ/AC220V/4.9kw

Dimension

L1685 x W1300x  H2030mm

Weight

400kg
