Granule Packaging Machine

VFS50-A / VFS70-A Stand Up Valve Bag Packing Machine

MOQ:1set
Original:China
Delivery time: 45 working days
Package:export standard wooden case
INQUIRY

Machine video:

Introduction:

This packing unit integrates one set Z type elevator,one set 10/14 multi-heads weigher, one set auto stand-up valve bag packaging machine, one set take off conveyor. With functions of auto weigh,fill, bag-forming,valve-adding,date printing,sealing,etc. Bag shape is nice, adopts roll film,reduce packing material cost.

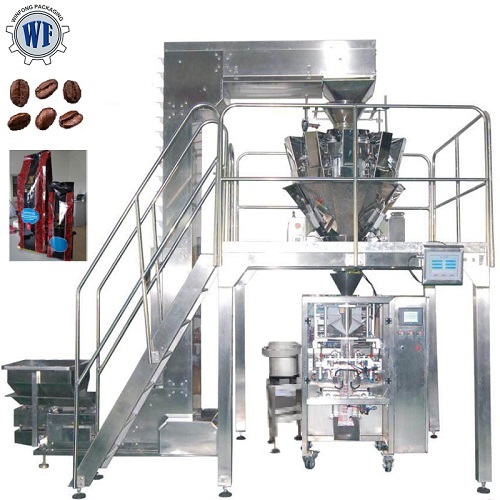

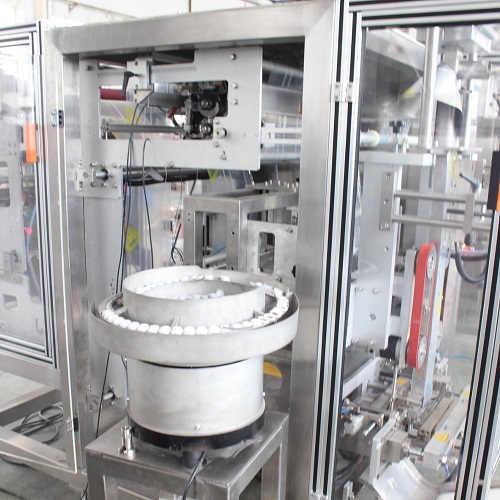

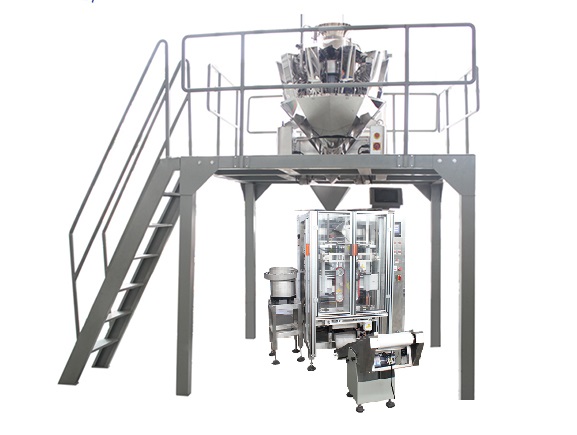

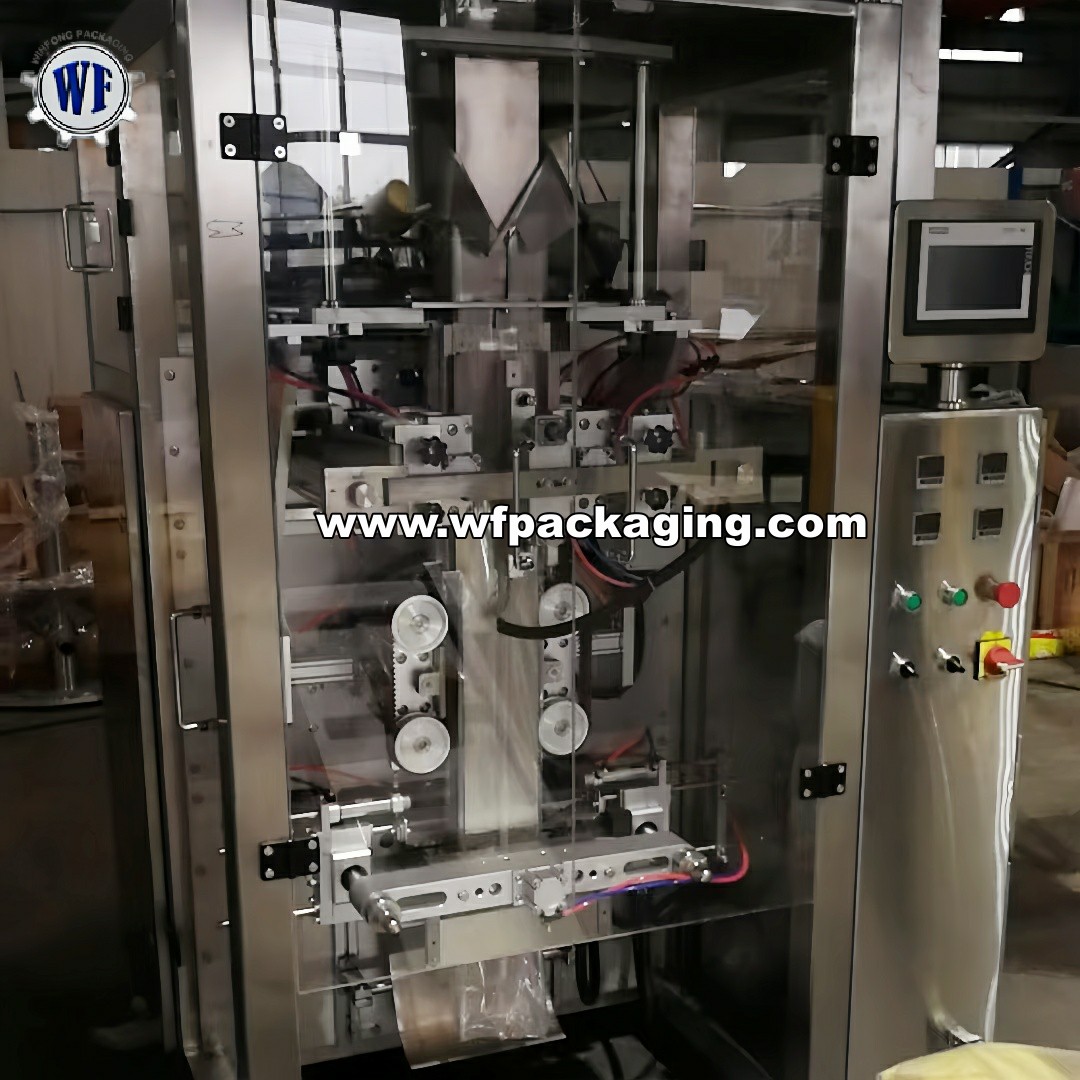

Machine picture:

Main Features:

No.	Features
1	Four corners are added on the packaging bag based on vertical bag, making the packaging bag have a stronger spatial vision, nicer appearance and more attraction.
2	This packaging machine adopts imported servo motor for paper feed and the man-machine interface uses advanced touch screen, making operation simpler and more convenient.
3	All the electrical components and control components adopt local and foreign well-known brands with reliable performance, such as Siemens PLC and touch screen, Panasonic converter and servo motor, Schneider and Omron electrical components, etc. Man-machine dialogue platform, both the operator and debugging personnel can set parameters through the touch screen.
4	This machine integrates bag-making, filling, sealing, printing, punching and counting, valve-welding into one.
5	This machine can help customer to increase factory automation, reduce labor ,improve efficiency largely

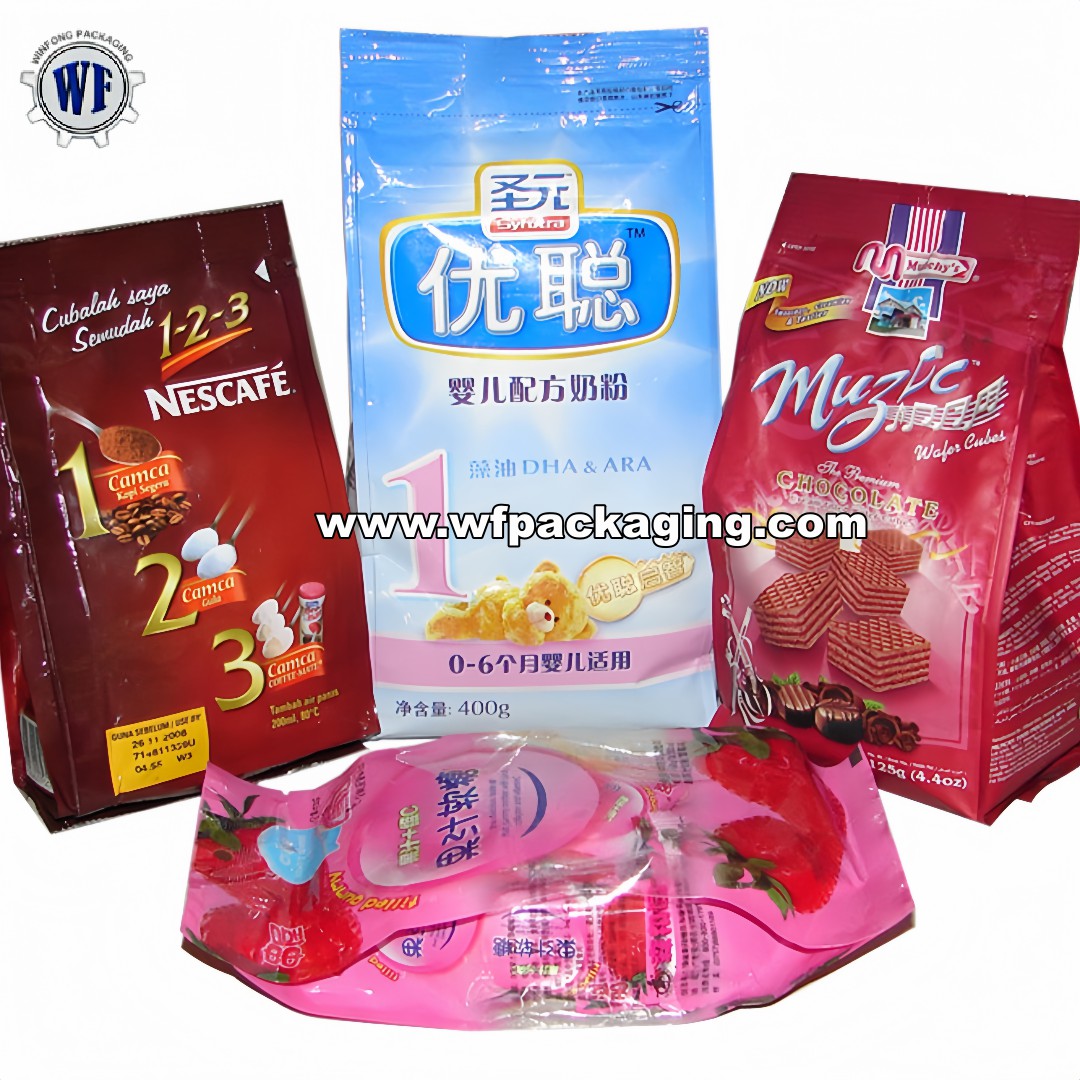

Sample bags:

Working Progress:

Feeding elevator feeding products in hopper of weighing machine→Weighing machine will weighing and filling powder at target weight→packing machine automatically realize functions of box type bag making ,forming, filling ,sealing, date-printing, cutting,adding air release valve,ect.→the finished bags will be took off by belt conveyor

Technical Parameters:

Model	VFS50-A	VFS70-A
Weight range	200g~1kg	100g-5kg
Bag type	Box type bag	Box type bag
Packaging speed	10 -40bags/min(according the packaging weight and the bag size );	10 -30bags/min(according the packaging weight and the bag size );
Weight accuracy	±0.2%	±0.2%
Belt-pulling motor	Servo motor	Servo motor
Bag size	Front width:50-190mm; Side width: 35～90 mm Length 100-420mm; Side sealing width:5~8mm	Front width:60-260mm; Side width: 45～120 mm Length 100-460mm; Edge sealing width:5~10mm
Compressed air consumption	0.6 MPa 350 L/min	0.6 MPa 350 L/min
Electric requirement	380 V/5.5 kW50 Hz	380 V/6.5 kW50 Hz

Our Company

Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

Packaging & Shipment

-After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.

-We can ship machines from any sea port in China.

-We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
