Granule Packaging Machine

  • WF420-W Dual Type Salt ,Rice Packing Machine

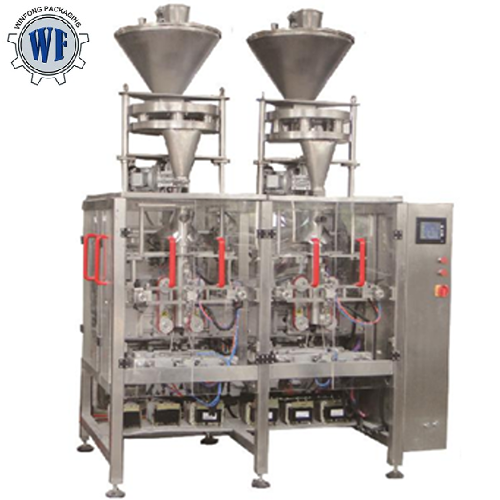

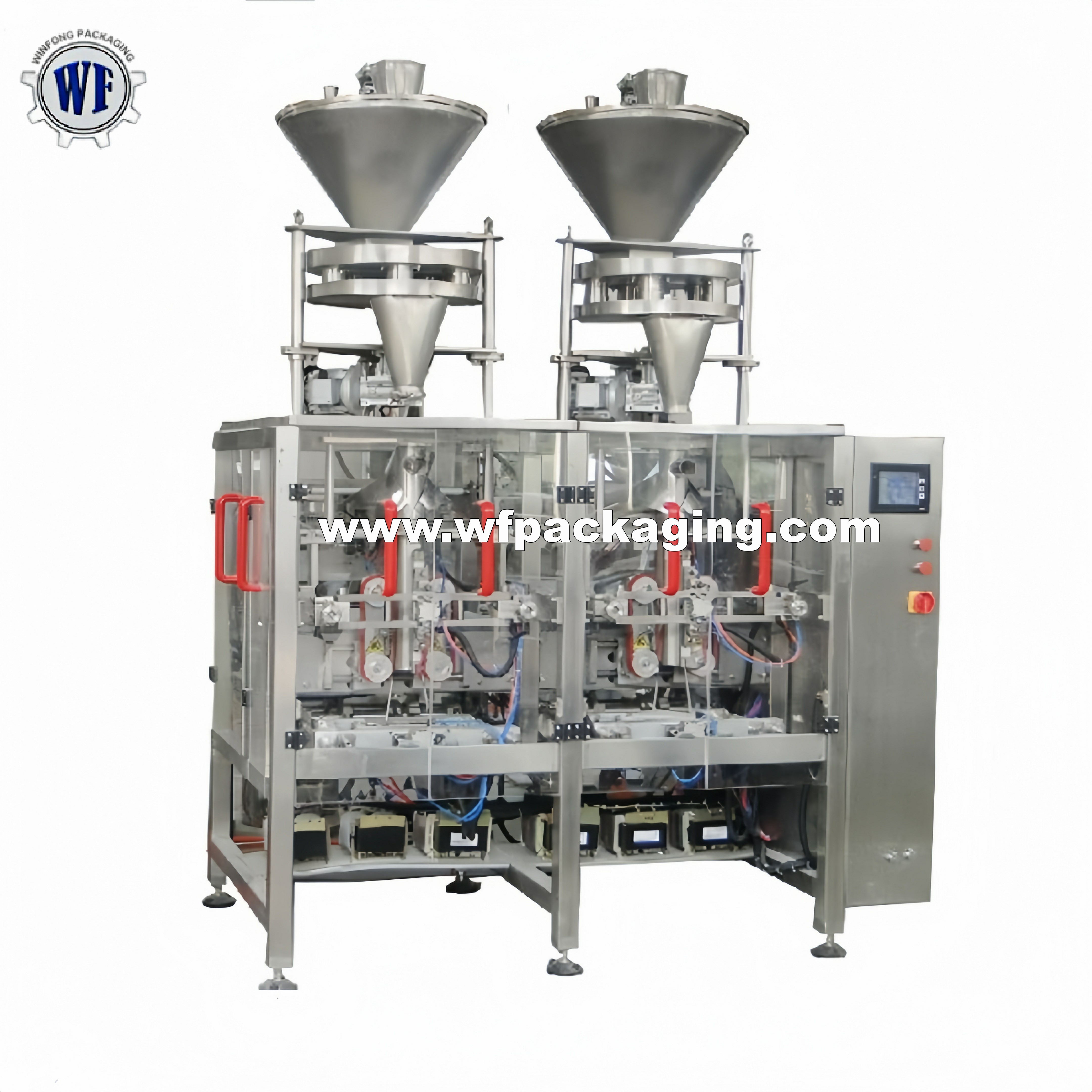

WF420-W Dual Type Salt ,Rice Packing Machine

WF420-W Dual Type Salt ,Rice Packing Machine

  • MOQ:1set
  • Original:China
  • Delivery time: 25 working days
  • Package:export standard wooden case
  • INQUIRY


  • Machine Introduction
  • Product Constitute:

    The complete packing line includes:

    Quantity

    1.cup filler;

    2.WF420-W Automatic packaging machine;


    4.Take-off conveyor ;

    2set

    2set

    2set


    Advantages:

    Cup weighing filling machine


    Simple designed structure

    Good speed and lower cost

    Made by stainless steel 304 or 316L

    With storage hopper for connecting the feeding elevator

    Manual set parameters on touch screen

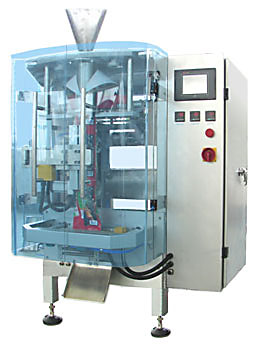

    WF420-W Automatic packaging machine




    Machine fully controlled by Siemens or Omron PLC&Touch screen

    Capacity can automatic display on touch screen

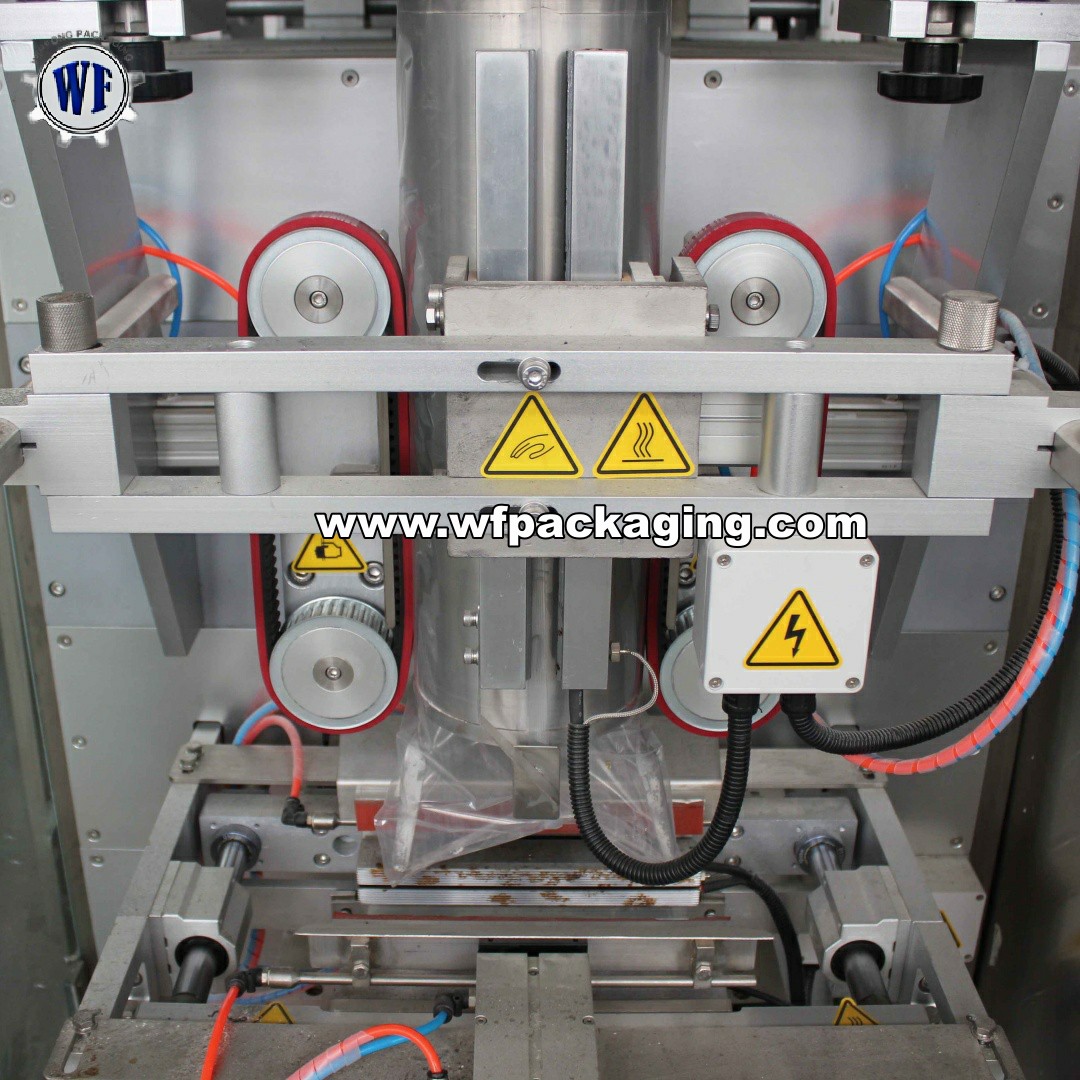

    Film transport system and horizontal jaw motion both be drived by Panasonic motor

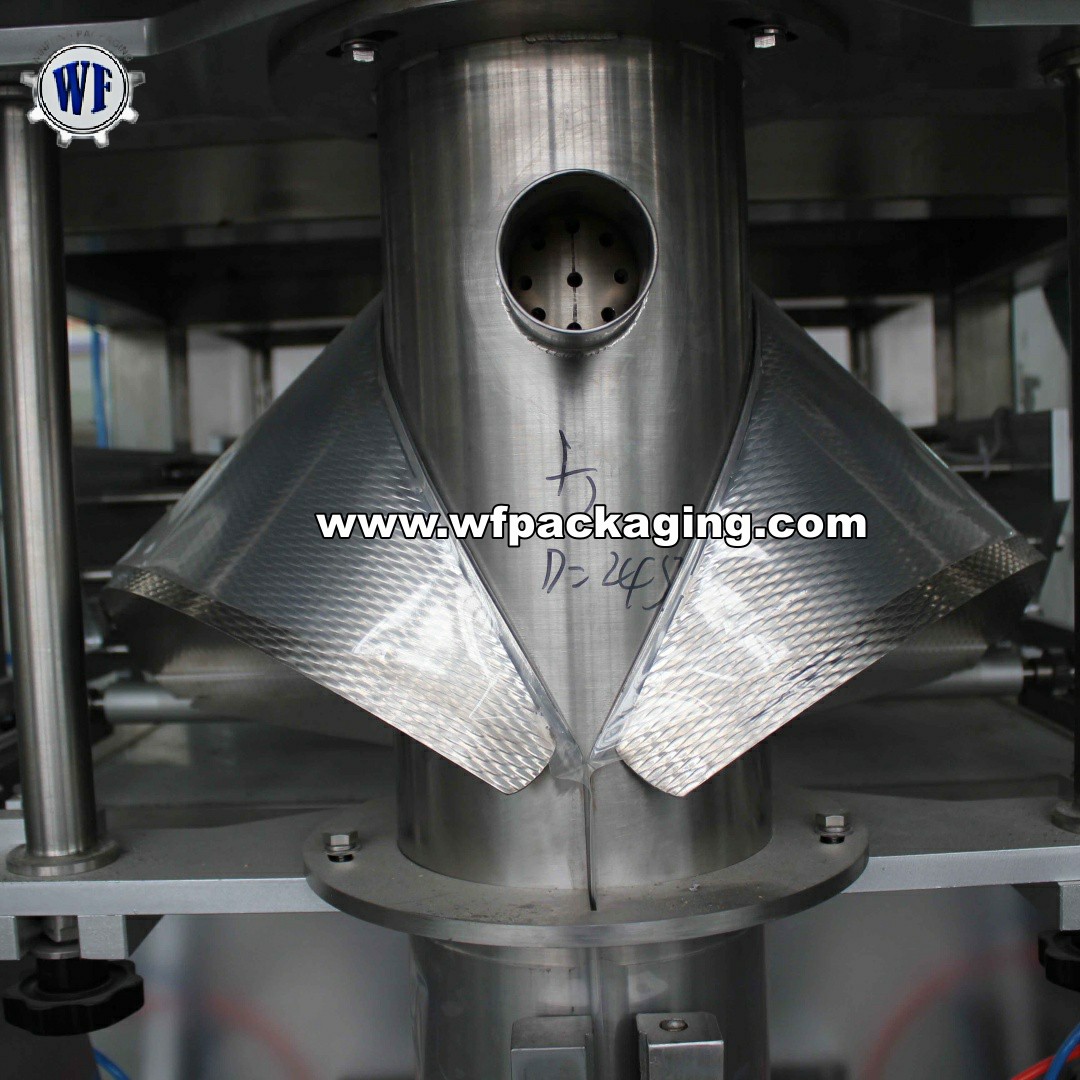

    Change former by pulling out the braket safely quickly

    Photoelectricity detect film position on collar to correct film excursion

    Electric photo sensor inducting color code to control bag length

    Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting

    Independent temperature adjustment& code printing

    Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine


    Application:

    Type

    Material

    Granule

    Salt, grain, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts, etc.

    Working Progress:

    a). 2 sets of DT1 screw elevator feed materials to hopper of the cup filler;

    b). Multi-head 2 sets cup filler will weighing and filling materials at target weight automatically together;

    c). 2sets WF420-W bagging machine realize bag-making, filling, date printing, sealing, cutting, together;

    d). 2 sets take-off conveyor will convey out the finished bags automatically together.


    Technical parameters:

  • Metering material

    100~500g granules

    Bag type

    pillow type/gusset bag

    Bag material

    Laminated film

    Bag size

    (50mm-280mm)*(70mm-180mm)(L*W)

    Max packaging speed

    100~120bpm

    Compressed air

    0.6MPa. 0.6m3/min

    Power supply

    AC380V 3 Phase 8KW


  • Our Company
  • Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!


  • Packaging & Shipment

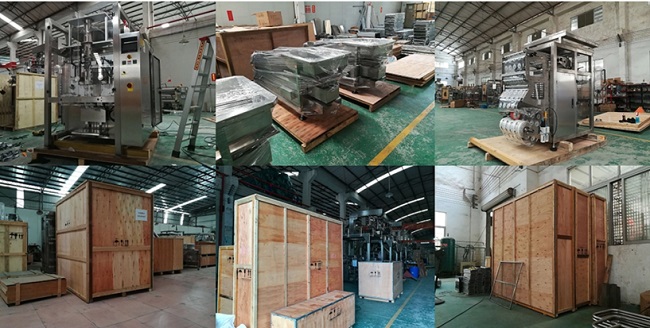

  • -After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.
