Powder Packaging Machine

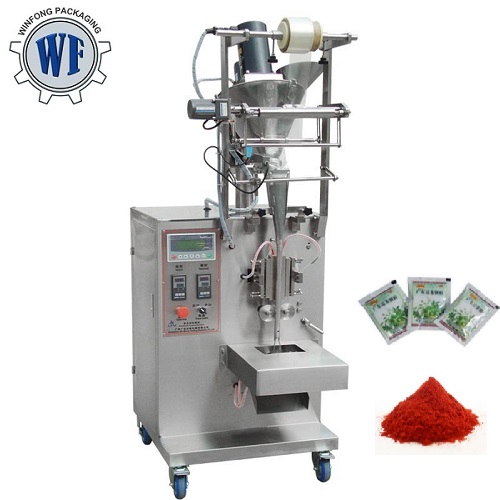

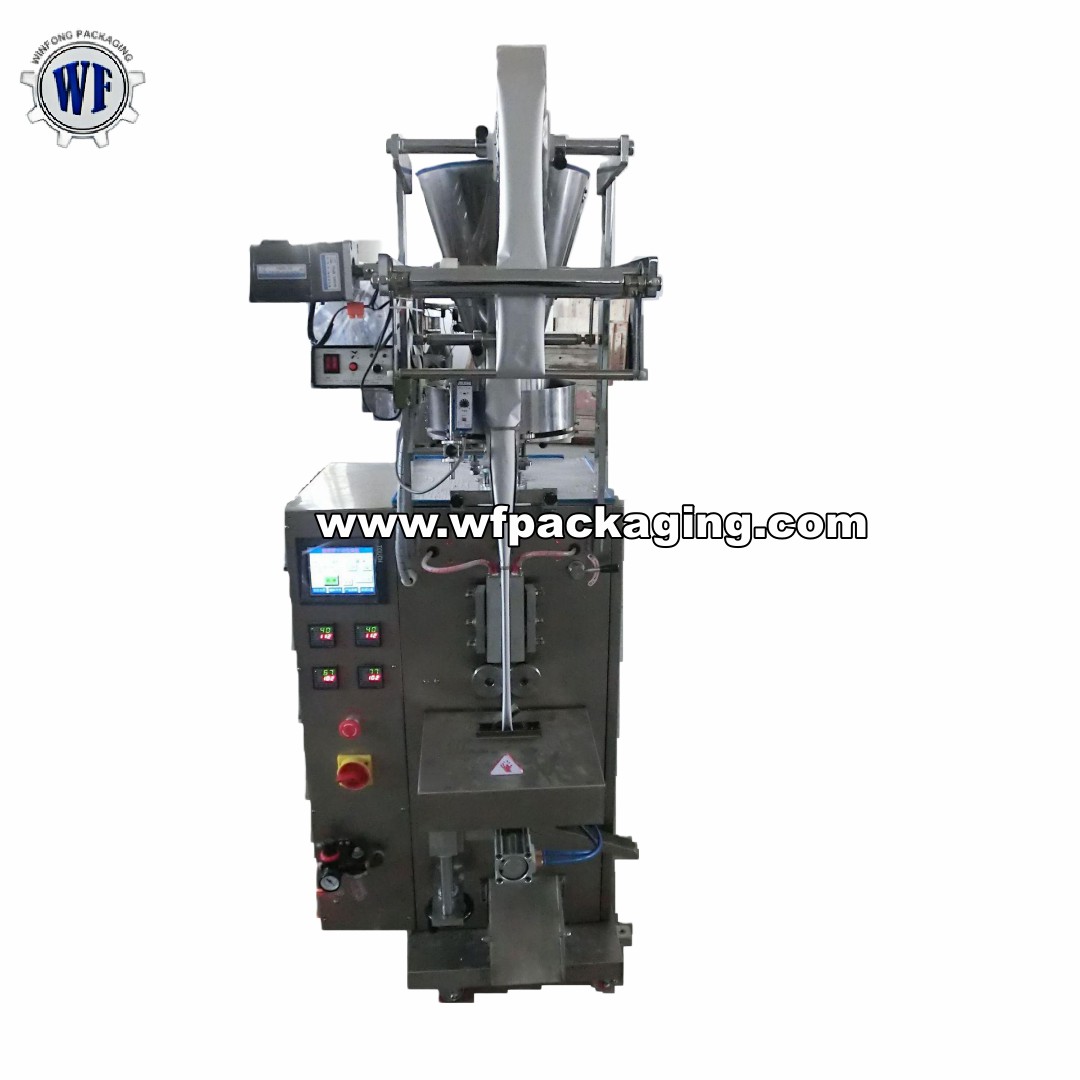

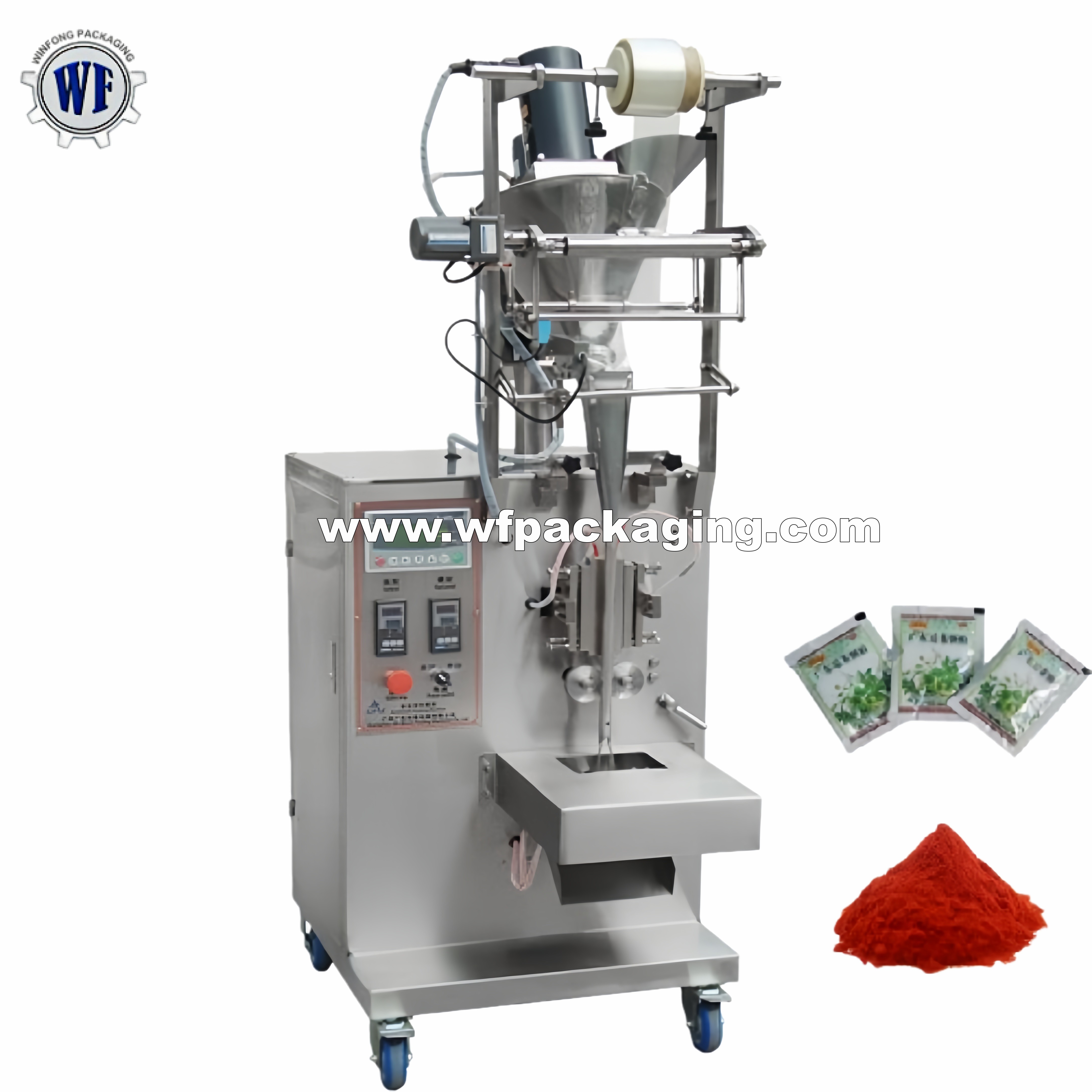

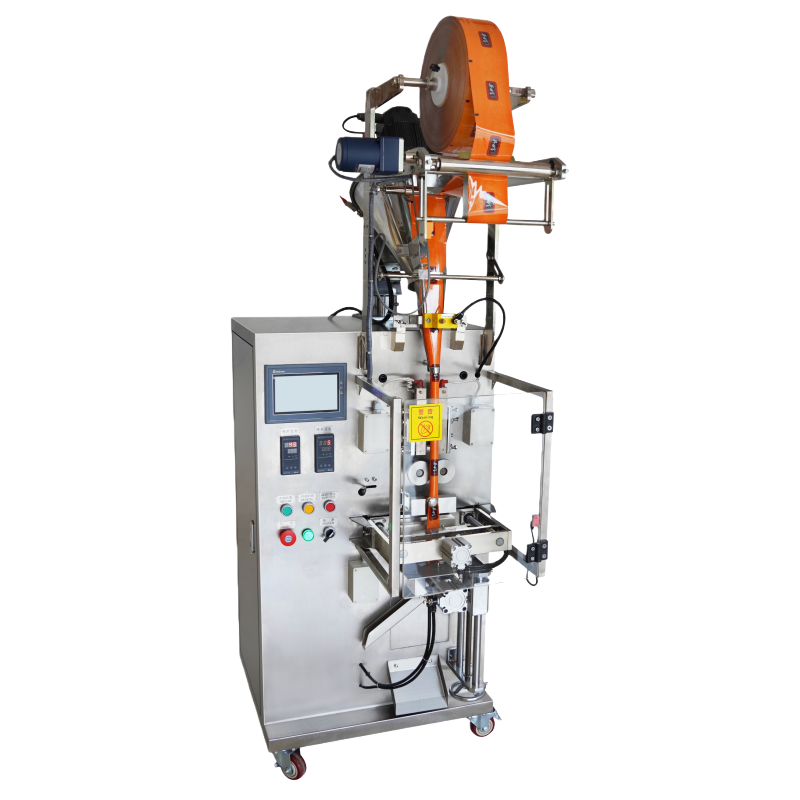

WF60P Automatic Powder Sachet Packing Machine

MOQ:1set
Original:China
Delivery time: 35 working days
Package:export standard wooden case
INQUIRY

Machine Introduction

Constitute：

The complete packing line includes:

Quantity

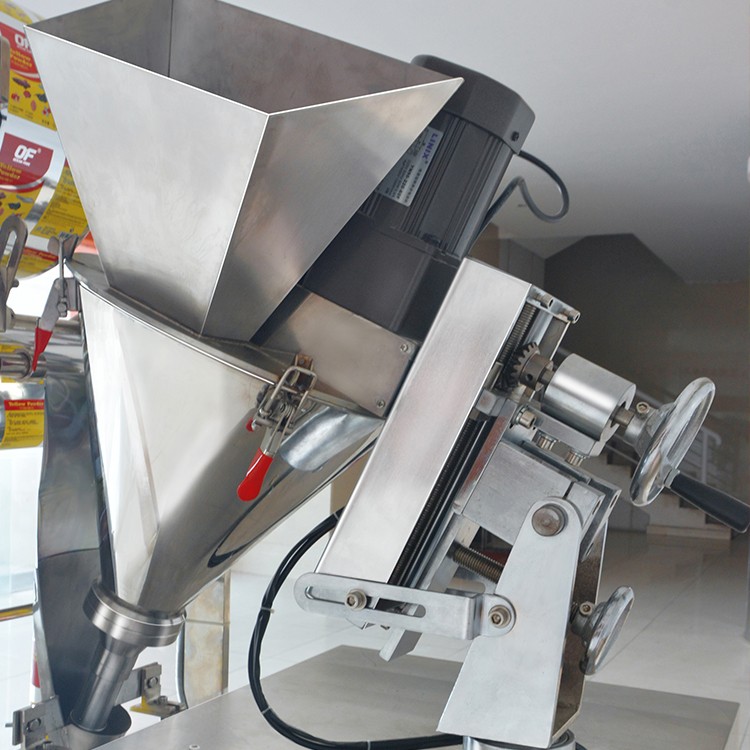

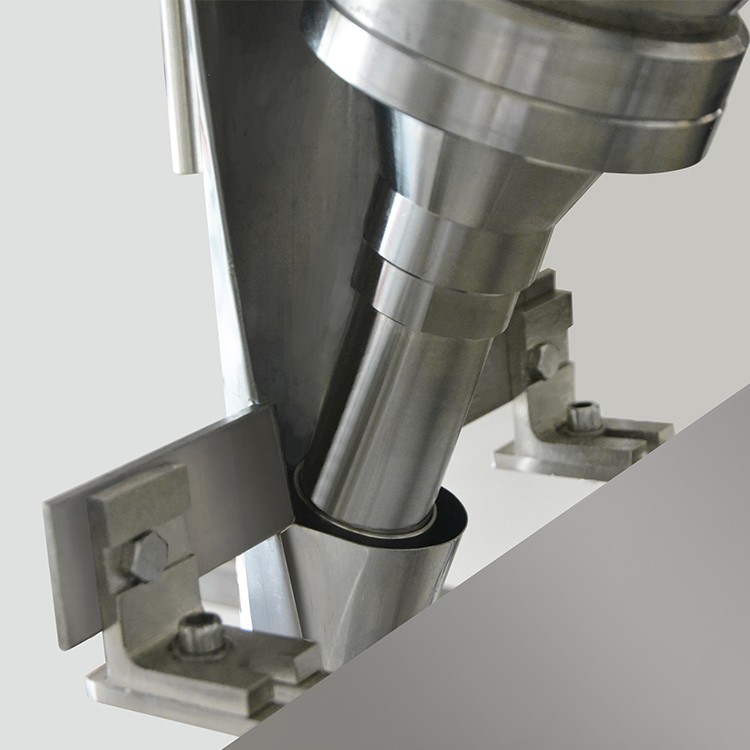

1. Auger filler

2.Sachet packing machine

1set

Advantages:

1	Automatic packing machine can finish the process like conveying bag,filling,weighing,sealing,cutting,counting,lot number,etc.
2	2.7 inch touch screen,Mitsubishi, Japan PLC control, stainless steel cabinet.Set up the required data(include filling,weighing,bag size,etc) in the visuable settings,the control system automatic optimization match with all the program so that achieve the best packing speed precisely.
3	Stepper Motor control,this system has the advantage of precise,needless to adjust the other parts.
4	It has color system controller,so that can get the complete trade mark design.
5	Suitable for the complex film and tin foil and other packing material.Fine packaging performance,low noise,clear sealing texture and strong sealing performance.

Application:

Working Progress:

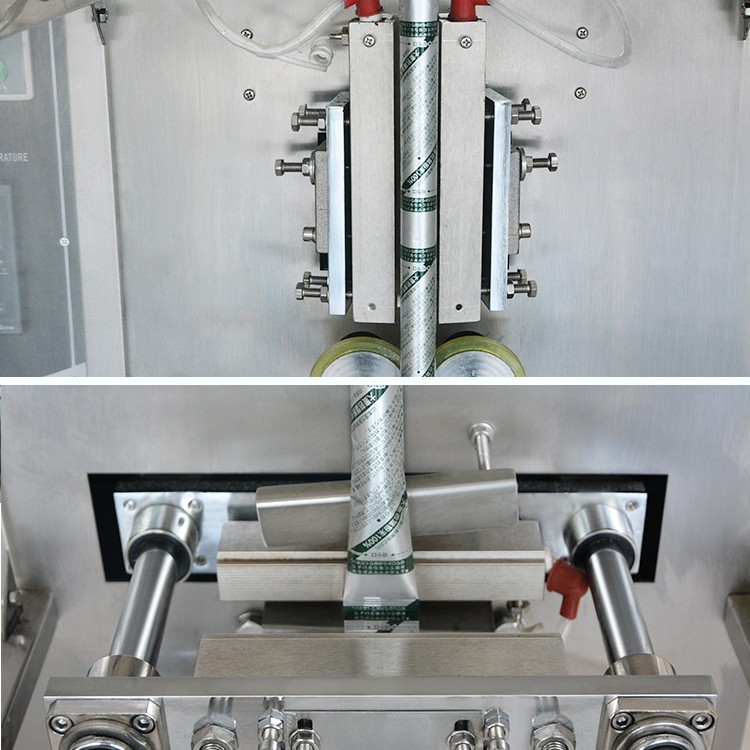

Auger filler will weighing and filling materials at target weight automatically → VFS bagging machine realize bag-making, filling, date printing, sealing, cutting, etc.

Technical parameters:

Model	WF60P
Capacity	30-40bags/min
Measuring range	1-100ml
Bag size	（L）40-200、（W）20-100mm
Max film width	220mm

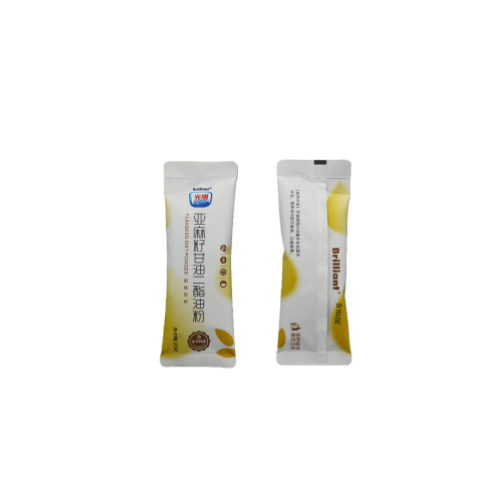

Sealing type	Back seal
Power	1350w
Net weight	260kg
Voltage	220V/50-60HZ、380V/50HZ
Packing material	aper/PE,Polyester/aluminum foil/PE,nylon/polyethylene,tea filter paper,etc.
Overall size	L800×W800×H1700mm

Our Company

Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

Packaging&shipment

-After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.

-We can ship machines from any sea port in China.

-We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
