Granule Packaging Machine

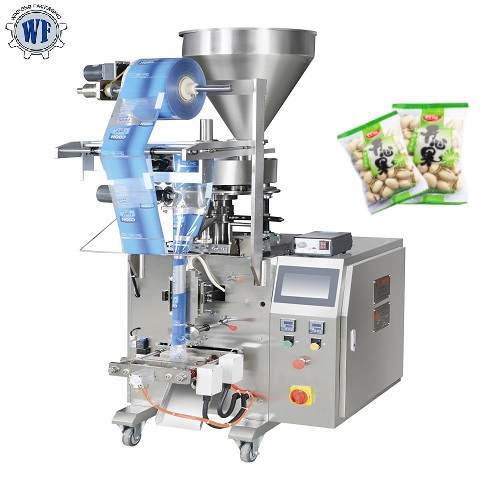

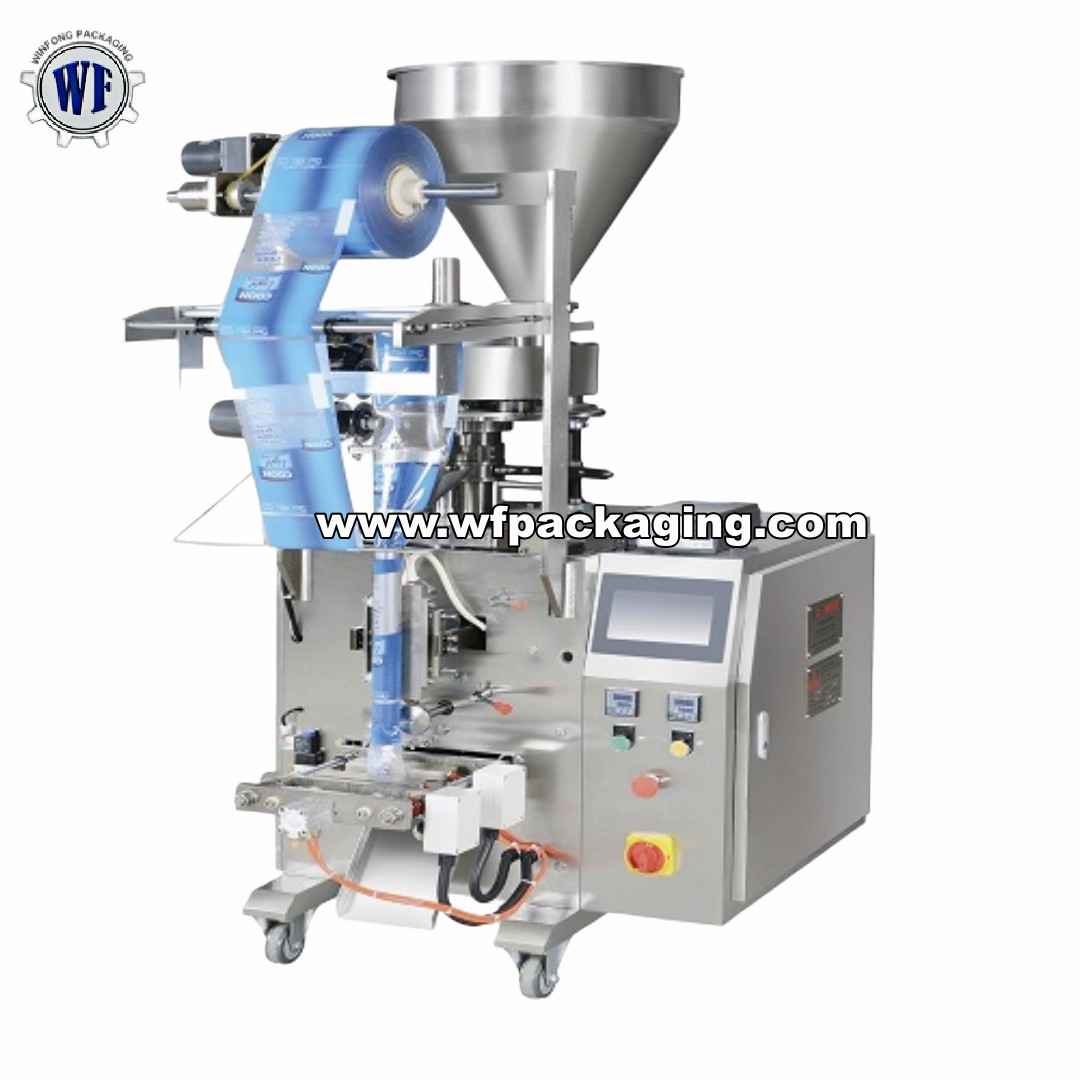

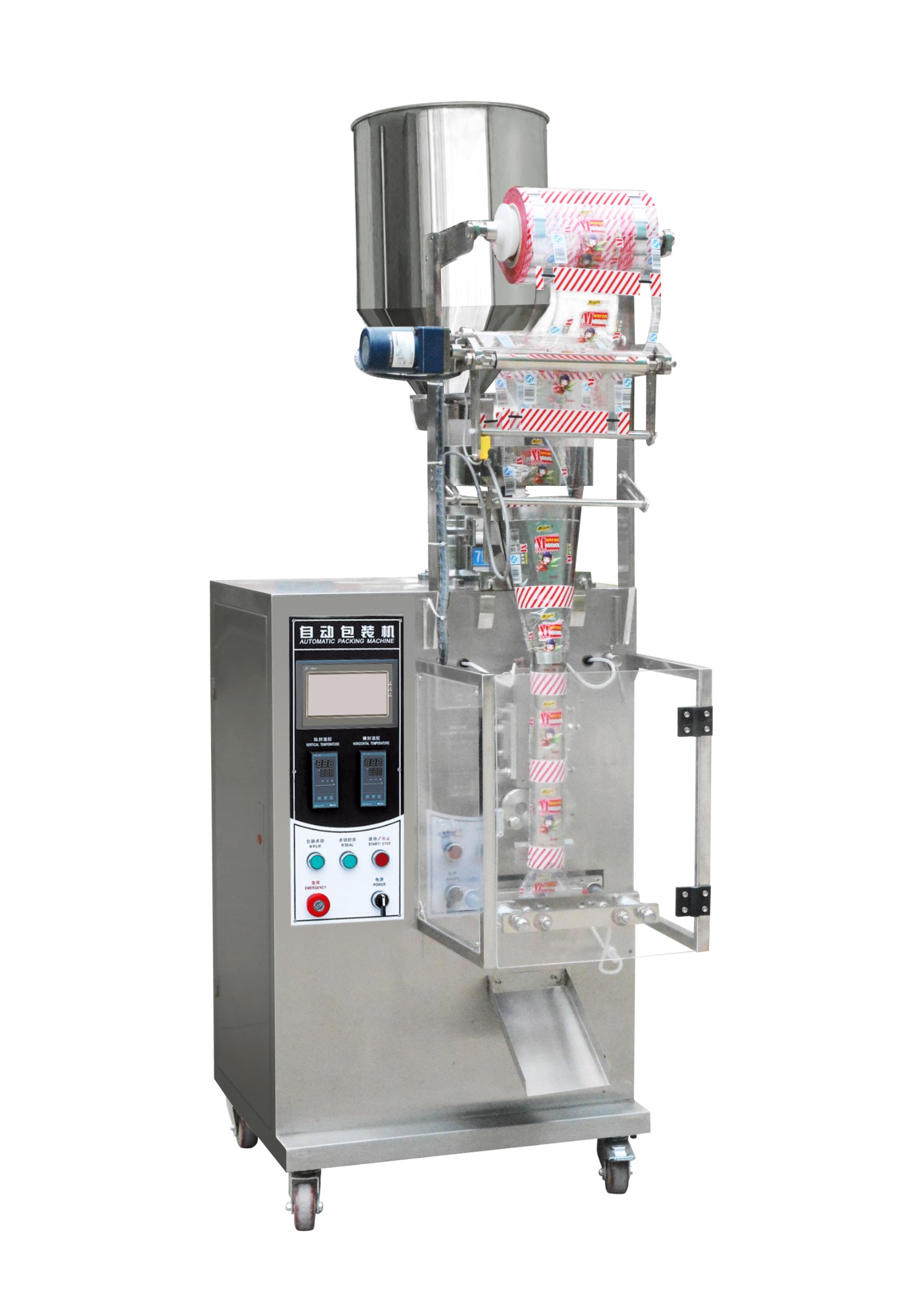

WF60G Automatic Granule Sachet Packing Machine
- MOQ:1set
- Original:China
- Delivery time: 35 working days
- Package:export standard wooden case
- Machine Introduction
-
- Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!
-
-After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.
-We can ship machines from any sea port in China.
-We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
Constitute：
|
The complete packing line includes: |
Quantity |
|
1. Cup filler 2.Sachet packing machine |
1set 1set
|

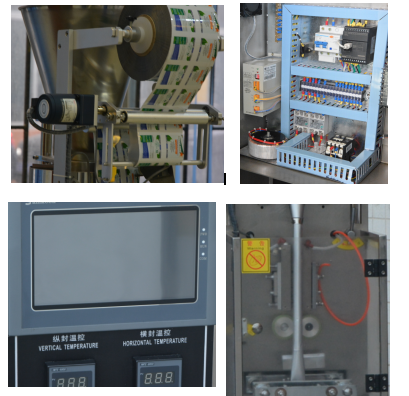

Advantages:
|
1 |
Automatic packing machine can finish the process like conveying bag,filling,weighing,sealing,cutting,counting,lot number,etc. |
|
2 |
2.7 inch touch screen,Mitsubishi, Japan PLC control, stainless steel cabinet.Set up the required data(include filling,weighing,bag size,etc) in the visuable settings,the control system automatic optimization match with all the program so that achieve the best packing speed precisely. |
|
3 |
Stepper Motor control,this system has the advantage of precise,needless to adjust the other parts.
|
|
4 |

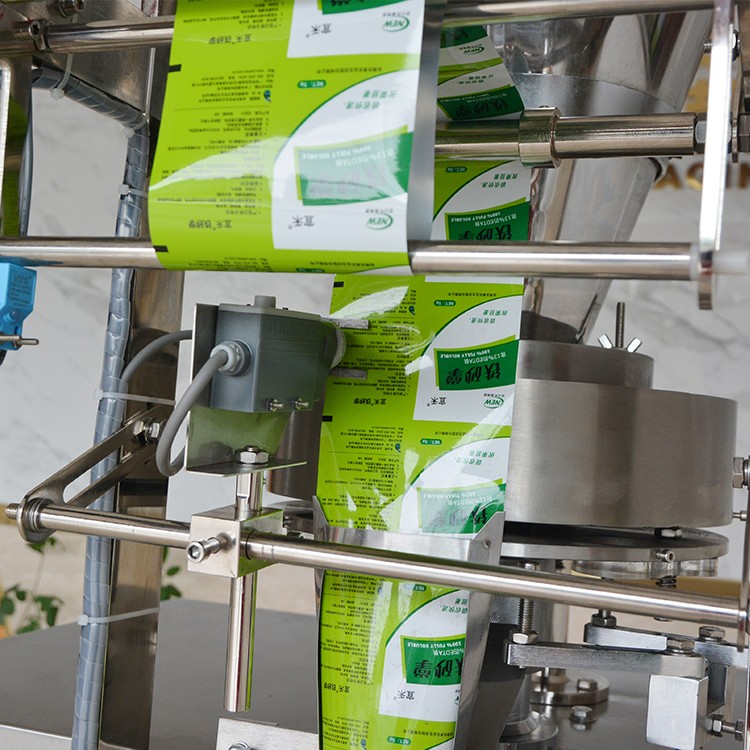

It has color system controller,so that can get the complete trade mark design. |
|
5 |
Suitable for the complex film and tin foil and other packing material.Fine packaging performance,low noise,clear sealing texture and strong sealing performance.
|
Application:
Working Progress:

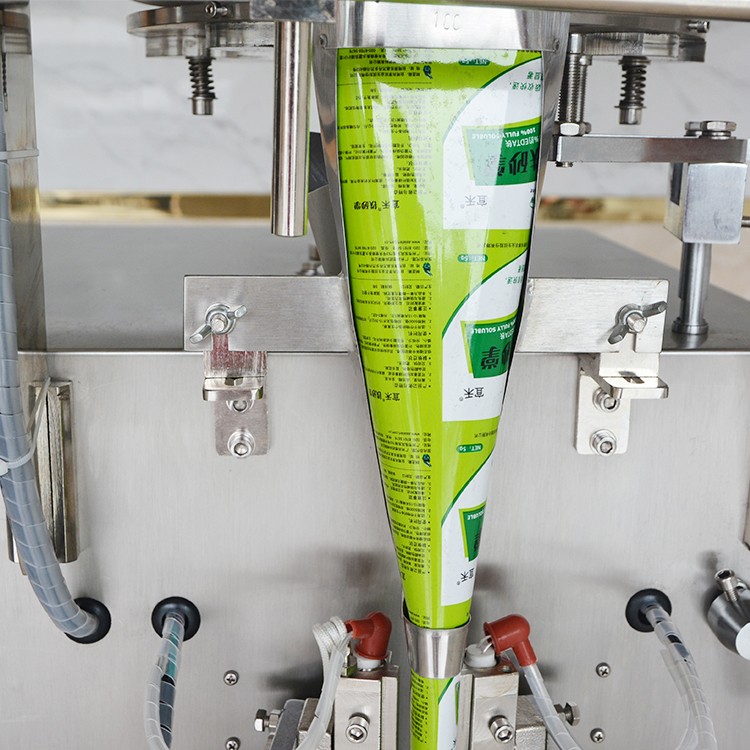

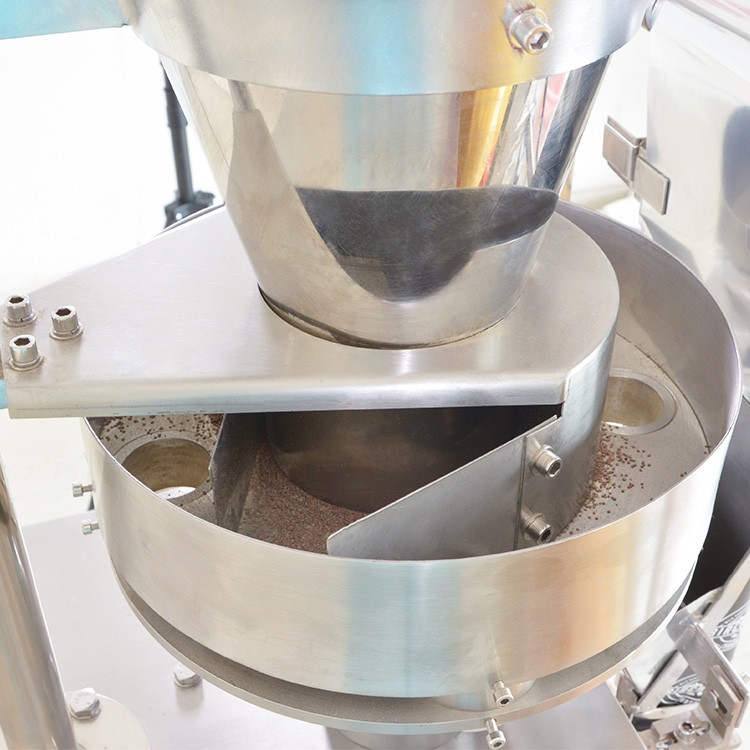

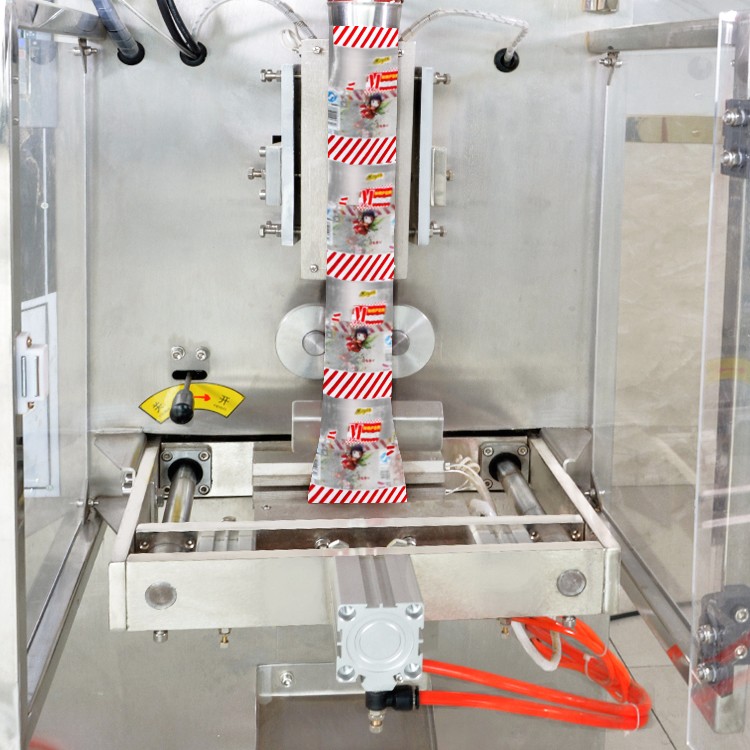

Cup will weighing and filling materials at target weight automatically → VFS bagging machine realize bag-making, filling, date printing, sealing, cutting, etc.
Technical parameters:
|
Model |
WF60G |
|
Capacity |
30-60bags/min |
|
Measuring range |
1-100ml |
|
Bag size |
（L）40-200、（W）20-100mm |
|
Max film width |
220mm |
|
Sealing type |
Back seal |
|
Power |
1350w |
|
Net weight |
260kg |
|
Voltage |
220V/50-60HZ、380V/50HZ |
|
Packing material |
aper/PE,Polyester/aluminum foil/PE,nylon/polyethylene,tea filter paper,etc. |
|
Overall size |
L800×W800×H1750mm |
