Granule Packaging Machine

  • DUPLEX twin type automatic packing machine for snacks

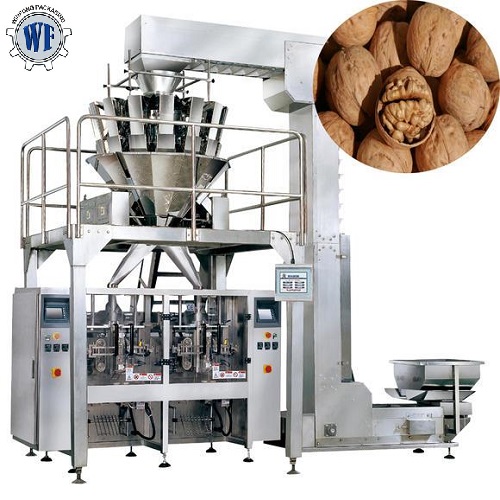

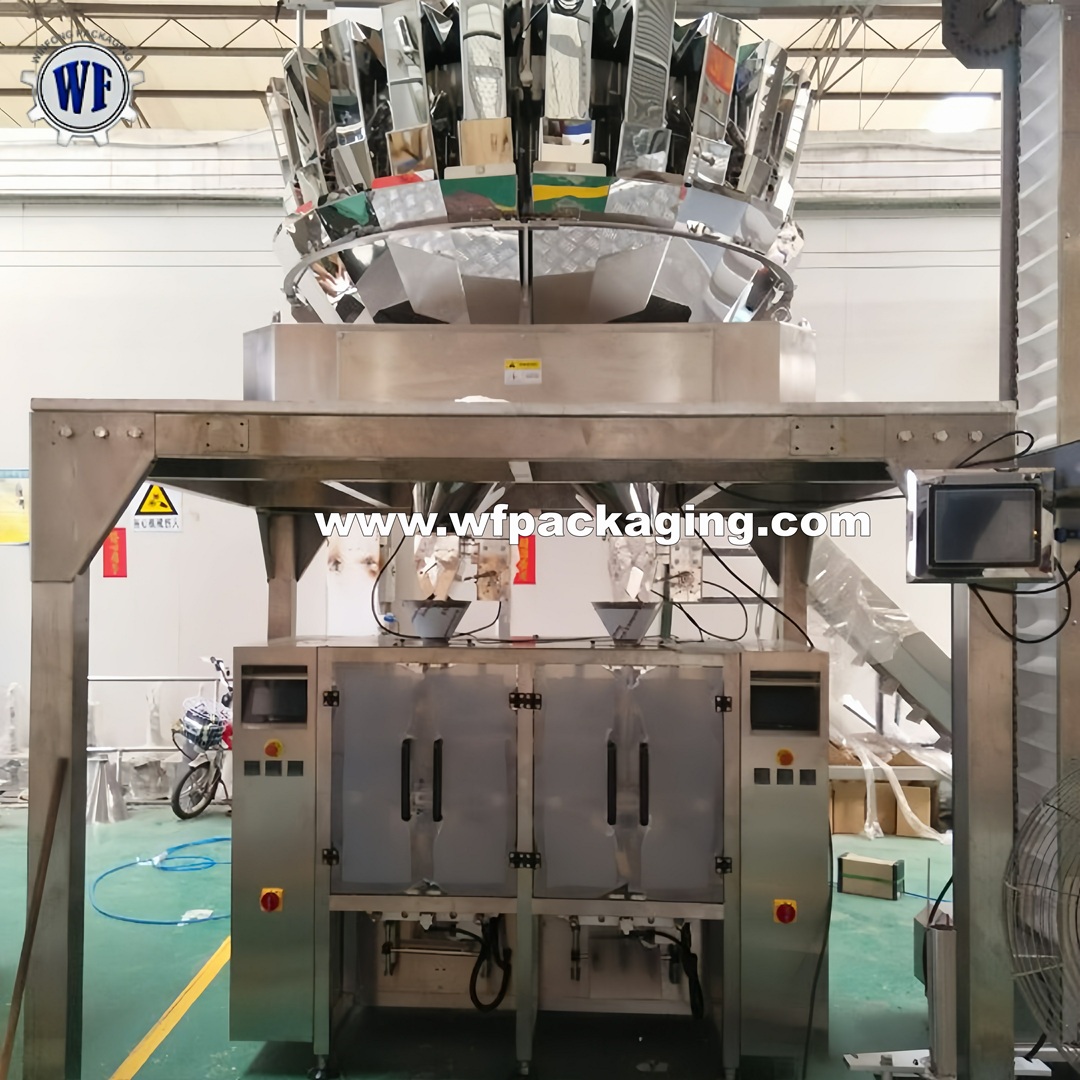

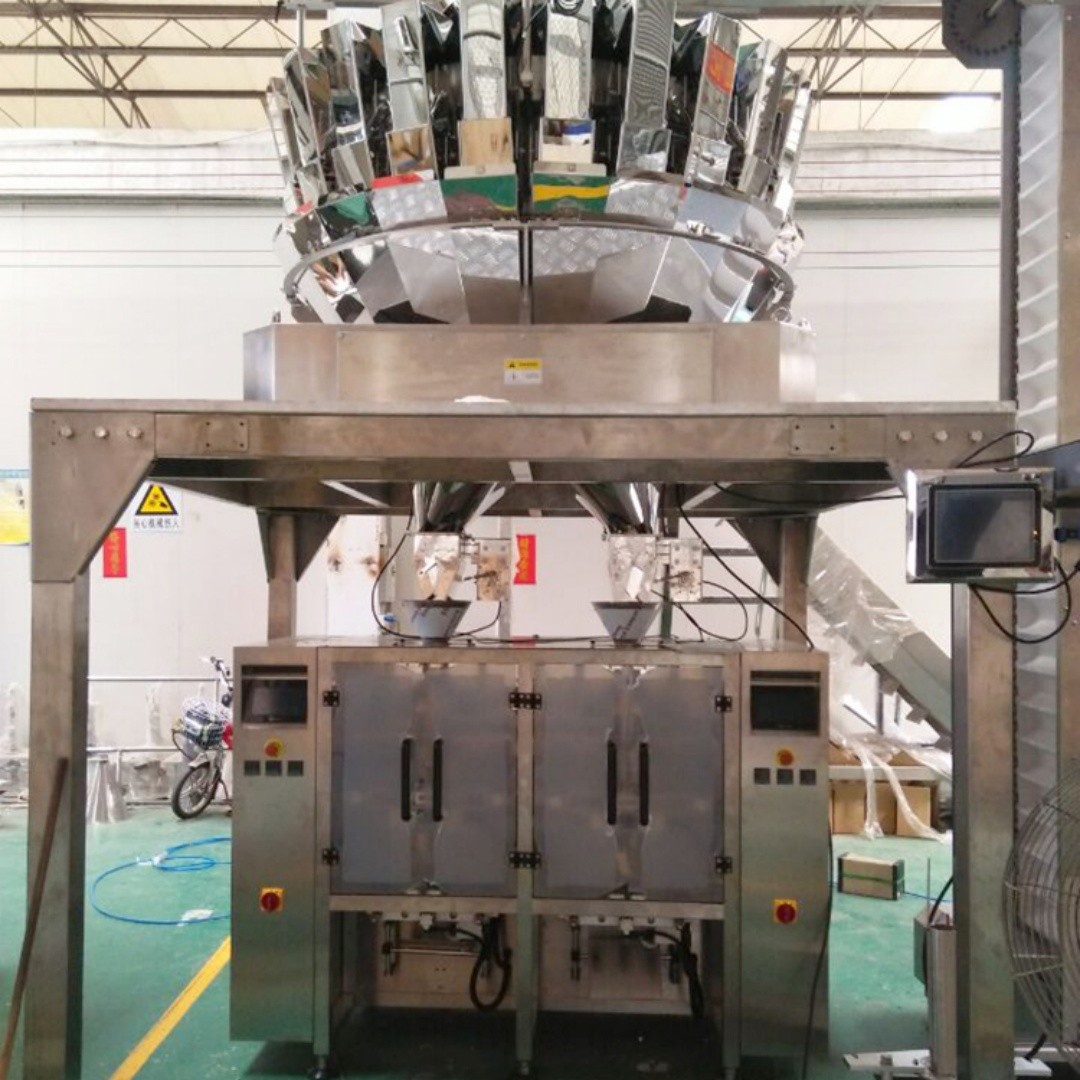

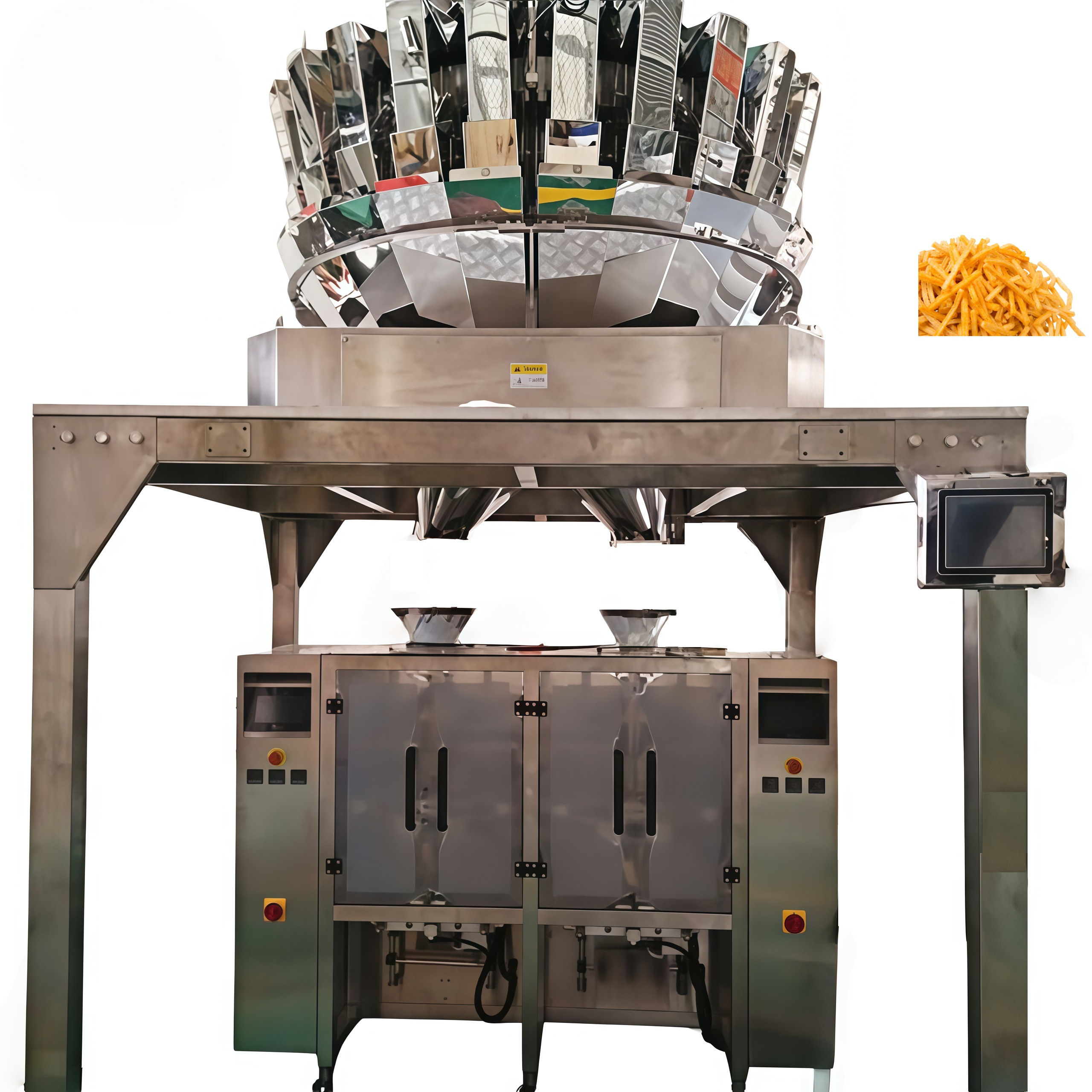

DUPLEX twin type automatic packing machine for snacks

DUPLEX twin type automatic packing machine for snacks

  • MOQ:1set
  • Original:China
  • Delivery time: 35 working days
  • Package:export standard wooden case
  • INQUIRY


  • Machine Introduction


    Constitute

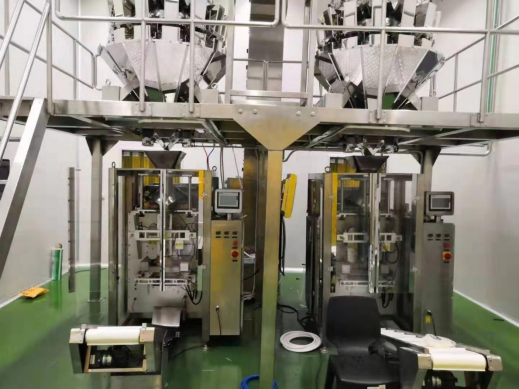

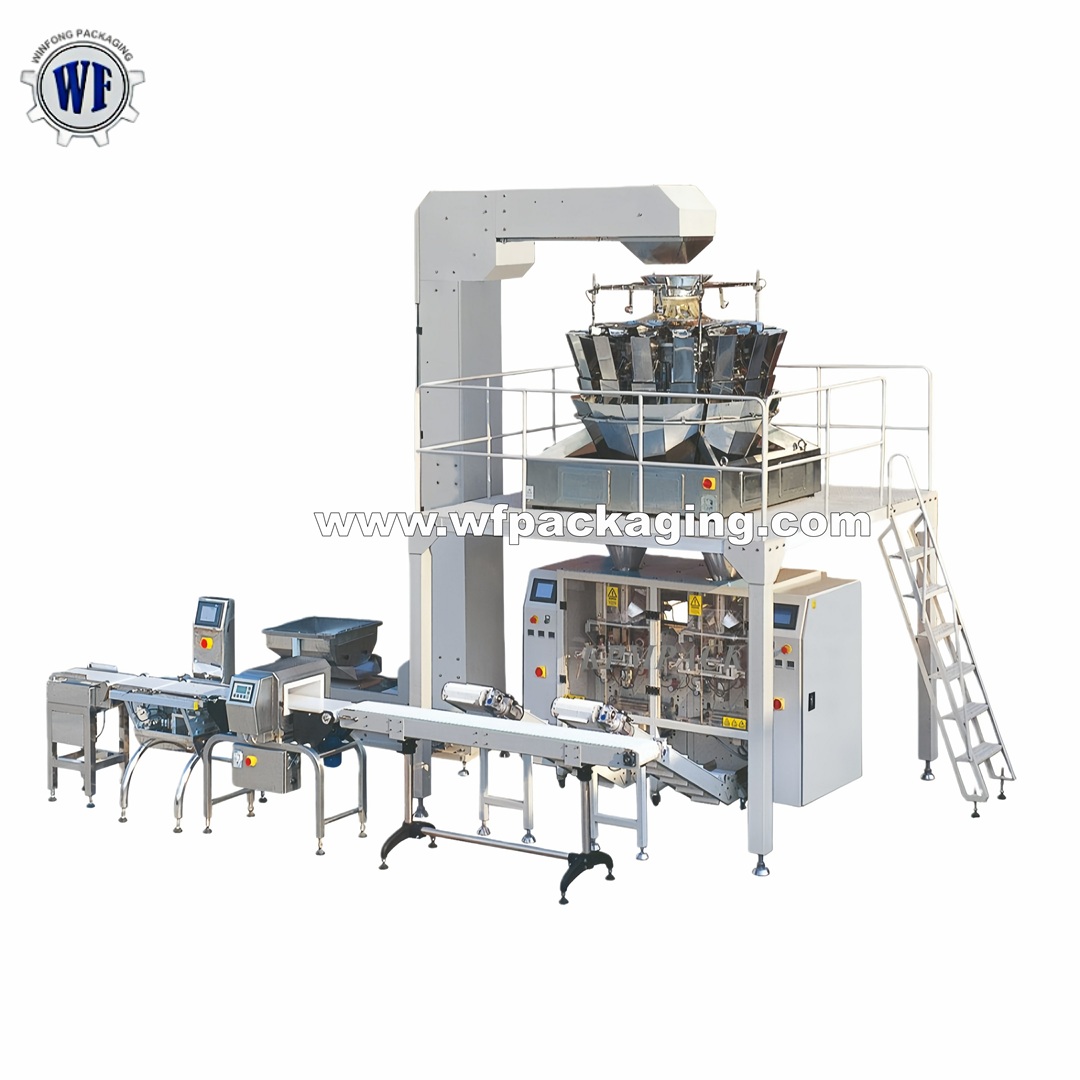

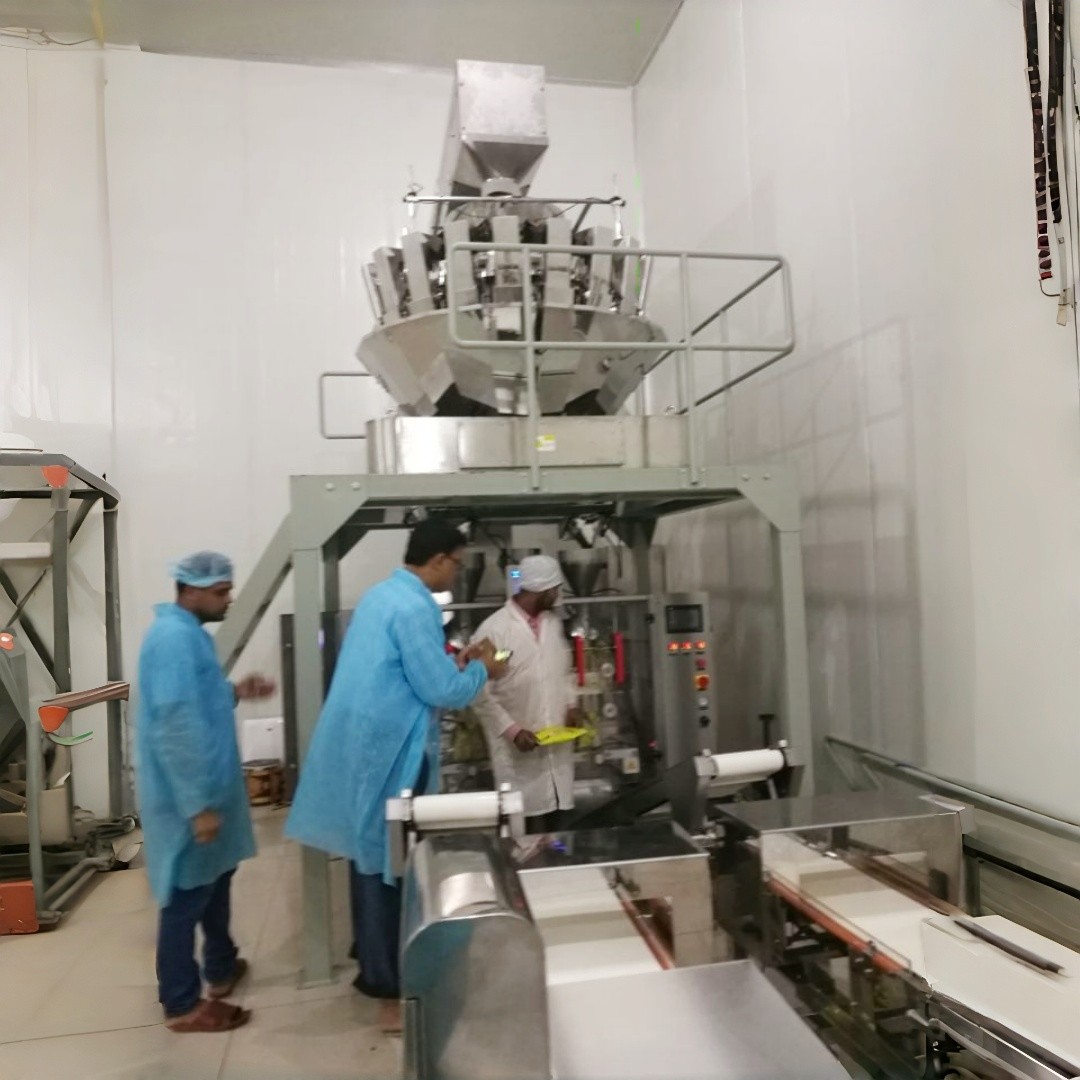

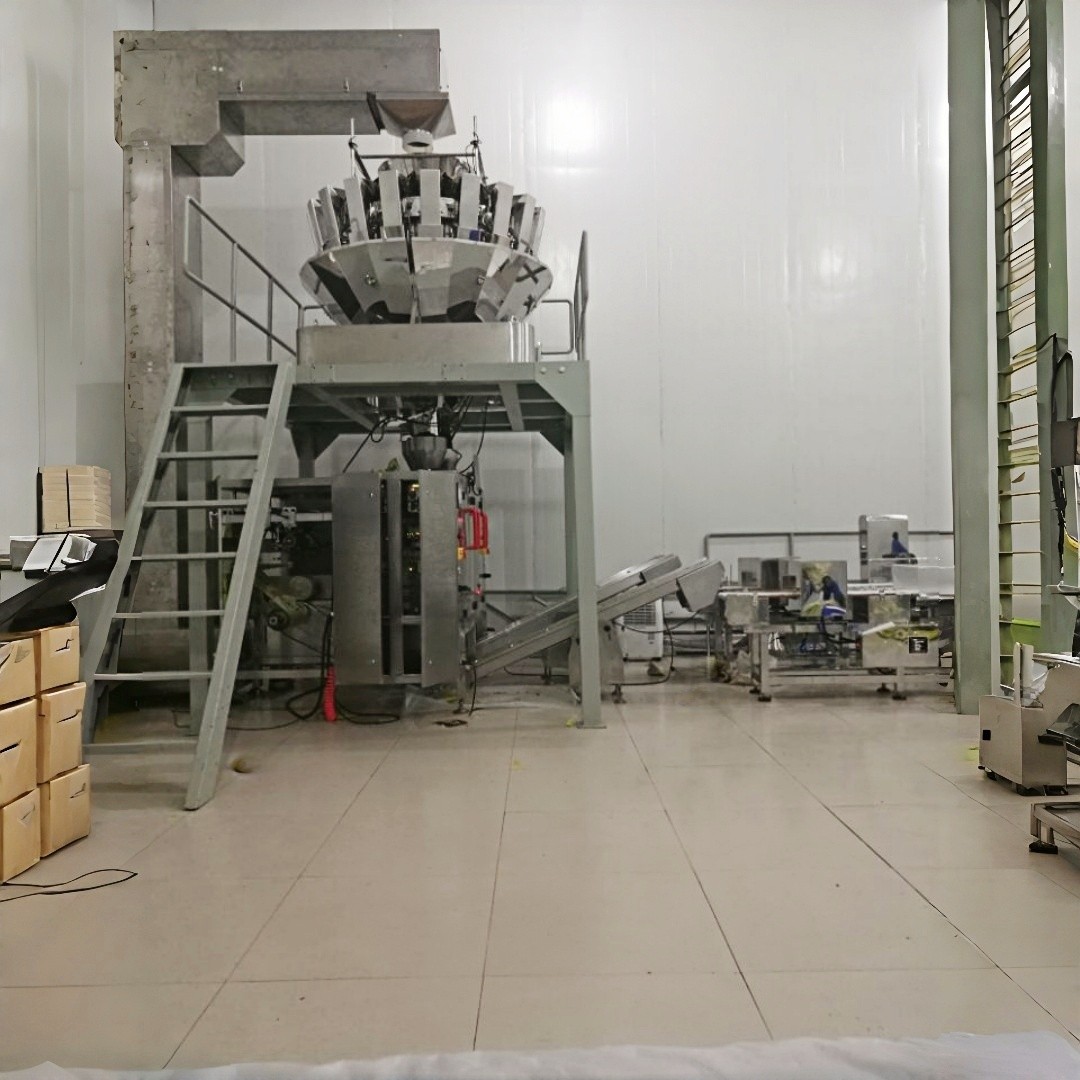

    The complete packing line includes:

    Quantity

    1. MHW10 combination head weigher

    2. Z type bucket elevator

    3. WF520-W packing machine

    4. Take-off conveyor

    5. Platform

    2sets

    2sets

    2sets

    2sets

    1set

    Advantages:

    MHW multi-head weighing machine

    10heads/14heads/20heads can be chose

    Adopt high precision and high accurate loadcell of famous brand, resolution is improved up to 2 decimal

    Program recovery function can reduce operation failures and support multi-segment weight calibration

    No products auto pause function can improve weighing stability and accuracy

    100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation

    Linear amplitude can be adjusted independently in the running

    Many languages available for global markets

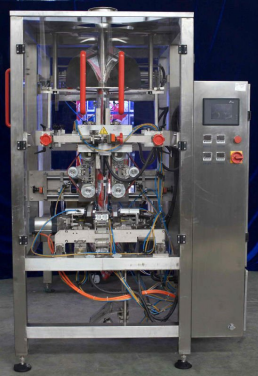

    WF520-W Automatic packaging machine

    Machine fully controlled by Siemens or Omron PLC&Touch screen

    Capacity can automatic display on touch screen

    Film transport system and horizontal jaw motion both be drived by Panasonic motor

    Change former by pulling out the braket safely quickly

    Photoelectricity detect film position on collar to correct film excursion

    Electric photo sensor inducting color code to control bag length

    Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting

    Independent temperature adjustment& code printing

    Various types of heating sealable laminated films namely PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil based can be run on the machine

    Application:

    Working Progress:

    Z type bucket elevator feed materials to hopper of the multi-head weigher →Multi-head weigher will weighing and filling materials at target weight automatically → VFS bagging machine realize bag-making, filling, date printing, sealing,  cutting, etc.→Take-off conveyor will convey out the finished bags automatically

    Technical information:

    Bag material:

    laminated roll film;

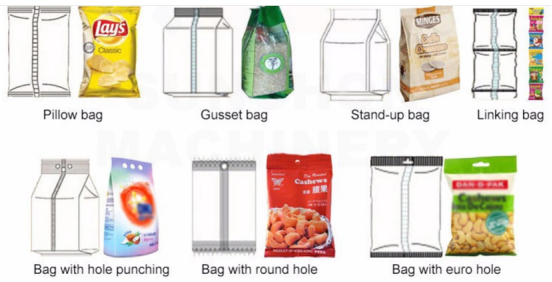

    Bag type:

    pillow or gusset type bag.

    Bag size:

    (50mm-280mm)*(70mm-180mm)(L*W);

    Weighing range:

    10g—500g;

    Packaging speed:

    100-120 bags/min(according the packaging weight and the bag size );

    Accuracy:

    0.5g-1g (according the packaging weight and the bag size );

    Power supply:

    AC380V, 3Phase, 50Hz, 10KW;

    Compressed air requirement:

    0.6M3/Min, 0.6MPa;
