Granule Packaging Machine

  • WF-LS6 Automatic Screw and Hardware Counting Packing Machine

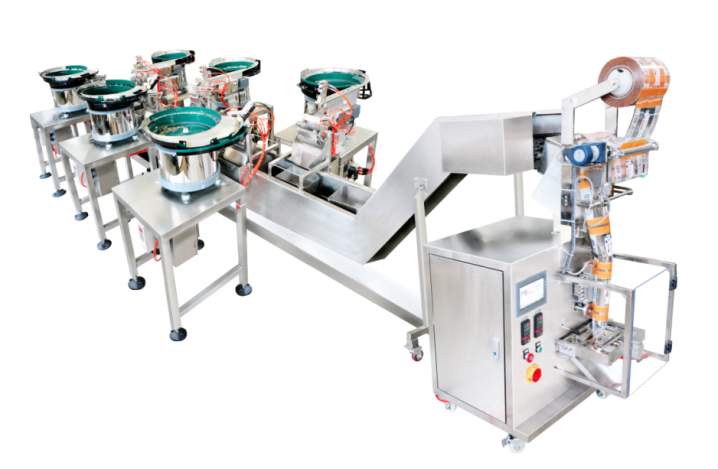

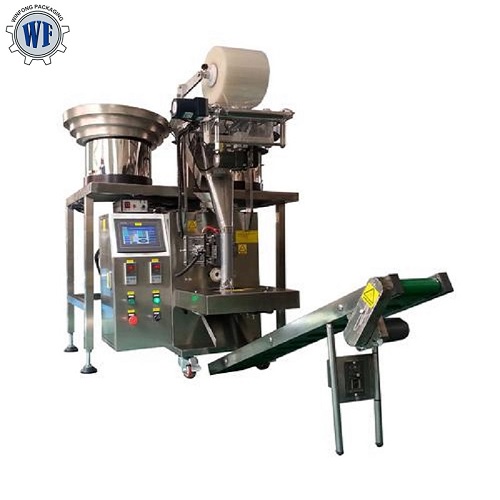

WF-LS6 Automatic Screw and Hardware Counting Packing Machine

WF-LS6 Automatic Screw and Hardware Counting Packing Machine

  • MOQ:1set
  • Original:China
  • Delivery time: 35 working days
  • Package:export standard wooden case
  • INQUIRY


  • Machine Introduction


    Constitute

    Number

    Description

    QTY

    1

    WF-60 automatic packing machine

    1

    2

    Vibration plate+Platform+ fiber and brackets+controller

    6

    3

    Trailer

    4.5m

    4

    Reject device

    5

    5

    Products conveyor

    1

    6

    Weight detector at the end

    1

    Application:

    1.It can be widely used in electrical, lighting, decorative hardware products subsidiary mounting screws, nuts, small pieces of plastic mixed packaging. Replace the prefabricated bag forming method greatly improves the efficiency for all screw applications widely used in corporate, special

    2.shape components can also be customized to customer requirements. The machine adopts microcomputer control, packaging process automatically.

    3.Screw automatic packaging machine equipment can achieve the automatic arrangement of materials, automatic counting, filling, sealing, packaging, printing labels, finished product conveyor,etc. The number of products need counting is easy to adjust , converting quickly .

    Operation flow:

    Material into vibration plate--- vibrating plate arranges the material and outputs it --- Counting by fiber---Fall into the trailer(the items that feeding manually will be filled in to the right trailer at the same time)---filling into packaging machine---Sealing

    Details

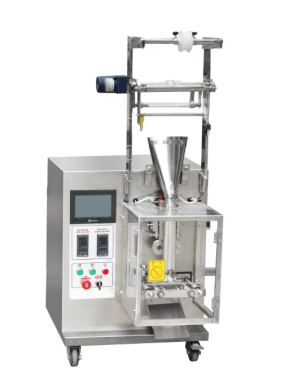

    WF-60 automatic packing machine


    Feature:

    *Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation;

    *precise positioning with servo film transporting system; excellent complete machine performance and nice packing;

    * minimize the loss with complete automatic warn protection function;

    * supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag ma

    * the way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.

    Technical Data

    Capacity5-50bag/min

    Bag Size:L40-200、(W40-100mm

    Max Film Width220mm

    Sealing Type: back seal

    Power1.2kw

    Net Weight200kg

    Voltage220V380V/50Hz

    Packing Materialpaper/PE,Polyester/aluminum foil/PE,nylon/polyethylene,tea filter paper,etc.

    Overall Size(L)800×(W)700×(H)1600mm

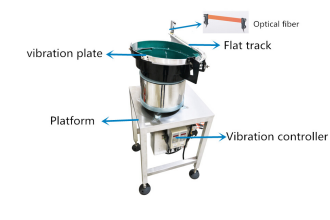

    Vibration plate+Platform+China made fiber and brackets+controller


    .Vibration bowl :

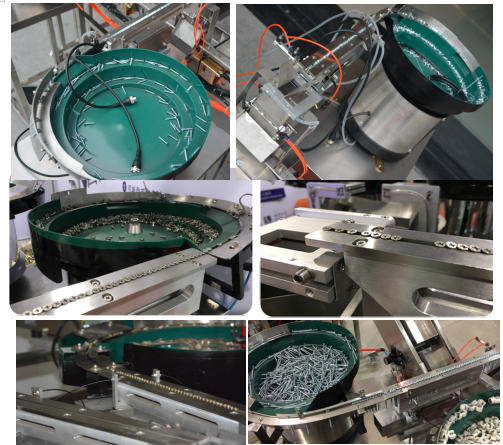

    l Flat track vibration plate for screw (CNC Machining)


    Remarks 2) Only Suitable for screw , and if the tolerance of the screw is 2cm, it need to fit different vibration plate .

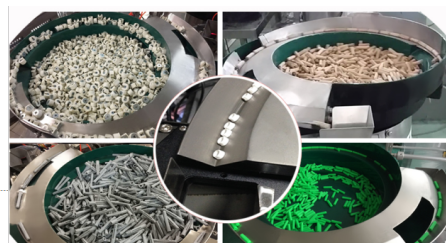

    l V-Type design vibration plate (CNC Machining)

    1) Vibration plate will be designed to V type as a universal type vibration plate, suitable for all types of materials, high compatibility,  can meet  more than 90% different shapes accessories packaging requirements on the market.

    2) Vibration plate lined, every vibration plate is equipped with a separate switch, the number of feeding material on each vibration plate can be set separately, the size of the vibration plate will be produced according to the packaging materials .

    3) Ensure the last material in the vibration plate can be smoothly out

    4)  All parts used in CNC machining

    5)  Using import steel plate sk7

    6)  Imported PU rubber (optimal force glue) can use one year, domestic rubber only can use 3 months.

    7)  Base (casting) is relatively heavy, pay more attention to details , the operation is more stable

    8)  Vibration plate and the row are using imported fangsheng screws

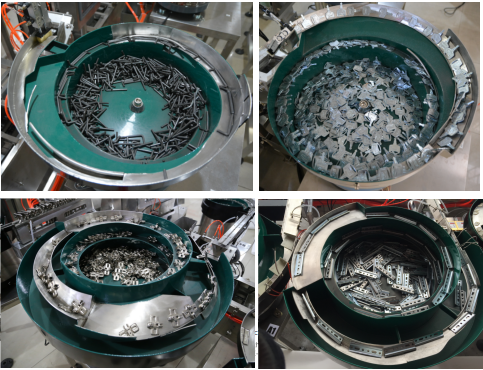

    l Special design vibration plate for special shape products (CNC Machining)

    Remarks 3) Different shape products will have different design of the vibration plate . If the budget is not so much , wed like to suggest to feed the products manually .

    Platform

    The size of the platform depends on the size of the vibrating plate

    The height of the platform depends on the host height

    Installed with big feet, more stable


    China fiber and brackets

    Area space: 40mm

    Sensitivity: 10 ms



    Controller

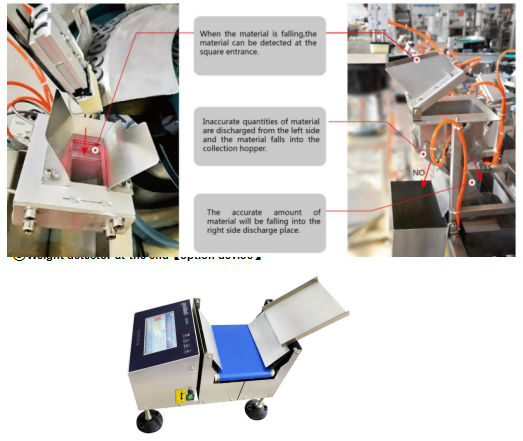

    Reject device option device

    -If the quantity is wrong, it will be automatically kicked out to the unqualified area, and the vibrating late will be counted again.

    -If the material is low, the device will automatically wait for the material to come in before packaging.

    Weight detector at the endoption device

    l SimonPAK weighing controller, 7-inch OLED highlights in English and Chinese; ²

    l SimonPAK high precision sensor.

    l Display: Touch screen.

    l Motor: brushless motor, power 100W;

    l Frame material: aluminum alloy profile + stainless steel shield;

    l Maximum weight: 500g.

    l Display accuracy ±0.1g;

    l Belt speed: 400 m / min

    l Weighing conveyor belt 220mm*150mm (wheelbase/bandwidth).

    l Adjustable height 300±50mm;

    l Industrial embedded computers and real-time operating systems;

    l 3 weight zones: overweight, normal, and underweight (4 sections of sorting function need external structure and independent configuration);

    l Power supply voltage 220VAC, 50HZ

    l Note: Weighing accuracy refers to the accuracy of 3 levels under certain conditions (vibration, interference, etc. directly related to the site environment)


    Products conveyoroption device

    Height range is 45CM

    Feeding speed  30m/minute

    voltage       220V/45W

    The machine can send the packed finished bag to after-package detecting device or packing platform.

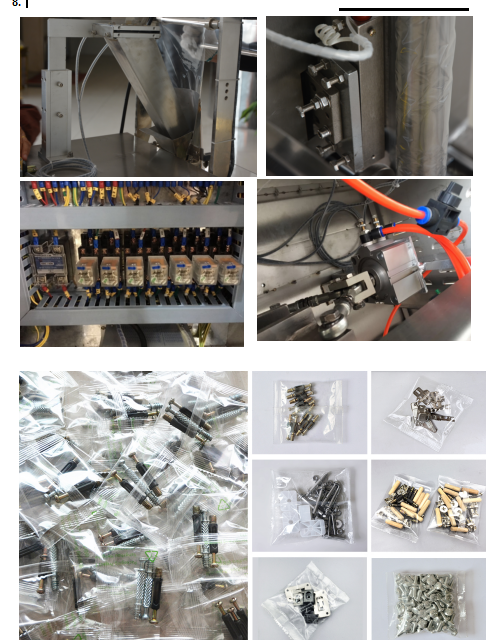

    Machine detailed picture& Sample bags
