Granule Packaging Machine

  • WF60T Automatic Triangle Bag Packing Machine

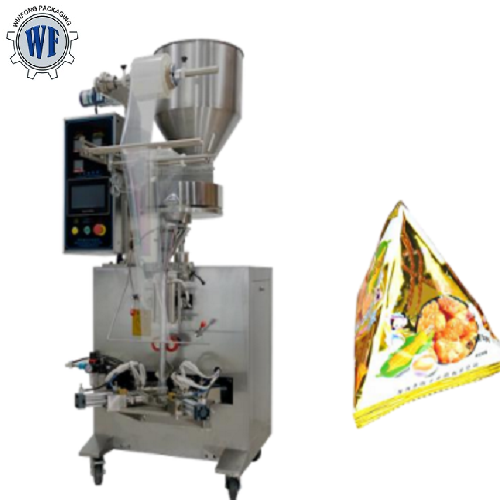

WF60T Automatic Triangle Bag Packing Machine

WF60T Automatic Triangle Bag Packing Machine

  • MOQ:1set
  • Original:China
  • Delivery time:15 working days
  • Package:export standard wooden case
  • INQUIRY

Constitute:

The complete packing line includes:

Quantity

1. Cup filler

2.Triangle bag packing machine

1set

1set

Advantages:

1

The machine is suitable for  the food, medicine, chemical industry, cosmetics industry of particles of measurement packing.

2

All the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

3

The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

4

Packing materialBOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

5

Sealing Type:triangle bag

Application:


Working Progress:

Cup will weighing and filling materials at target weight automatically → VFS bagging machine realize bag-making, filling, date printing, sealing,  cutting, etc.


Technical parameters:

Model

WF60T

Capacity

30-60bags/min

Measuring range

1-100g

Bag size

L30-170、(W30-100mm

Sealing type

Triangle bag

Power

1400w

Net weight

400kg

Voltage

220V/50-60HZ380V/50HZ

Packing material

aper/PE,Polyester/aluminum foil/PE,nylon/polyethylene,tea filter paper,etc.

Overall size

L900×W1100×H1590mm

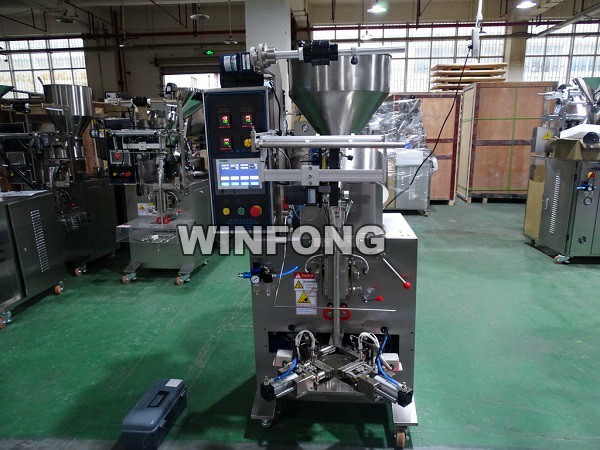

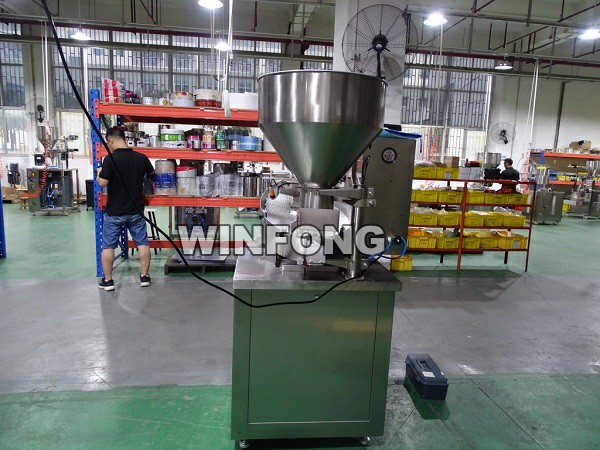

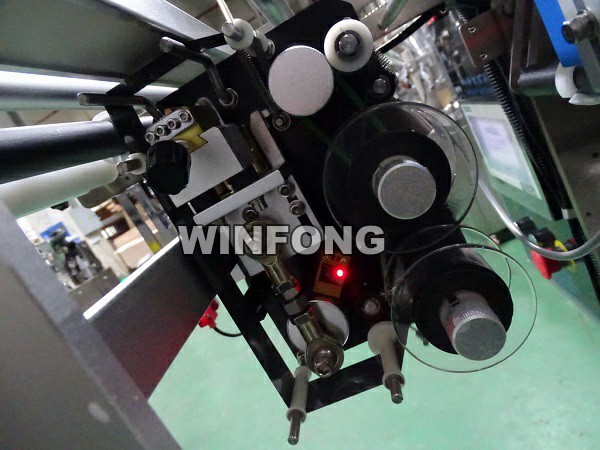

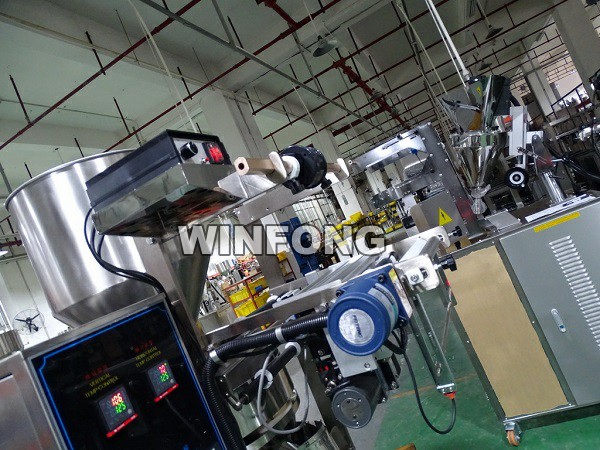

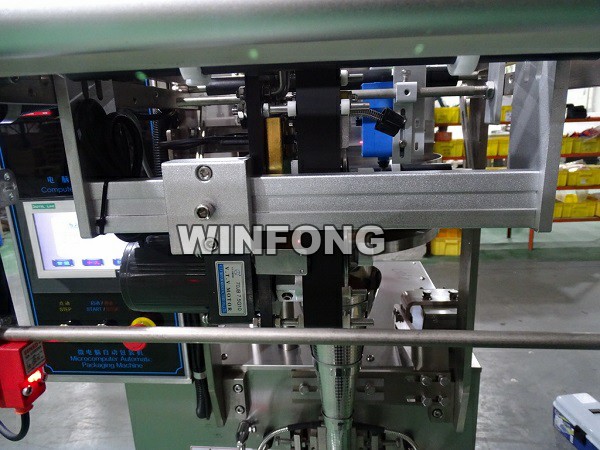

Machine Photo:



Our company


  • Hefei Winfong Packaging Machinery Co., Ltd. is one of the fastest growing packaging machinery factories in Hefei, China, specialized in the research, design, manufacture, marketing and service of packaging machines which are widely used in different fields such as food, chemicals, medicines, beverage, light industry, etc. WINFONG has modern workshops, a professional R&D team and advanced machining equipment to meet your demands within the shortest time. We now have already exported our products to more than 30 countries, such as America, Canada, Mexico, Australia, Germany, Spain, Ukraine, Russia, Japan, India, Indonesia, Thailand, UAE, Saudi Arabia, Pakistan, Israel, Nigeria etc. WINFONG sets "Integrity, Innovation, Teamwork & Ownership, and Perseverance" as company's core values. Welcome to contact us, we stand ready to serve you!

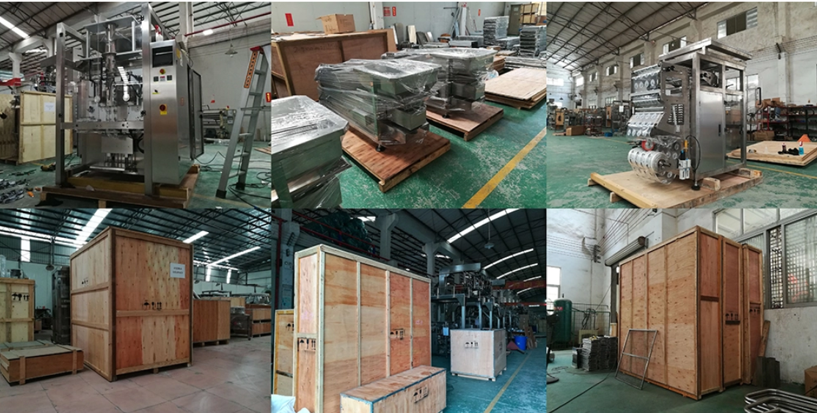

Packaging&Shipment


-After machine is ready, we will clean it, wrapping by film and pack it by export standard plywood cases.

-We can ship machines from any sea port in China.

-We will offer documents to customer for cleaning customer, includes bill of lading, commercial invoice, packing list, certificate of origin and other documents customer need.
